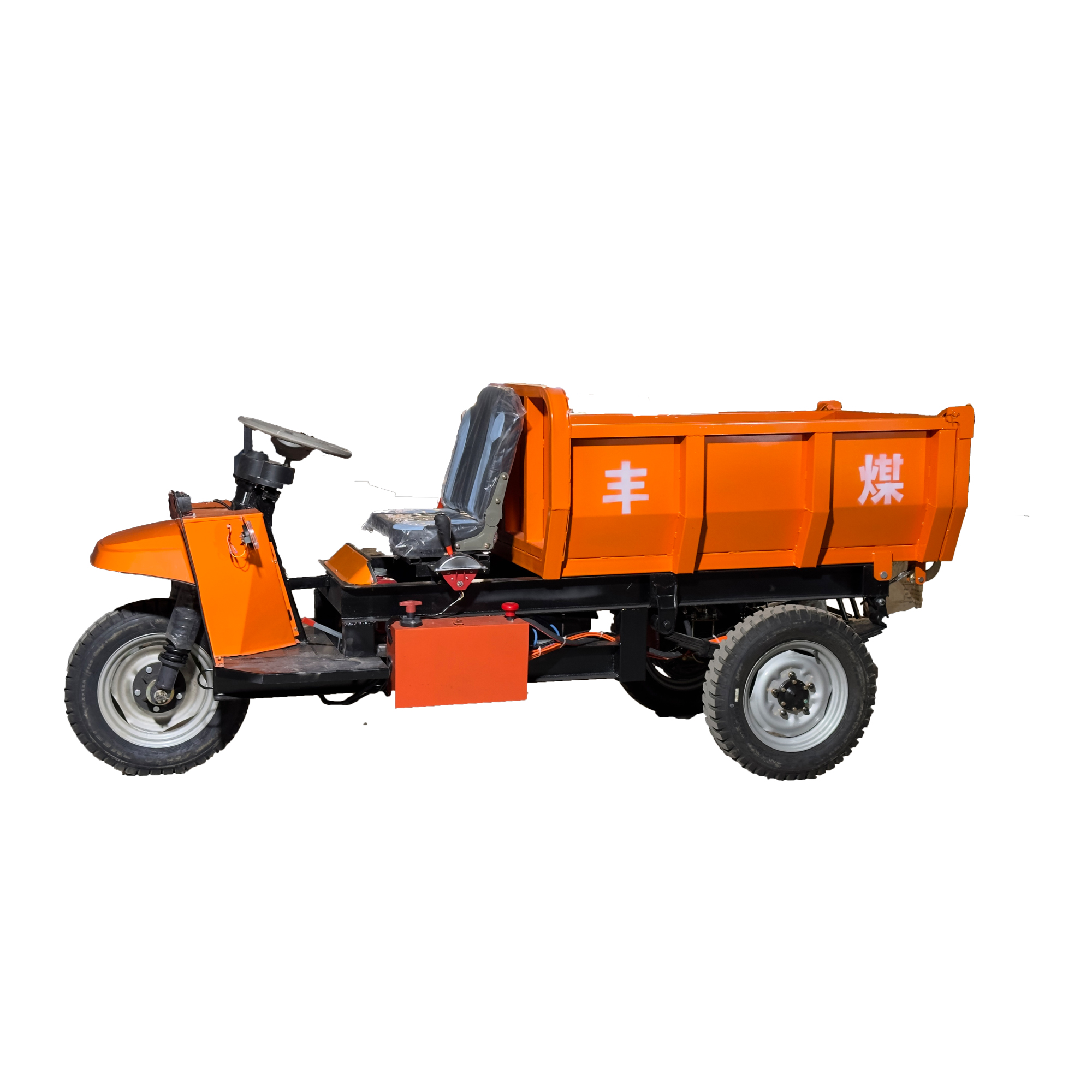

One Ton Ore Specific Electric Tricycle For Mining
1. The vehicle adopts high-tech technologies such as automatic reverse, intelligent charging, brake power-off, overcurrent and undervoltage protection;
3. No noise, low energy consumption, strong applicability;
4. Using dedicated batteries, the motor performance is reliable, safe and durable; 5. It has a brake power-off function.
| Category | Parameter | Category | Parameter | Category | Parameter |
| Product Model | DBY1000 | Rear Axle Type | Heavy Low-Speed Oil Brake Rear Axle | Self Dumping Mehod | Electric Hydraulic Dump Truck |
| Dimensions(length*width*height mm) | 3000*1200*1280 | Working Voltage | 60V | Tire Size | 400-12/500 |
| Container Size(length*width*height mm) | 1600*1200*400 | Battery Capacity | 5 Maintenance Free 58A Dedicated Bateres | Vehicle Color | Engineering Red |
| Container Thickness | 3MM | Load Capacity(kg) | ≤1000 | ||
| Motor Model | Brushiness 2200W | Normal Working Hours | 6-8H | ||
| Controller | High Power Dedicated Controller | Maximum Speed(km/h) | ≤25 |
For over twenty years, we have been at the core of the mining and tunneling industry, not as a general vehicle manufacturer, but as professional engineers building robust and reliable drilling machinery. We are aware of the terrain, dust, and the ruthless requirements for transporting heavy materials underground and in enclosed spaces. This deep-rooted expertise is now being introduced into our latest solution: the ore specific electric tricycle series heavy-duty electric mining tricycles, designed from scratch for the most challenging transportation tasks.
The ore specific electric tricycle series aims to replace traditional diesel powered carts and small dump trucks in environments where efficiency, cost, and air quality are important. Its design purpose is to transport bulk ore, waste rock, and building materials in factories, mining tunnels, subway projects, and other industrial sites.
1. Hydraulic lever: using lever principle for automatic unloading, convenient and fast.
2. Battery: Safe, long driving time, low power consumption.
3. Tire: High quality rubber, strong grip, wear-resistant and durable.
4. Body structure: Adopting integral welding technology, safe and reliable.
Mining electric tricycles are equipped with high-power brushless motors, maintenance free batteries, and strong climbing ability., And configure a hydraulic self unloading system. Against the backdrop of soaring oil prices and vigorously developing a low-carbon economy, it is an ideal transportation tool for transporting bulk materials in factories, mines, tunnels, subway construction, and other areas.

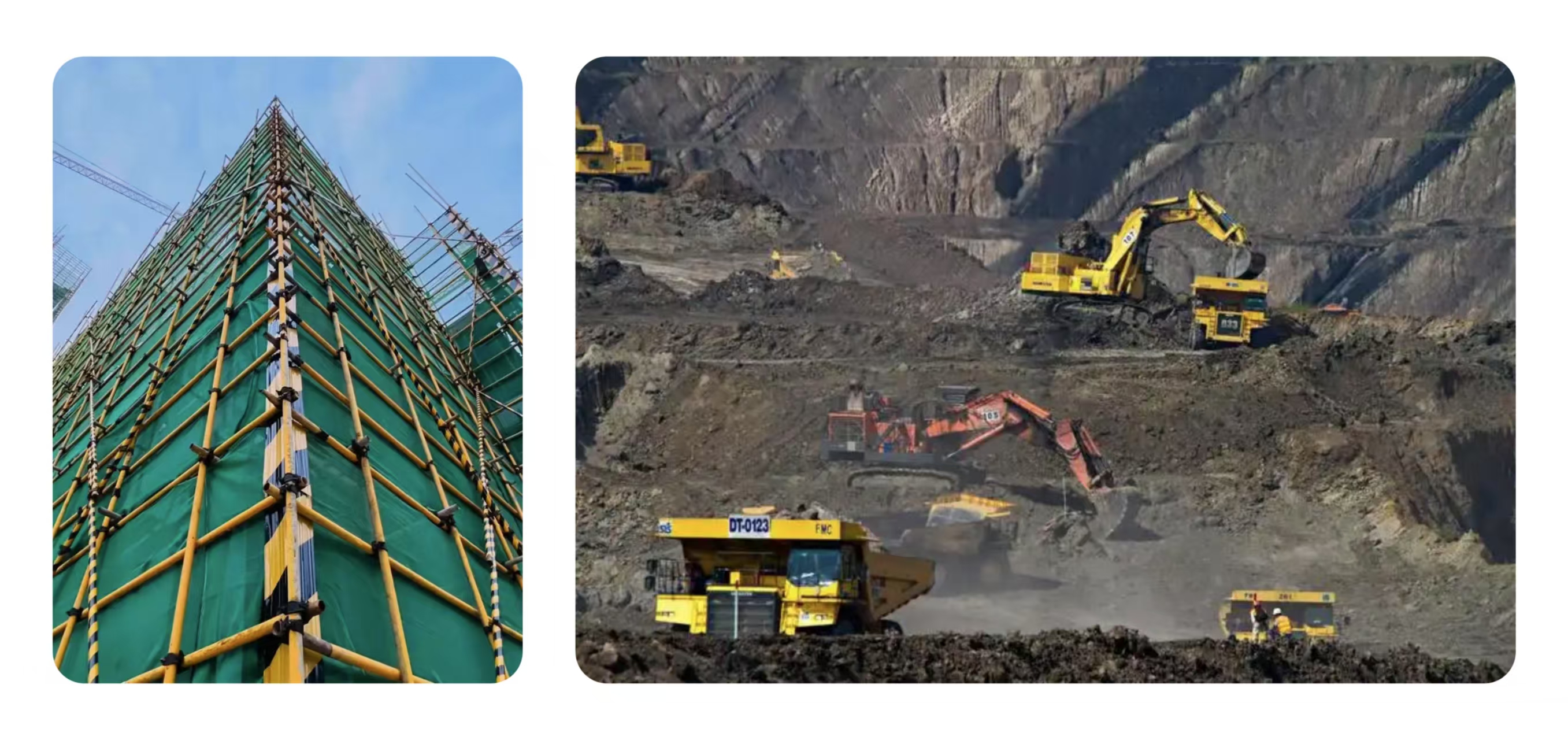

Widely applicable: can be used in mines, warehouses, factories, construction sites, road construction, etc.
Core Engineering: Built for the Task
We did not modify ordinary road vehicles; We have designed a tool for industry. The core of the ore specific electric tricycle is its high torque, brushless DC motor, specially configured for low-speed, high-power output. This provides excellent traction and strong climbing ability on steep and uneven slopes where other vehicles stall. The power source comes from sealed deep cycle lead-acid or optional lithium battery packs. These maintenance free battery systems eliminate daily liquid checks and are designed for simple replacement or fast charging cycles to maintain operation.
The most critical feature is the integrated hydraulic dump system. Through single lever control, the heavy-duty steel cargo compartment can be smoothly lifted to a 45 degree angle, ensuring quick and complete unloading of viscous and heavy materials. The chassis is reinforced with high-strength steel, and the braking system combines regenerative braking with heavy-duty mechanical braking to achieve controlled parking on slopes.
Tangible transformation: before and after the use of ore specific electric tricycles
For many construction projects, transitions are obvious:
Before using electric tricycles specifically for mining, the continuous rumbling sound and smoke of diesel engines filled the enclosed work area, requiring expensive ventilation. Operators need to cope with rising fuel costs, frequent engine maintenance, oil and filter changes. Noise limits communication, and the waste heat inside the tunnel becomes unbearable.
After using the ore specific electric tricycle: the ore specific electric tricycle operates in a nearly quiet environment with zero emissions on site. This greatly improves the air quality inside the tunnel and reduces ventilation costs. The operating cost per ton of transportation has significantly decreased - electricity is much cheaper than diesel, and the maintenance of the transmission system requires much fewer moving parts. No need to store or handle fuel on site. The operator reported that visibility is higher, control is easier, and the working environment is cleaner and cooler.
Our commitment: to have relevant professional knowledge in rock drilling construction
As a factory dedicated to professional rock drilling equipment, we understand durability and productivity. The ore specific electric tricycle has the same design concept: simple, sturdy, and durable. This is a reasonable extension of our commitment to improving underground work efficiency and sustainability.
In the era of fluctuating energy prices and global promotion of clean operations, electric tricycles specifically designed for mining are not just a substitute; This is a smarter and more efficient material transportation option. This is different from ordinary electric tricycles; This is about designing for mines.
Contact us to learn how mineral specific electric tricycles can change your transportation costs.
GUARANTEED SAFE & SECURE CHECKOUT
· Tracking order traceability.
· On-time delivery guarantee
· 100% qroduct qualification rate
Delivery for :
FAQ：
A: We are factory. And we have ourselves trading company.2: Warranty terms of your machine?
A: 3 months for the core components and technical support according to your needs.3: Will you provide some spare parts of the machines?
A: Yes, we have most of the spare parts in stock.
4: Which payment term can you accept?
A: 30% T/T in advanced, 70% T/T before the delivery.
5: Can you accept OEM orders?
A: Yes, we have high specialized and rich experienced team, OEM orders are highly welcome.
6: Which trade term can you accept?
A: FOB, CIF, CFR, EXW, CPT, etc.
We are one of the famous rock drilling jack hammer manufacturers in China, specializing in the production of rock drilling tools with exquisite workmanship and superior materials, manufactured in strict accordance with industrial quality standards and CE, ISO9001 quality management system certification. These drilling machines are easy to install, operate and maintain. The drilling machines are reasonably priced and easy to use. The rock drill is designed to be sturdy and durable, not easily damaged, with a full range of rock drill accessories
