B37 Rock Drill Air Pick Used For Mining Operations Featured Image
  • B37 Rock Drill Air Pick Used For Mining Operations
  • B37 Rock Drill Air Pick Used For Mining Operations
  • B37 Rock Drill Air Pick Used For Mining Operations
  • B37 Rock Drill Air Pick Used For Mining Operations
  • B37 Rock Drill Air Pick Used For Mining Operations

B37 Rock Drill Air Pick Used For Mining Operations

Short Description:

The Fenggao B37, a pneumatic tool designed specifically for heavy-duty operations, has become the preferred choice for many construction workers due to its excellent power output and efficient crushing ability. This wind pick adopts advanced pneumatic technology and can generate a striking frequency of up to 1050b. p.m. It can quickly crush both concrete and rock, with astonishing efficiency.


  • Product Model: B37
  • Piston Diameter (mm): 44
  • Piston Stroke (mm): 142
  • Strike Frequency (b.p.m.): 1050
  • Weight (kg): 17
  • Length (mm): 580
  • Tracheal inner diameter (R/min): 19
  • Drill tail size (mm): 30*87
  • Gas consumption (m ³ Min): 1.8
  • Inlet size (P/T): 3/4
    • Download as PDF

    Product Detail

    rock drill

    Product Tags

    B37 AIR PICK

    B37 air pick adopts the technology of Japan's Toko Air, and is a small breaking tool powered by compressed air.

    B37 pneumatic breaker is a tool powered by compressed air. The compressed air is distributed to both ends of the cylinder by turns, so that the hammer body reciprocates and impacts the steel brazing tail, chiseling the steel brazing into the concrete layer and breaking it into pieces. B37 Breake features light weight, simple structure, features, large impacting force, high speed and efficiency. The products are widely used in construction of mines, bridges roads and so on.

    The ideal tool for foundation construction

    B37 Handheld Jack Hammer Rock Breaker Hammer

    More horsepower, higher efficiency and longer life

    Extra large. Extra thick. Crushing work of extra hard objects

    Your good helper

    LEARN MORE

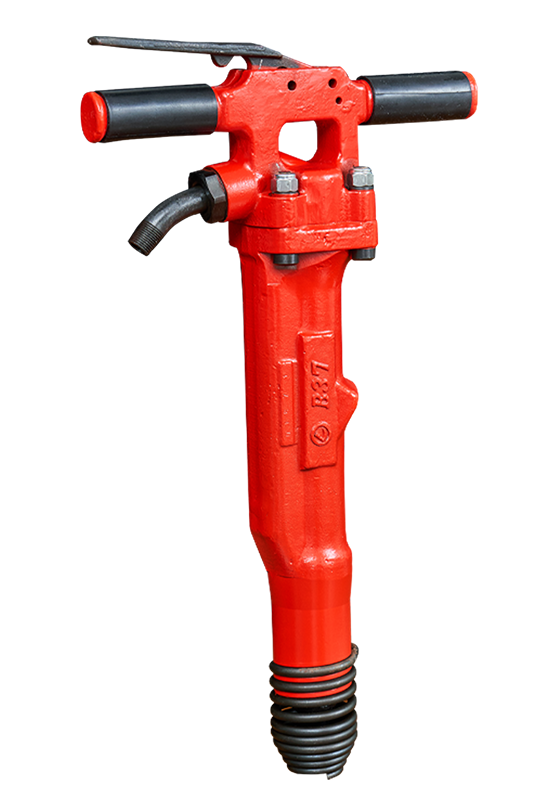

    pneumatic breakers tpb60 tpb90 tpb40 TCA7 tcd20 B87C B37

    Main parameters of air pick products

    Piston Diameter 44mm
    PISTON STROKE 142mm
    Percussive Frequency B.P.M 1050
    Air Tube Size 19mm
    Model B37
    Net Weight 17kg
    Total length 580mm
    Air consumption 1.8
    Trachea size 19
    Bit Head Size R30*28
    Product Keywords air pick breaker pneumatic hammer,tire pneumatic splitter air pick hammer,hot air pick comb

    FAMOUS BRANDS

    未标题-2 拷贝

    SOLD WORLDWIDE

    IDEAL CRUSHING TOOLS

    V

    S

    TPB-60 Air pick Before crushing vs after crushing

    ROCK DRILL HAMMER

    BEFORE BREAKLNG

       TPB-60

    Compressed air-powered crushing tools can efficiently complete the crushing work of reinforced concrete, rock, etc.

    other pneumatic tools

    BROKEN IN PIECES

    AIR PICK

    Is the mine, bridge dyeing, road, municipal construction The ideal tool for the construction of base boron projects

    pneumatic hammers

    AFTER BREAKAGE

    SHENLI

    Especially suitable for for extra large. Extra thick. Crushing of extra hard objects

    OUR ADVANTAGES

    Safe and reliable

    Shenli pay attention to the details of the user experience for the majority of customers to provide the most perfect quality assurance

    High quality material

    The products are forged with super hard steel, quality first, customer first. Innovation and quality oriented Strive to be the pioneer of the industry!

    One machine for multiple uses

    Especially suitable for oversized. Extra thick. It is an ideal tool for the construction of mining, bridge dyeing, road and municipal infrastructure projects.

    Easy inspection and repair

    Product horsepower, higher efficiency, longer life, easy access, universal accessories

    Powerful power

    Crushing tools powered by compressed air, can efficiently complete the crushing work of reinforced concrete, rock, etc.

    Factory direct sales

    The company introduces the technology of foreign production enterprises such as Epiroc and Furukawa of Japan. We have become a large scale and high reputation pneumatic mining machinery manufacturer in China.

    pneumatic breakers tpb40 tpb60 tpb90 B37..AIR PICK

    B37 AIR PICK

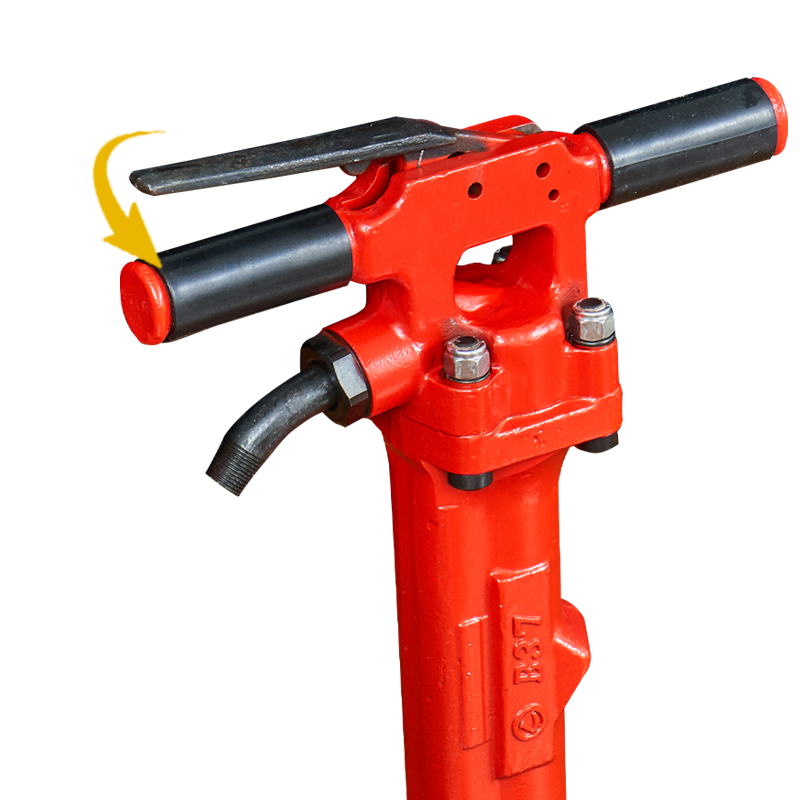

    Details show - Trigger

    B37 AIR PICK

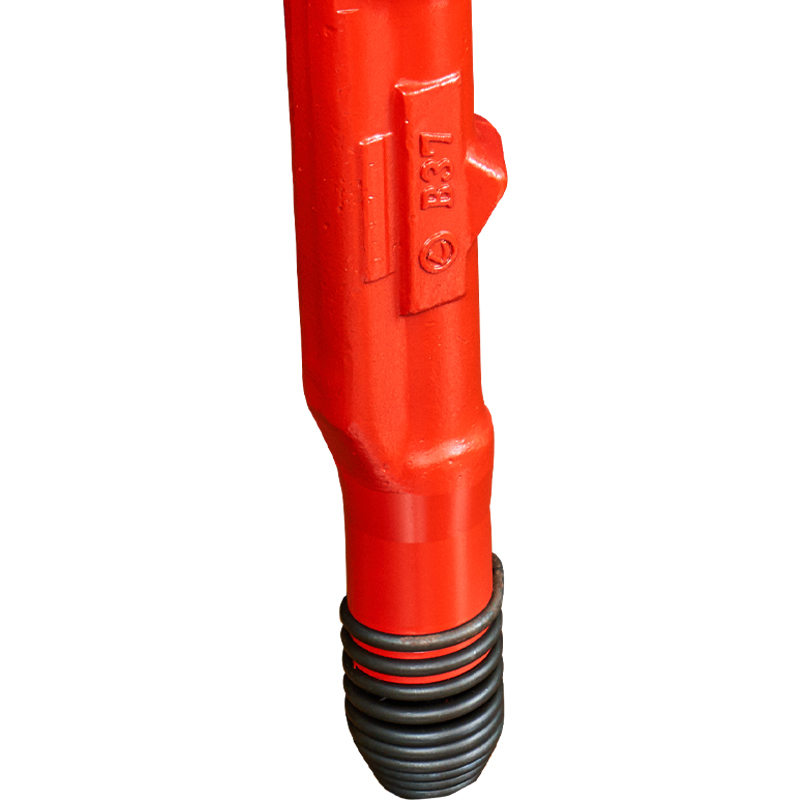

    Details show-Cylinder

    AIR PICK pneumatic breakers tpb40 tpb60 tpb90 B37....
    pneumatic breakers tpb40 tpb60 tpb90 B37..AIR PICK B37

    B37 AIR PICK

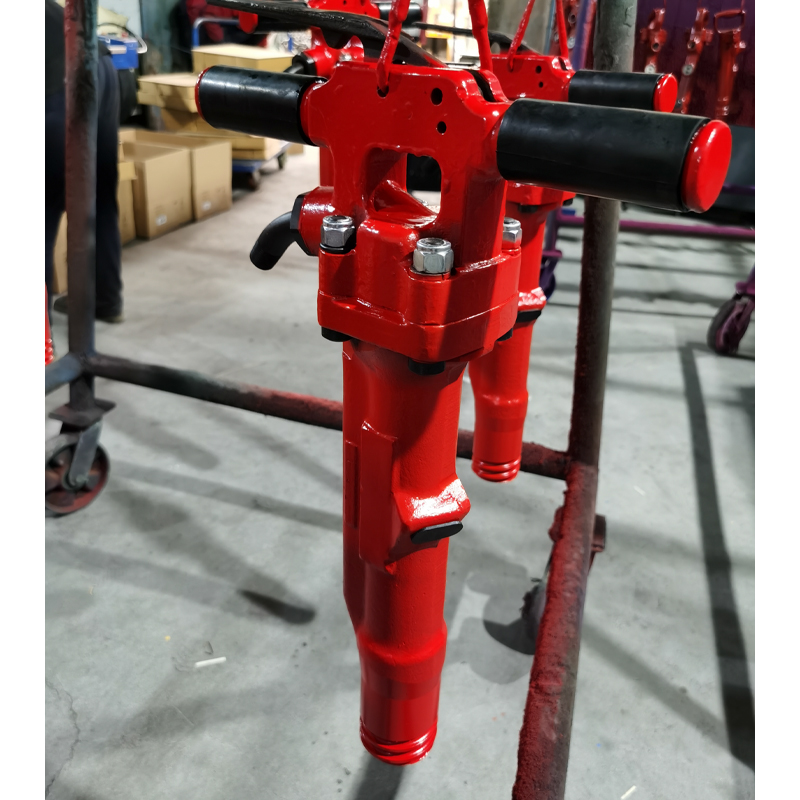

    Details show - Spray painting assembly

    B37 AIR PICK

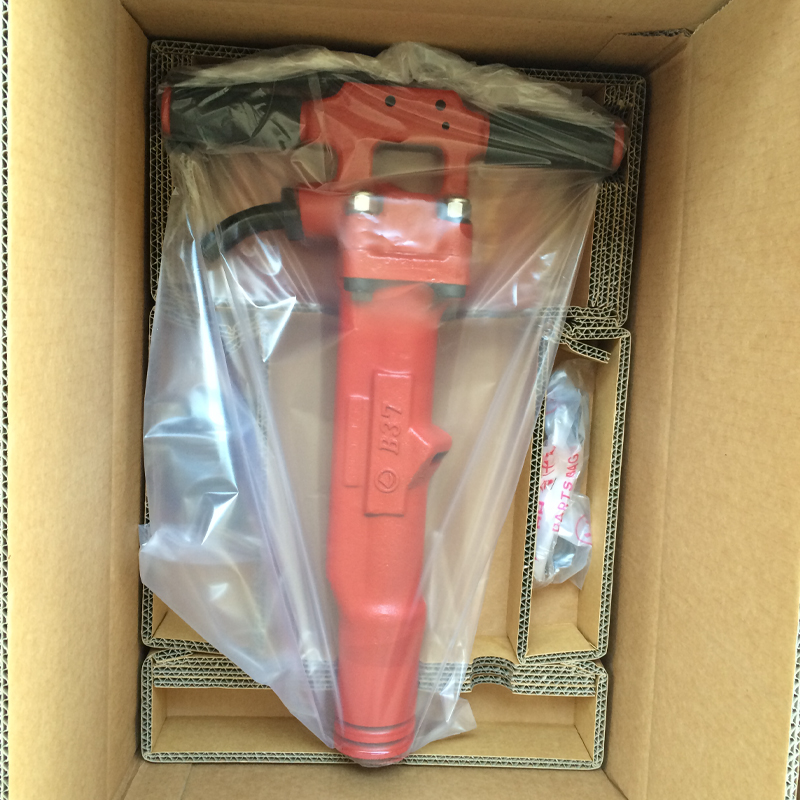

    Details show -Packaging

    pneumatic breakers AIR PICK ..tpb40 tpb60 tpb90 B37
