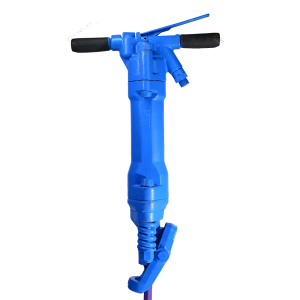

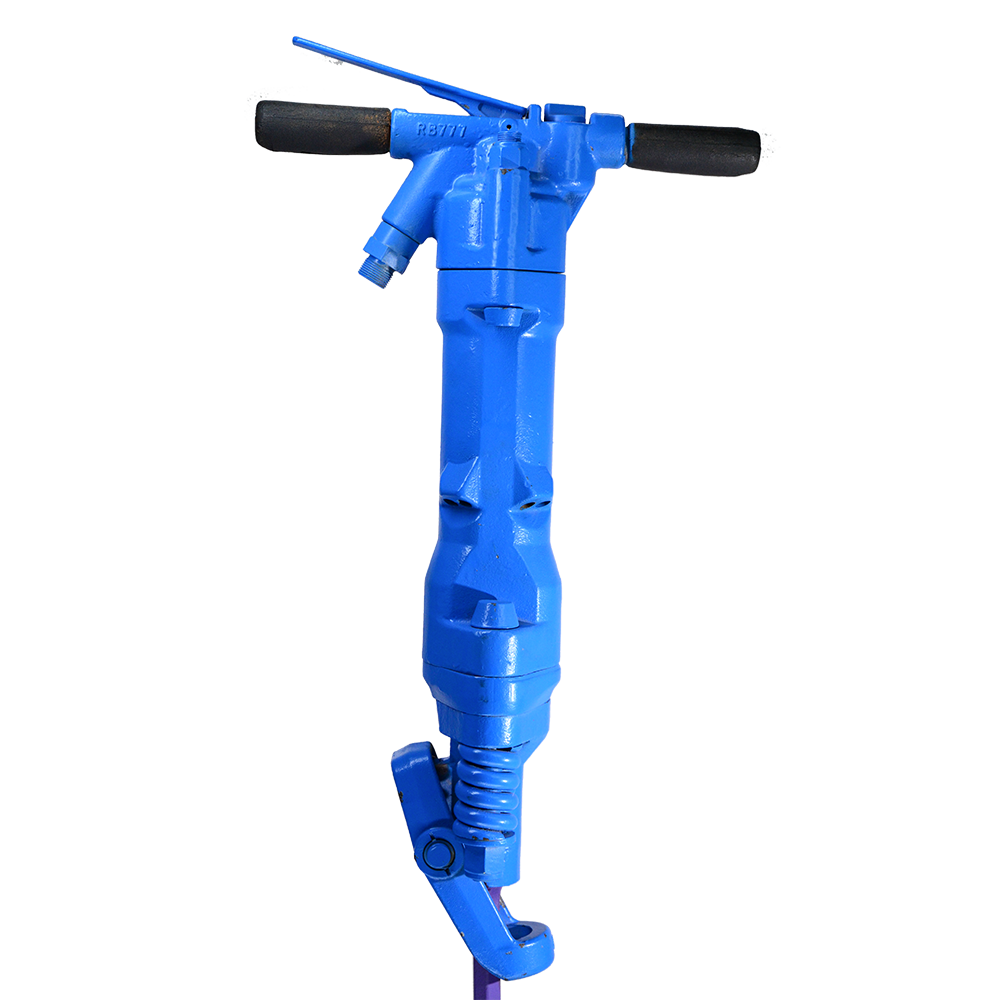

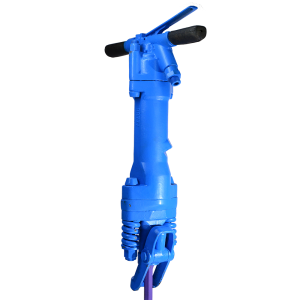

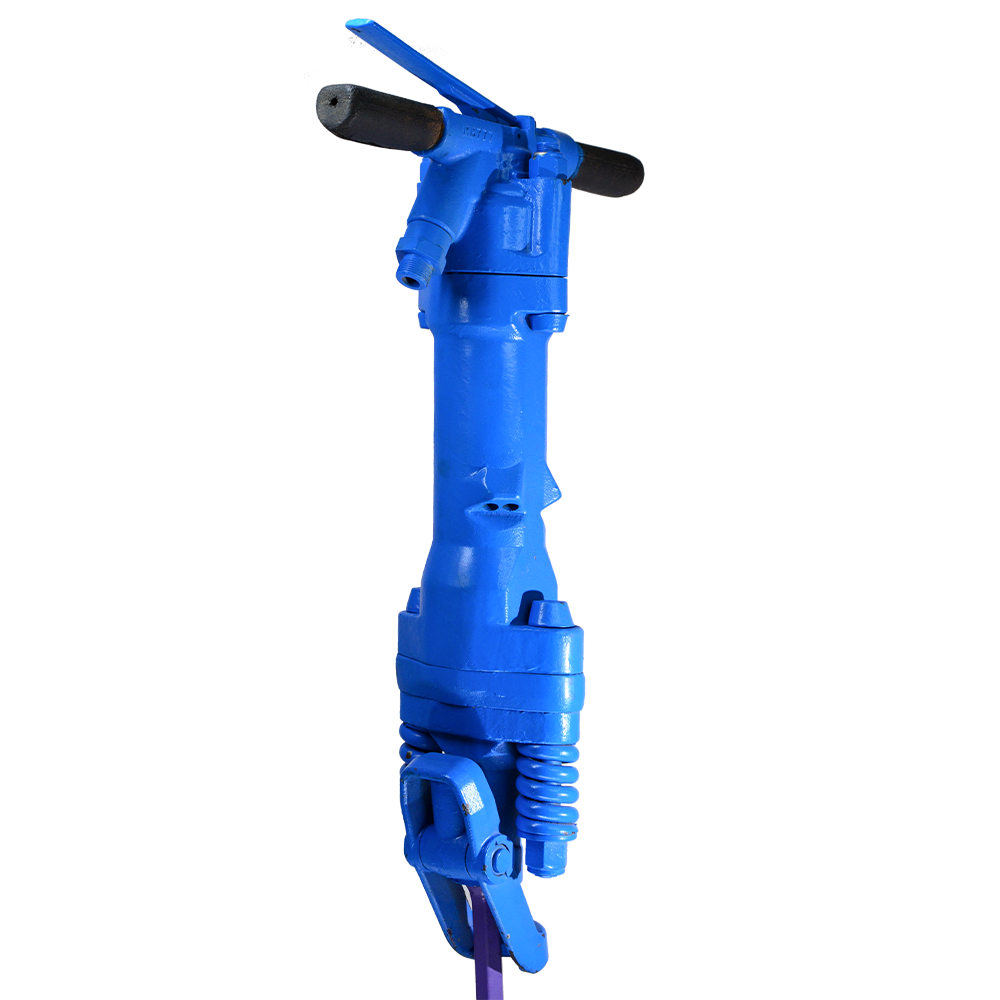

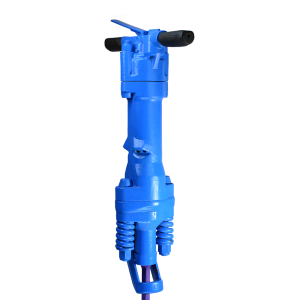

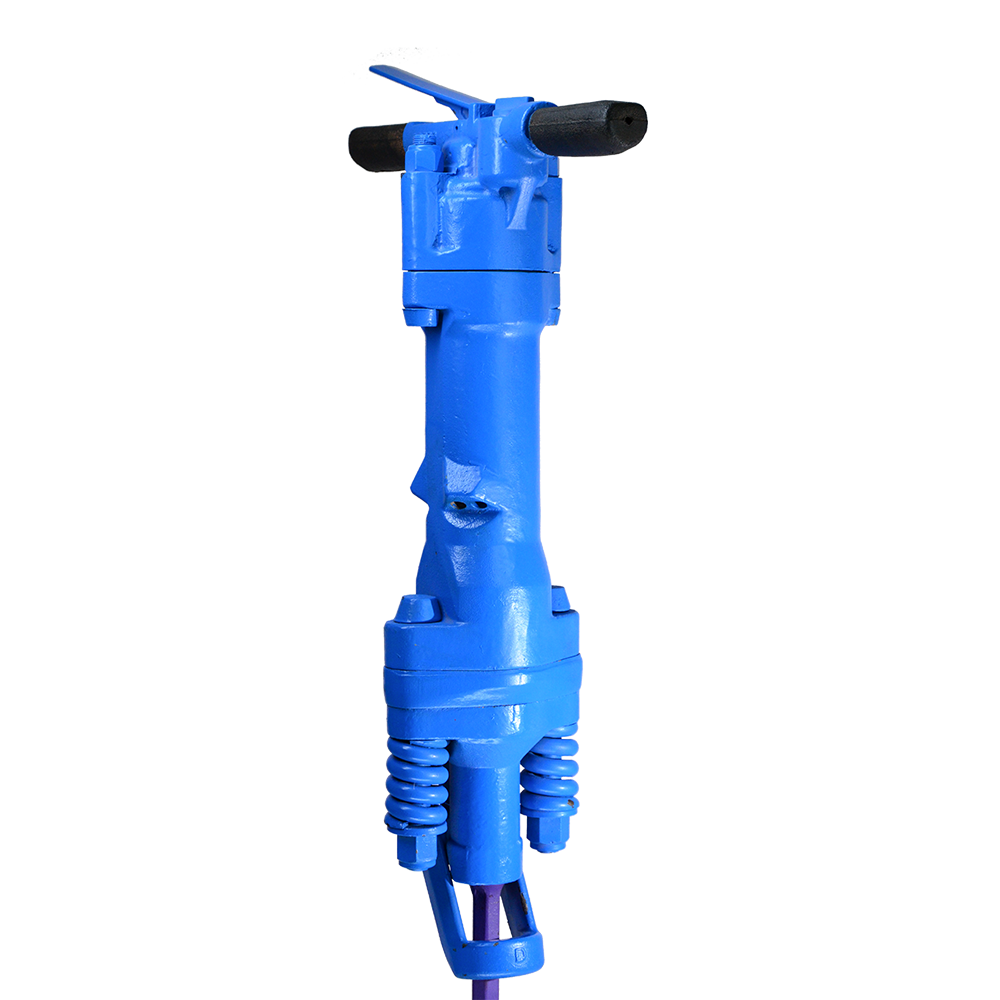

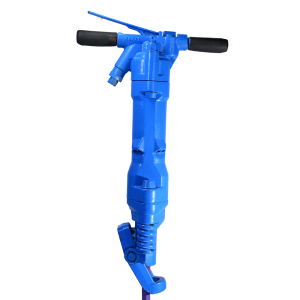

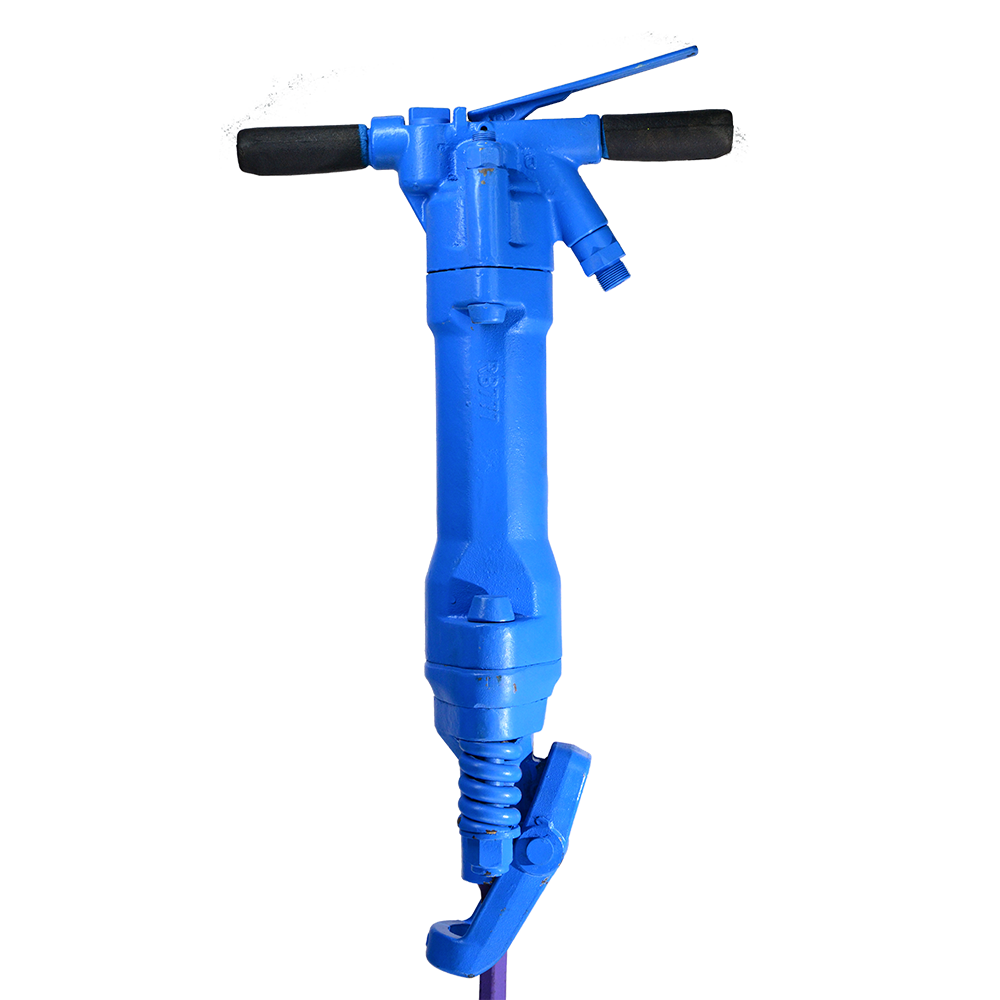

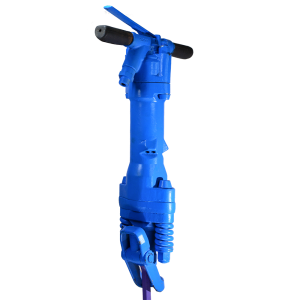

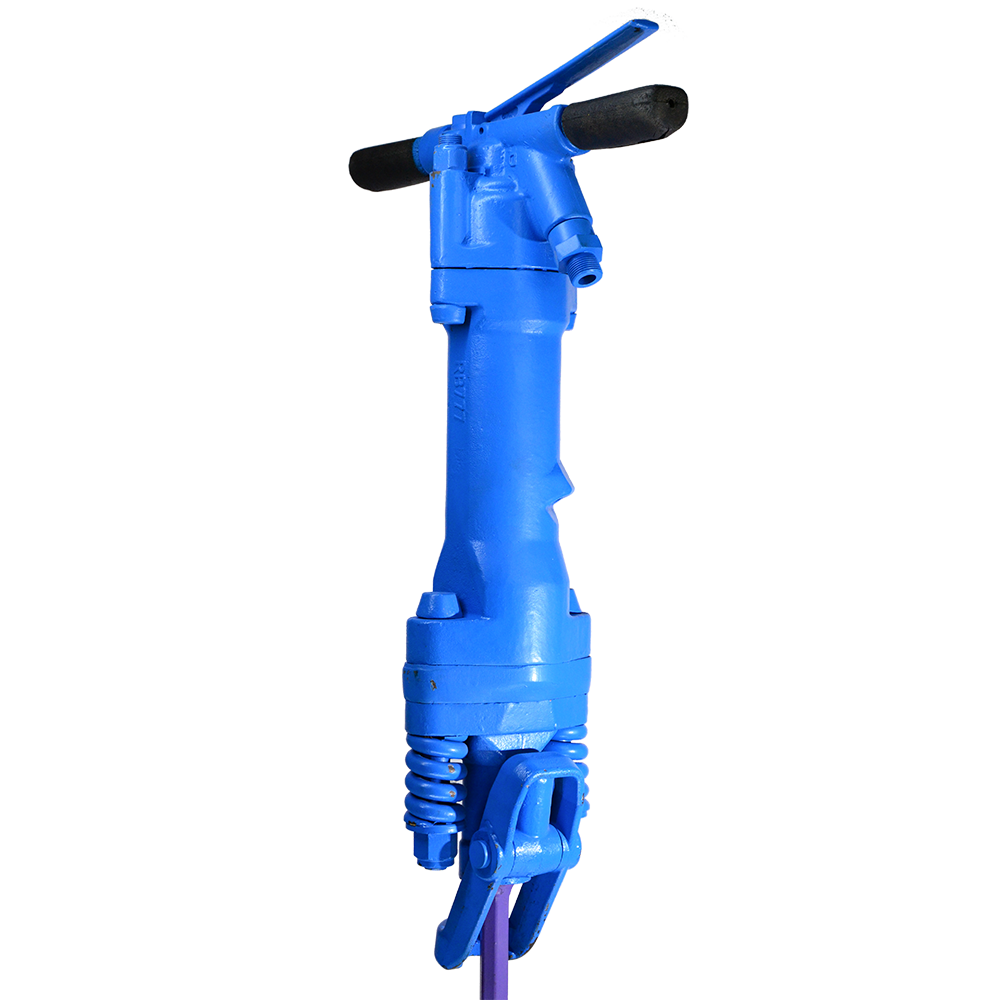

RB777 SL80 Pneumatic paving breakers Jack hammer Pneumatic rock drills

Short Description:

RB777 pneumatic picks are used to build roads, install works of broken concrete and other hardens Hard object tools, the machine structure is simple, high efficiency, easy to operate,As long as the rod installed, connected to the air source, you can work, is broken hard The ideal tool for the body.


  • Model: RB777
  • Piston Diameter: 57 mm
  • Piston Stroke: 189 mm
  • Percussive Frequency: 18.3 Hz
  • N.W.: 37 kg
  • Length: 733 mm
  • Working Air Pressure: 0.63 Mpa
  • Air Tube Size: 19mm
  • Bit Head Size: R32×152 mm
  • Air Lnlet Size: 3/4 mm
  • Oil Feeder: 30 ml
  • Product Detail

    rock drill

    Product Tags

    Product description

    RB777 pneumatic picks are used to build roads, install works of broken concrete and other hardens Hard object tools, the machine structure is simple, high efficiency, easy to operate,As long as the rod installed, connected to the air source, you can work, is broken hard The ideal tool for the body.

    RB777 air pick an applicable scope

    1、Coal mining in coal mines, planning the foot pit of the column, opening the ditch;

    2、Mining soft rock;

    3、Breaking concrete, permafrost, and ice in construction and installation projects;

    Function

    High Power High Productivity

    Long piston stroke provides superior impact energy.

    High Durability Easy Maintenance

    Reinforced cup retainer for high durability

    Replaceable bushing to protect wear of cylinder.

    Simple structure for less maintenance

    Main parameters of air pick products

    Weight
    37 kg
    Length
    733 mm
    Piston Diameter
    57 mm
    Working Pressure
    0.63 Mpa
    Impact Frequency
    18.3 Hz
    Air Pipe Inner Diameter
    19 mm
    Air Consumption
    34 L/s
    Oil Lubricator Capacity
    30 ml
    RB777 Product Specifications

    OUR ADVANTAGES

    Safe and reliable

    Shenli pay attention to the details of the user experience for the majority of customers to provide the most perfect quality assurance

    High quality material

    The products are forged with super hard steel, quality first, customer first. Innovation and quality oriented Strive to be the pioneer of the industry!

    One machine for multiple uses

    Especially suitable for oversized. Extra thick. It is an ideal tool for the construction of mining, bridge dyeing, road and municipal infrastructure projects.

    Easy inspection and repair

    Product horsepower, higher efficiency, longer life, easy access, universal accessories

    Powerful power

    Crushing tools powered by compressed air, can efficiently complete the crushing work of reinforced concrete, rock, etc.

    Factory direct sales

    The company introduces the technology of foreign production enterprises such as Epiroc and Furukawa of Japan. We have become a large scale and high reputation pneumatic mining machinery manufacturer in China.
