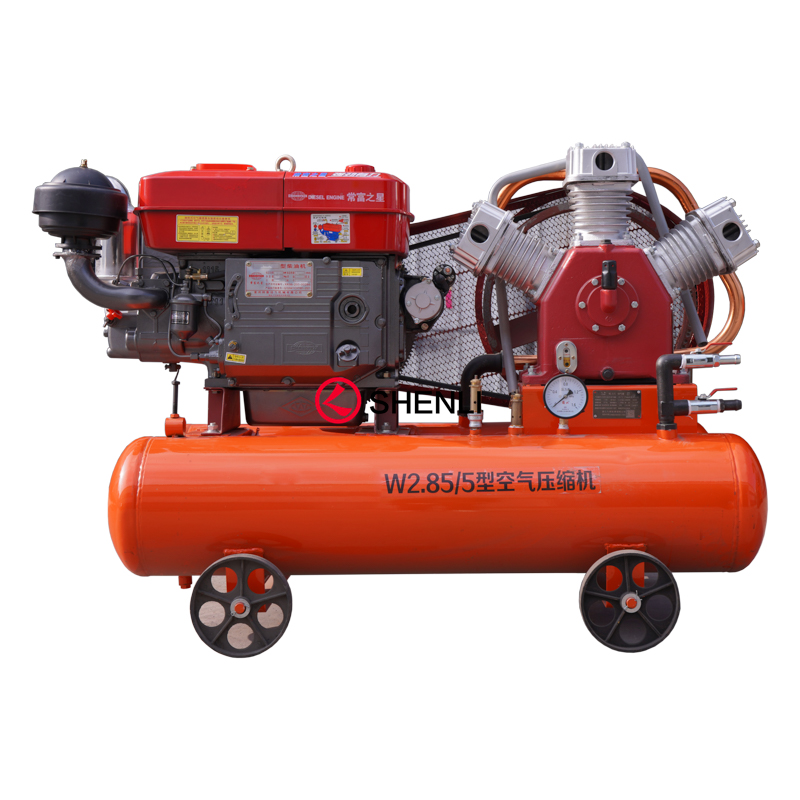

W2.85‑5 air compressor

Short Description:

The W2.85‑5 air compressor is a mobile air compression unit built for field construction air compressor requirements, mine operation air compressor demands, infrastructure demolition air compressor tasks and tunnel works air compressor projects. As an air compressor for rock drill and jackhammer, this diesel mobile air compressor delivers continuous air supply under harsh outdoor conditions and matches air demand of medium‑small rock drills and jackhammers.

Send email to us Download as PDF

Product Detail

rock drill

Product Tags

W2.85/5 AIR COMPRESSORS

rock drill bit China supplier

W2.85/5 AIR COMPRESSORS

Main Specifications

This air compressor for rock drill and jackhammer carries field‑verified technical data for pneumatic construction works.

Model: W2.85‑5 Air Compressor
Free Air Delivery: 2.85 m³/min
Rated Working Pressure: 5 bar
Matched Tools: rock drill, jackhammer, breaker hammer, pneumatic drill, down‑the‑hole drill, pneumatic wrench and other construction pneumatic tools
Power Source: diesel driven mobile air compressor
Application Sites: mine sites, infrastructure jobs, municipal projects, off‑road sites and small industrial works

Quality

Performance Features

Stable Air Supply for Rock Drill & Jackhammer

This air compressor for rock drill and jackhammer adopts well‑matched air displacement and working pressure. It supplies consistent compressed air for rock drill, jackhammer and pneumatic drill, minimizing efficiency loss brought by pressure fluctuation. As a professional construction pneumatic air compressor, it fits heavy continuous‑cycle operation.

High Mobility for Field Works

As a 2.85m³/min mobile air compressor, mobile framework plus towing wheels support flexible position adjustment across yards, mine slopes and road construction zones. Suitable for projects without fixed working station.

Strong Environmental Compatibility

Protected housing copes with heavy dust, mud, moisture and high temperature onsite. It reduces internal component wear caused by external debris, ideal as mining air compressor for harsh mine environment.

Simple Operation

Clear logic for start, pressure stabilization and shutdown. No complicated training required for field operators handling rock drilling pneumatic equipment, mining pneumatic tools and construction breaking tools.

Compatible Pneumatic Tools

W2.85‑5 air compressor supports a wide range of construction pneumatic equipment:

rock drill, jackhammer, breaker hammer, pneumatic drill, down‑the‑hole drill, pneumatic wrench, rock drilling pneumatic equipment, mining pneumatic tools, construction breaking tools

Item	Unit	W1.8/5	W2.85/5	W3.0/5	W3.5/5	W3.2/7	2V4.0/5	SF4.0/5
Free Air Delivery (FAD)	m³/min	1.8	2.8	3	3.5	3.2	4	4
Working Pressure	MPa	0.5	0.5	0.5	0.5	0.7	0.5	0.5
Crankshaft Speed	r/min	1180	1070	1070	1070	970	970	970
Cylinder Quantity × Bore	Z×mm	3×100	3×115	3×120	3×125	3×125	4×120	4×120
Piston Stroke	mm	80	100	100	100	110	100	100
Matched Power	-	S1100 Diesel Engine or 11kW 2-Pole Electric Motor	S1100 Diesel Engine or 15kW 2-Pole Electric Motor	S1115 Diesel Engine or 18.5kW 2-Pole Electric Motor	S1125 Diesel Engine or 18.5kW 2-Pole Electric Motor	S1125 Diesel Engine or 18.5kW 2-Pole Electric Motor	L32 Diesel Engine or 18.5kW 2-Pole Electric Motor	L32 Diesel Engine or 18.5kW 2-Pole Electric Motor
Pressure Control Mode	-	Automatic Exhaust	Automatic Exhaust	Automatic Exhaust	Automatic Exhaust	Automatic Exhaust	Intake Shut-Off	Intake Shut-Off
Lubrication Method	-	Splash Lubrication	Splash Lubrication	Splash Lubrication	Splash Lubrication	Splash Lubrication	Splash Lubrication	Splash Lubrication
Cooling Method	-	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling
Transmission Mode	-	Clutch + V-Belt	Clutch + V-Belt	Clutch + V-Belt	Clutch + V-Belt	Clutch + V-Belt	Clutch + V-Belt	Clutch + V-Belt
Overall Dimension (L×W×H)	mm	1630×750×1150	1750×940×1290	1750×940×1290	1750×940×1290	1920×690×1350	1900×1070×1260	1900×930×1235
Net Weight (Without Power Unit)	kg	150	215	215	220	285	340	265

Tuned for pneumatic tool requirements, this air compressor for rock drill and jackhammer outputs free air delivery of 2.85m³/min at rated working pressure 5bar. This 5 bar construction air compressor features fast start‑up response and steady air output. No obvious pressure drop occurs during long‑time full‑load running. The unit works for high‑frequency rock drilling and breaking tasks at sites without mains power supply, acting as reliable off‑grid air compressor for remote job‑sites.

Structure & Configuration

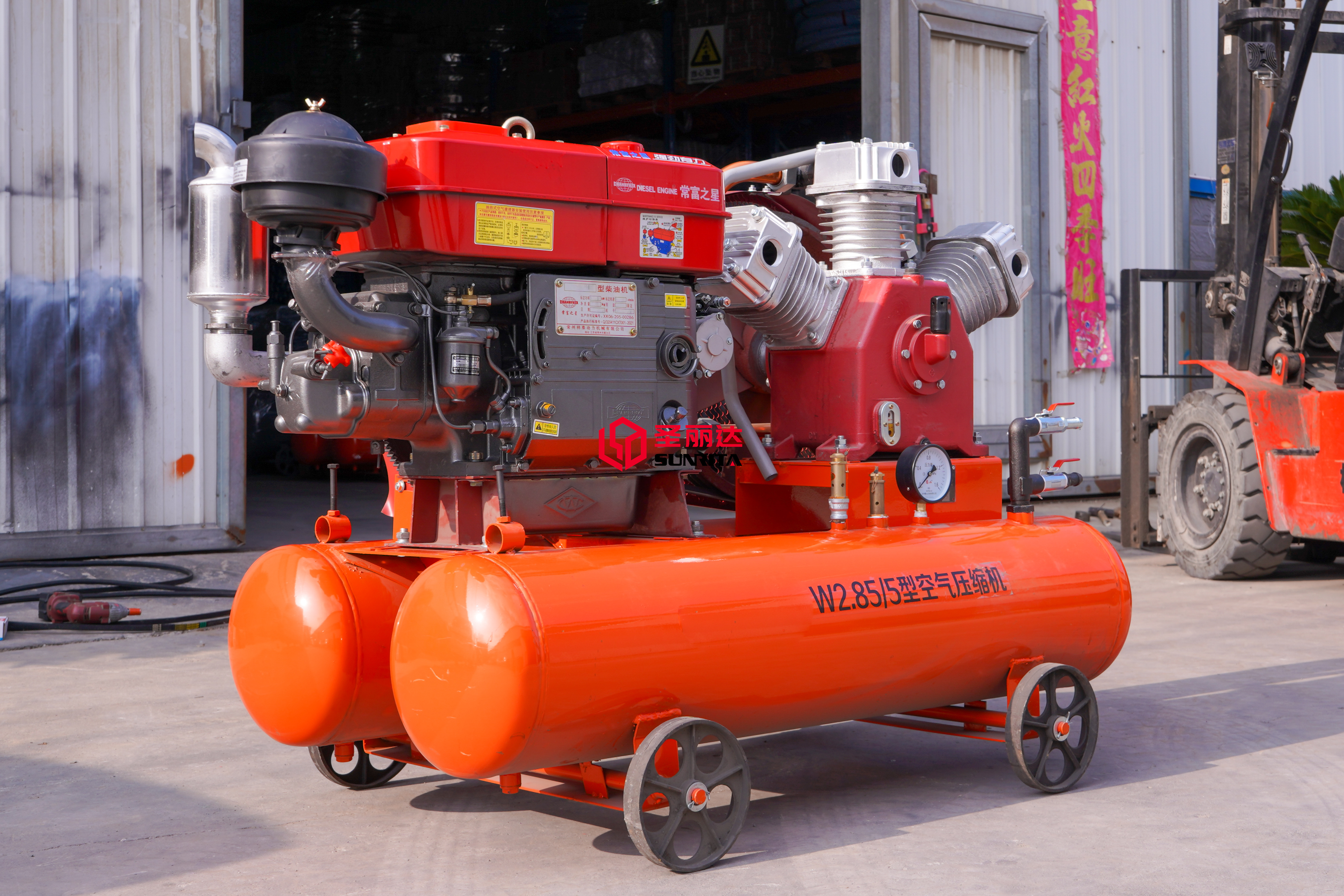

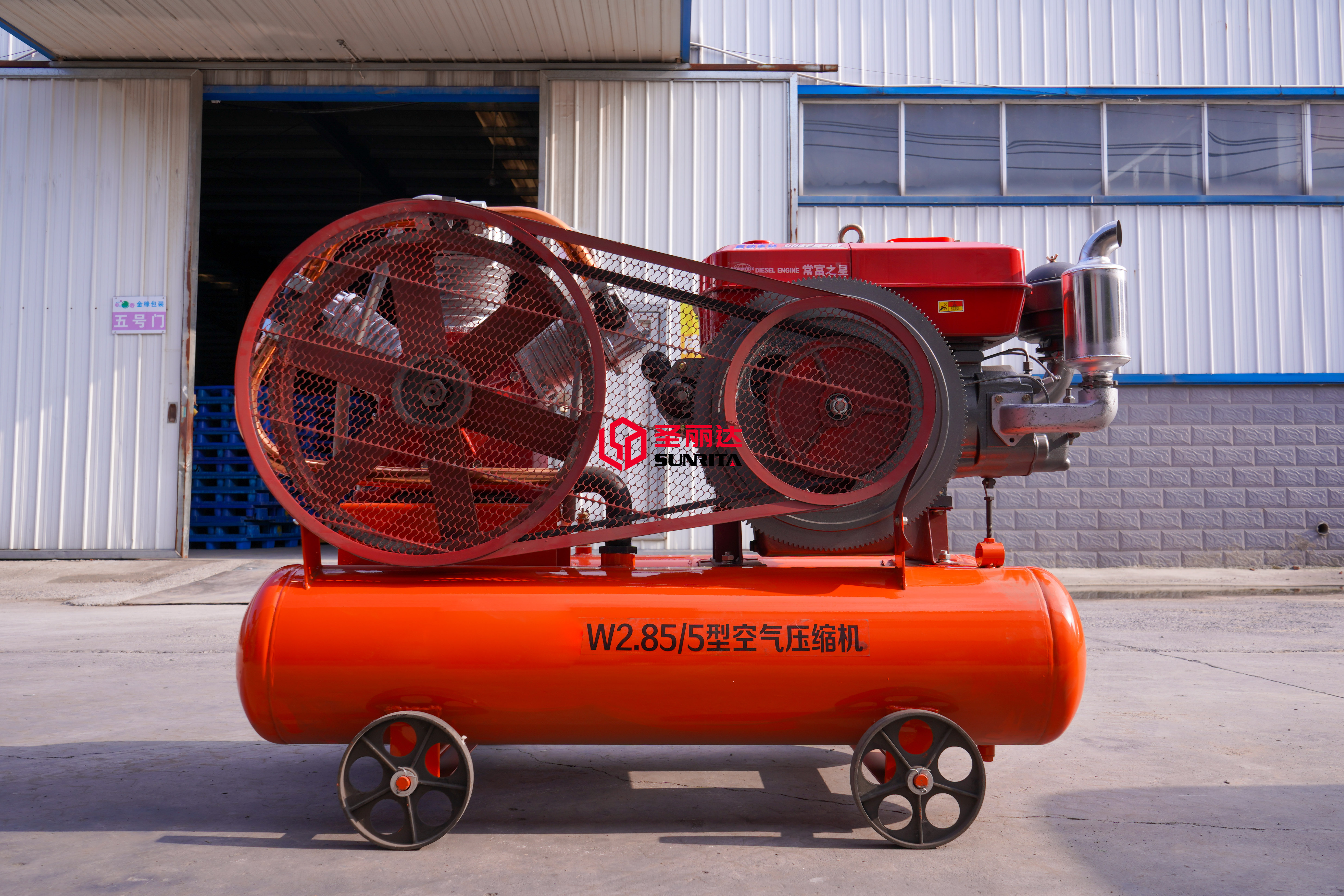

This air compressor for rock drill and jackhammer, also known as mine rock drill air compressor, adopts integrated mobile chassis fitted with heavy‑duty wheels and towing structure for relocation on construction yards, mine zones and mountain terrains. Reinforced frame absorbs bump and impact against dusty and wet field surroundings for long‑term outdoor operation.

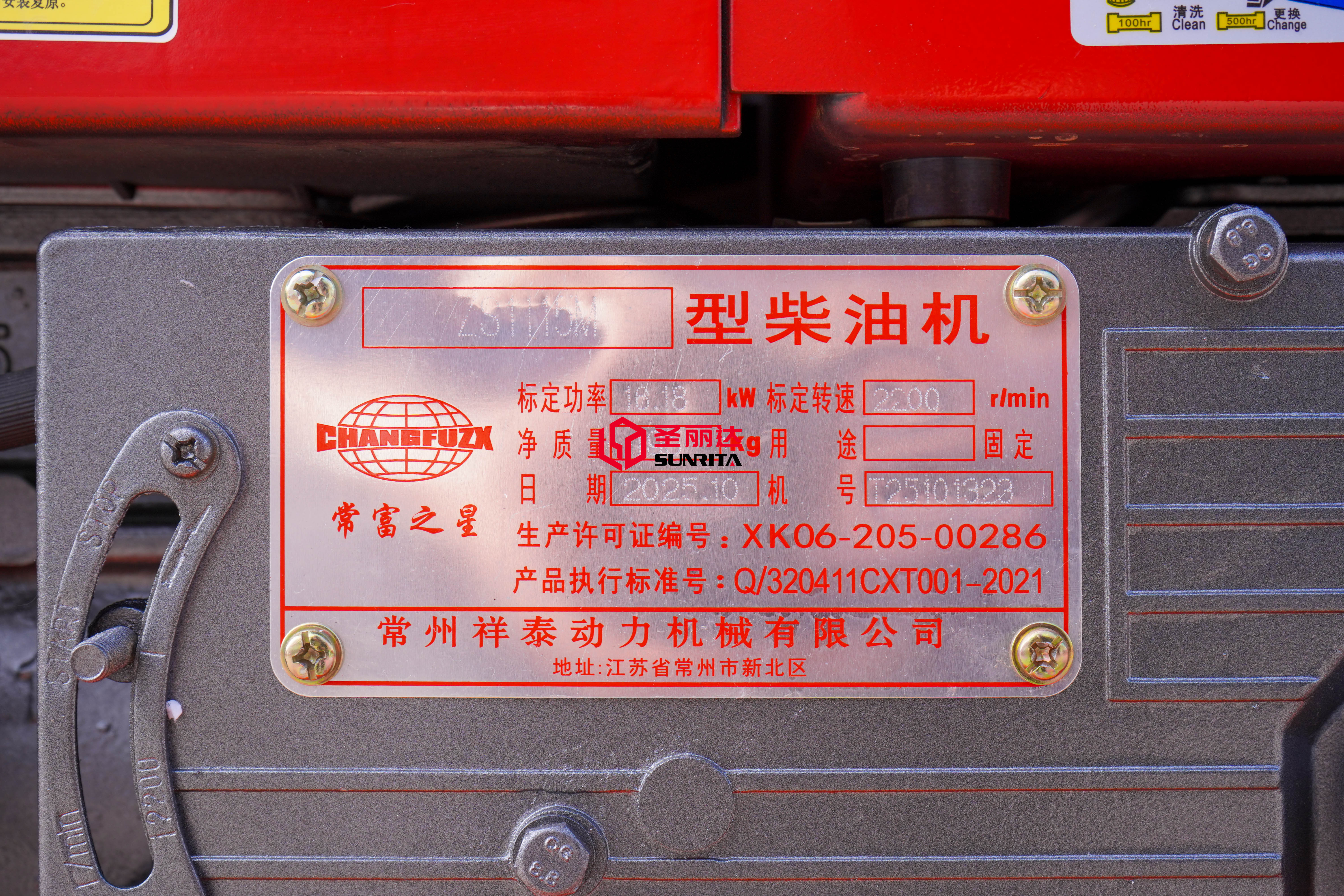

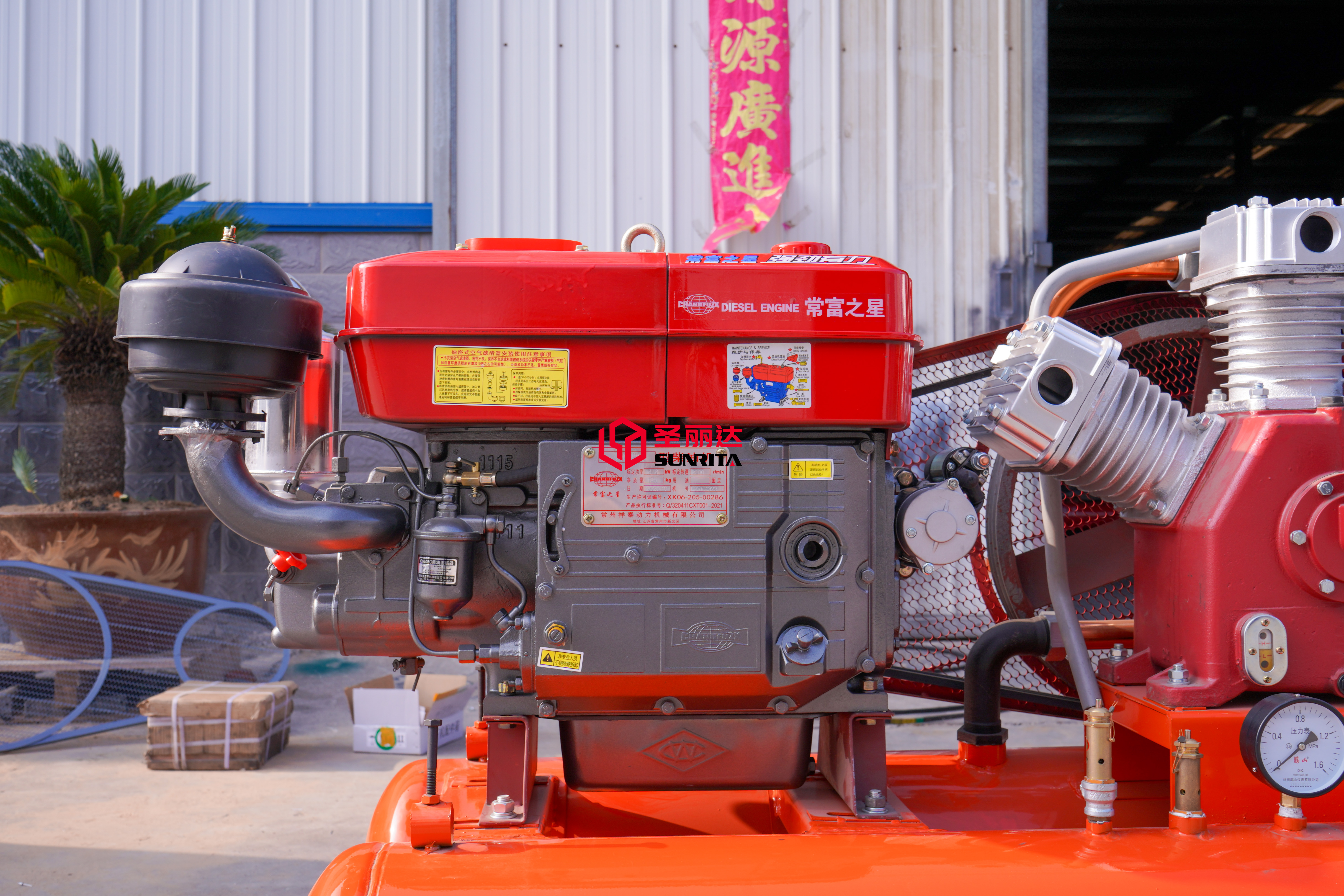

Equipped with industrial diesel engine, the W2.85‑5 air compressor runs without grid power. Matched between compressor host and power assembly, it keeps responsive and stable air flow to sustain continuous running of rock drill and jackhammer. This jackhammer supporting air compressor is well‑calibrated for heavy‑duty pneumatic equipment.

Simplified control panel covers start‑stop, pressure reading and safety protection. Operators can finish onsite operation with simple steps. Built‑in dust‑proof, water‑proof, overload and overheat protection lowers failure risks caused by rough working conditions for this rock drill dedicated air compressor.

Application Areas

Application Scenarios

This air compressor for rock drill and jackhammer serves multiple practical working conditions:
Mining: surface shallow rock drilling, ore breaking, small tunnel heading air supply
Infrastructure: highway & railway subgrade breaking, road renewal, slope rock bolting
Municipal works: pavement removal, concrete breaking, pipeline excavation, old site reconstruction
Off‑site projects: mountain construction, slope protection, pneumatic tool supply for off‑grid locations
Small industrial jobs: factory foundation modification, foundation pit breaking, rock clearance, temporary rock drilling

Compatible Pneumatic Tools

W2.85‑5 air compressor supports a wide range of construction pneumatic equipment:

rock drill, jackhammer, breaker hammer, pneumatic drill, down‑the‑hole drill, pneumatic wrench, rock drilling pneumatic equipment, mining pneumatic tools, construction breaking tools

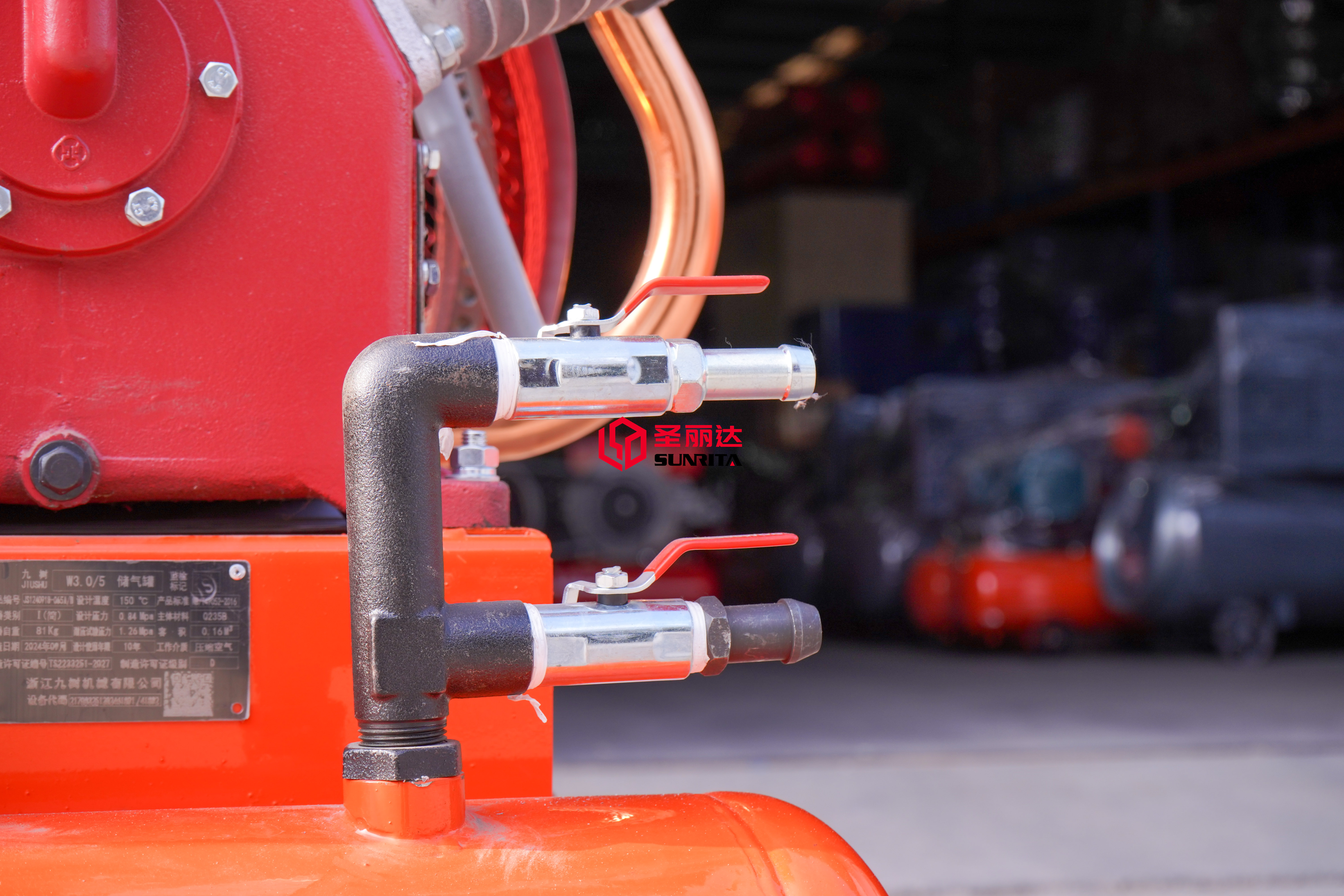

Product Detail Images

Core Structure & Operational Stability

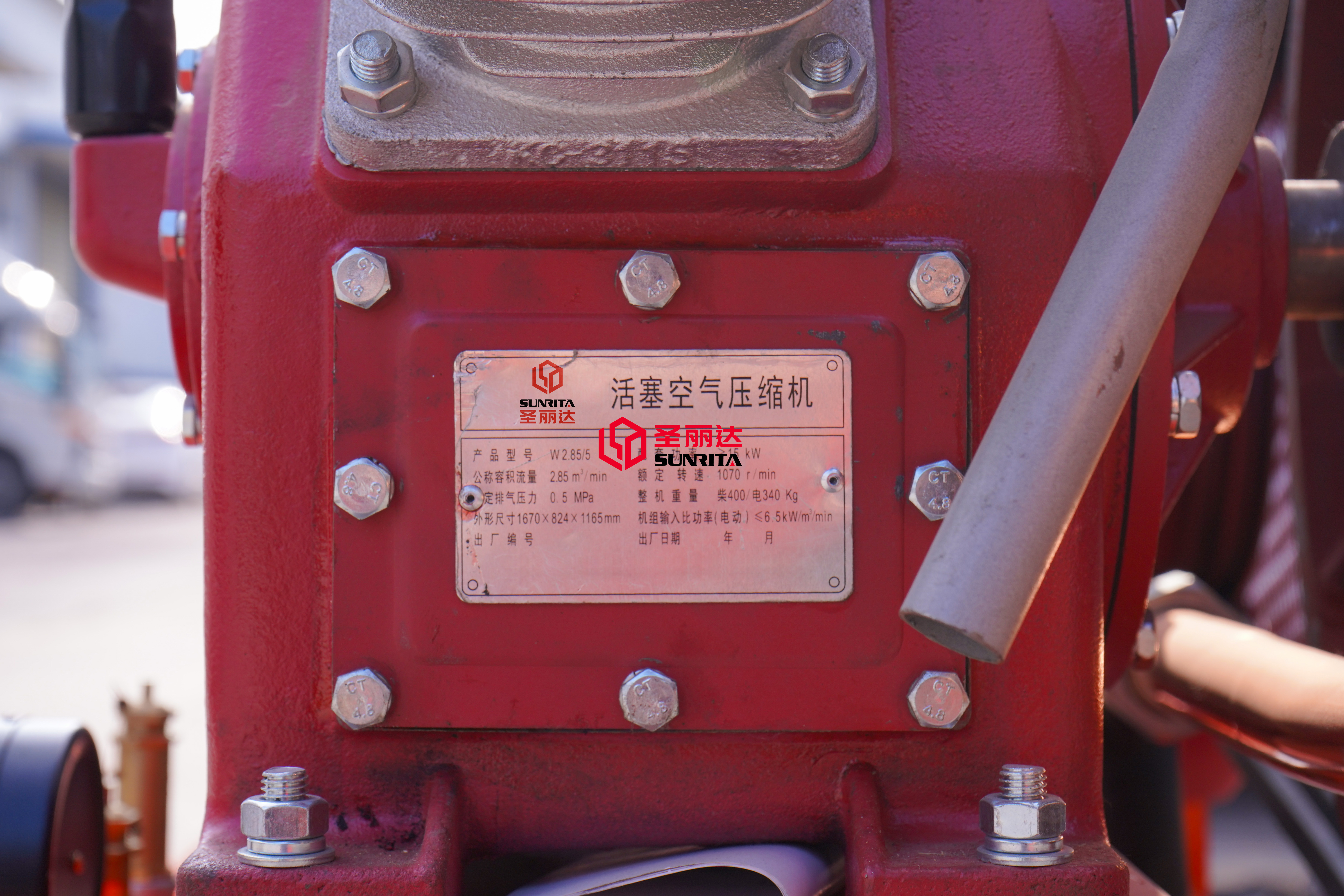

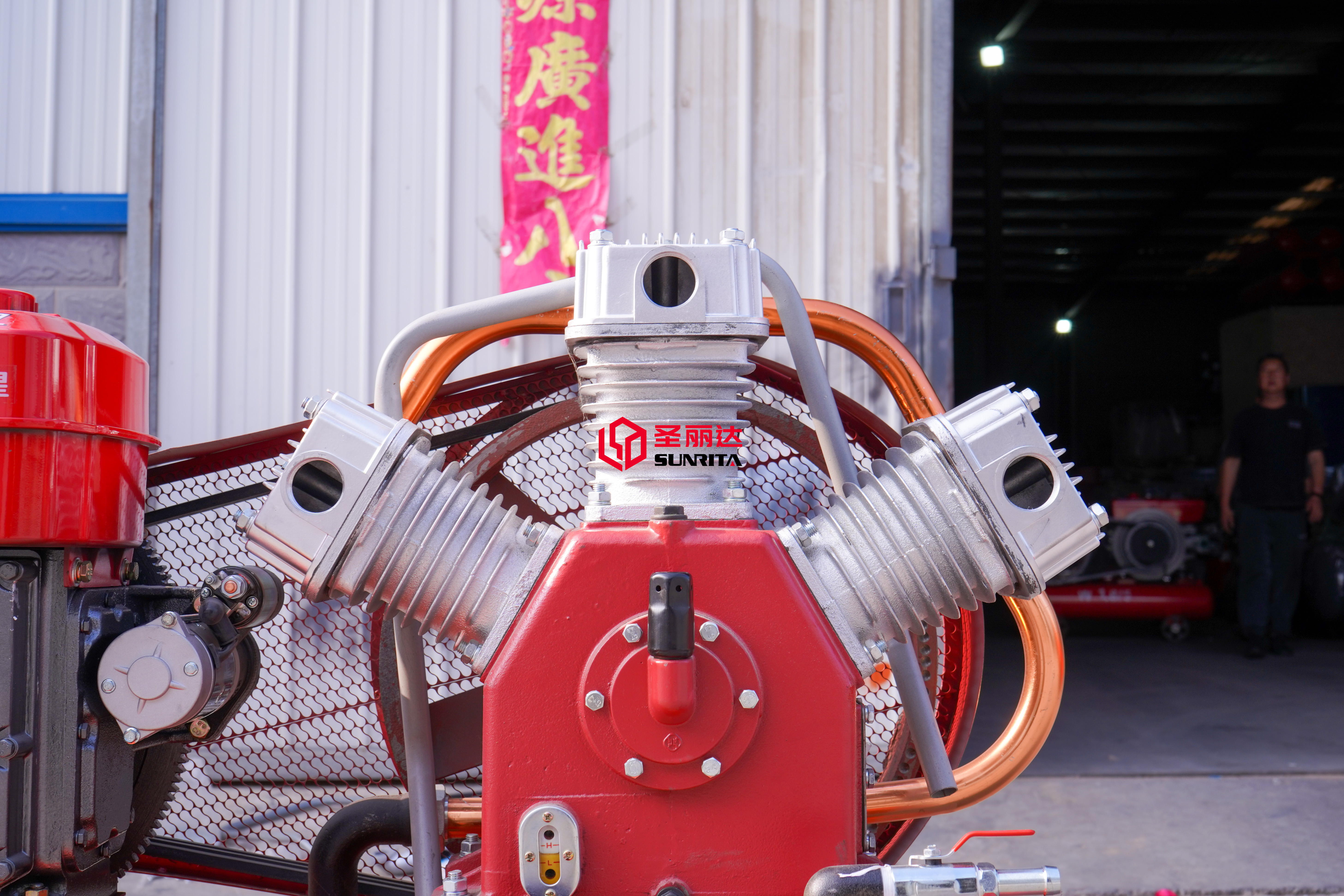

The heavy-duty piston air compressor adopts a professional reciprocating piston structure, featuring an integrated crankshaft and high-precision cylinder assembly for stable air compression performance. Designed as a positive displacement air compressor, it efficiently completes air intake, compression, and exhaust cycles with low operation vibration and stable air output. The whole machine adopts thickened cast iron materials, with wear-resistant piston rings and durable valve plates that greatly extend the service life. This robust structural design enables the industrial piston air compressor to maintain continuous and stable operation in long-hour working scenarios, effectively avoiding pressure fluctuation and ensuring consistent pneumatic power supply for various pneumatic tools.

Harsh Environment Adaptability & Mining Application Performance

Built for tough industrial and mining scenarios, this reciprocating air compressor boasts excellent environmental adaptability, perfectly suited for mining, rock drilling, quarrying, and outdoor construction work. Equipped with an efficient air cooling system and professional dustproof structure, the piston air compressor resists dust, high temperature, and variable outdoor weather conditions. It can steadily drive jackhammers, rock drills, and pneumatic breakers in dusty mine sites and remote construction areas. With reliable low-failure performance, this mining air compressor supports intermittent and long-time continuous operation, fully meeting the high-intensity air supply demands of field engineering operations.

Energy Saving & Low Maintenance Advantages

This industrial piston air compressor is optimized with energy-saving compression technology, realizing high air displacement with low energy consumption, bringing excellent cost performance for industrial users. Different from complex screw compressors, the reciprocating air compressor features a simple and mature mechanical structure with fewer vulnerable parts and a highly accessible maintenance design. Daily maintenance such as oil replacement and parts inspection can be completed quickly without professional skills. The durable configuration reduces long-term operating costs and downtime. It is an ideal cost-effective air compressor for small and medium factories, mining sites, and construction engineering projects worldwide.

Portable Design & Wide Application Versatility

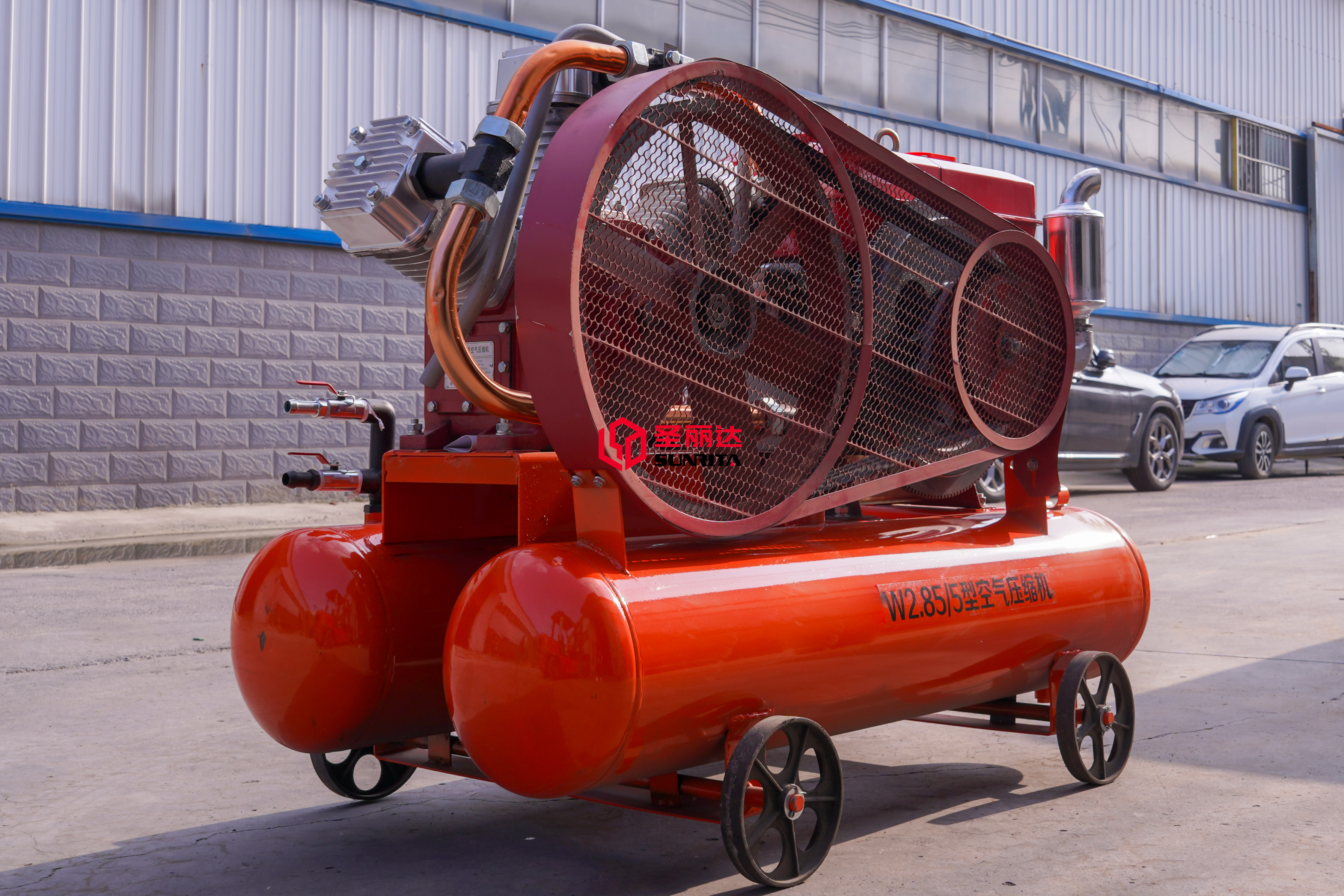

Designed with a flexible mobile structure, the portable piston air compressor is equipped with sturdy walking wheels and a stable frame, enabling convenient movement and on-site layout in complex working environments. It supports customized pressure and air volume configurations, covering multiple working demands from mining rock breaking to municipal construction and mechanical equipment pneumatic supply. Whether for off-grid field operations or fixed workshop air supply, this reciprocating piston air compressor delivers stable and efficient compressed air output. Its strong versatility, easy operation, and high safety make it a mainstream pneumatic equipment widely recognized in the global industrial and mining industry.

DETAIL VIEW
