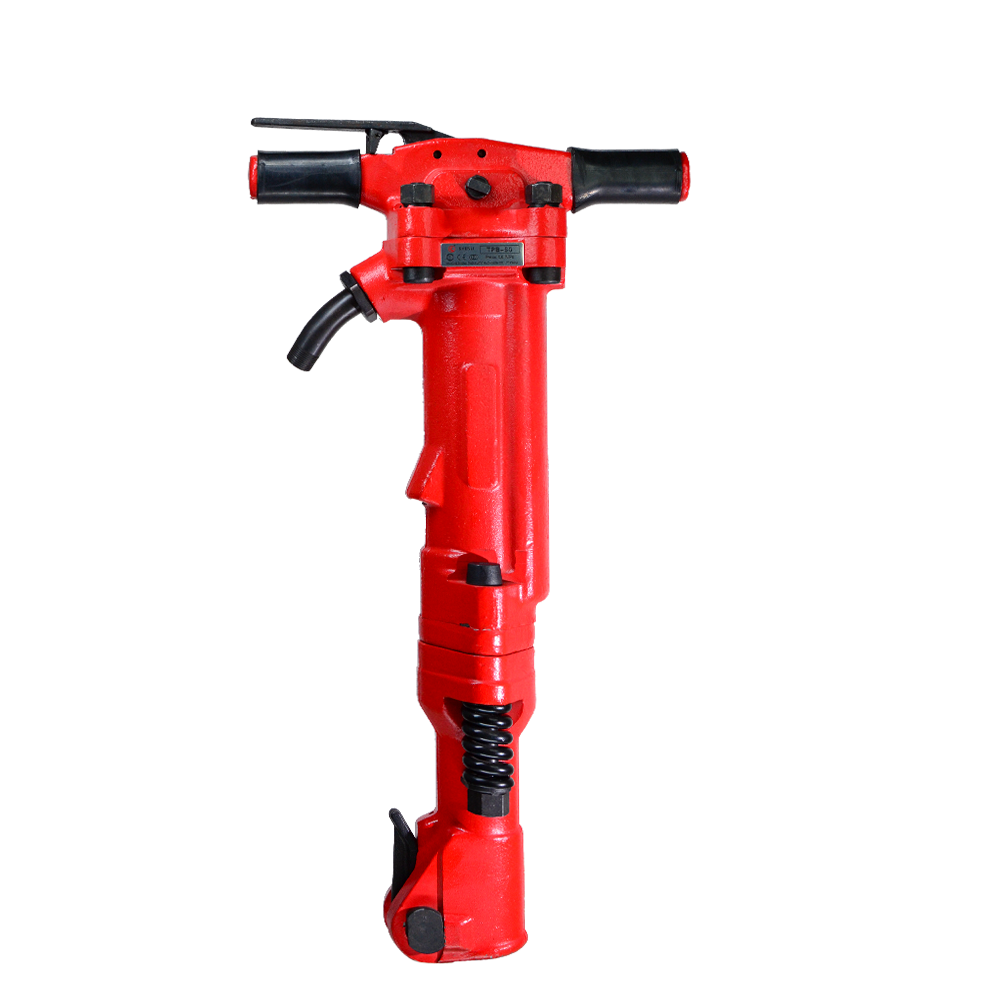

TPB90 Crushing Air Pick Rock Drill Pneumatic Pick

Short Description:

TPB-90 crusher adopts the mature technology of Japan TOKU Group. It is a crushing tool powered by compressed air, which can efficiently complete the crushing work of reinforced concrete, rock, asphalt, etc. It has the characteristics of greater horsepower, higher efficiency, and longer life, which is especially suitable for crushing operations of extra-large, extra-thick, and extra-hard objects. It is an ideal tool for basic engineering construction such as mines, bridges, roads, and municipal construction.


  • Model: TPB-90
  • Piston Diameter: 66.67mm
  • Piston Stroke: 152mm
  • Percussive Frequency: 1400 B.P.M
  • N.W.: 42kg
  • Length: 723mm
  • Air Consumption: 2.2 m³/min
  • Air Tube Lnner Diameter: 19mm
  • Bit Head Size: 1-1/8×6 or 1-14/×6mm
  • Air Inlet Size: 3/4 P/T
    • Download as PDF

    Product Detail

    rock drill

    Product Tags

    TPB-90 AIR PICK

    TPB-90 breaker developed by East Japan Air (TOKU) group with the mature technology.
    1. All parts of machine are made of alloy steel, and have great durability.
    2. Back head is fixed by four bolts, and can endure the extremely hard condition
    3. Quick reblading-type gripper, easy changing chisel, Hex. Shank
    4. It is used to break or excavate the asphalt.

    The ideal tool for foundation construction

    TPB-90 Handheld Jack Hammer Rock Breaker Hammer

    More horsepower, higher efficiency and longer life

    Extra large. Extra thick. Crushing work of extra hard objects

    Your good helper

    LEARN MORE

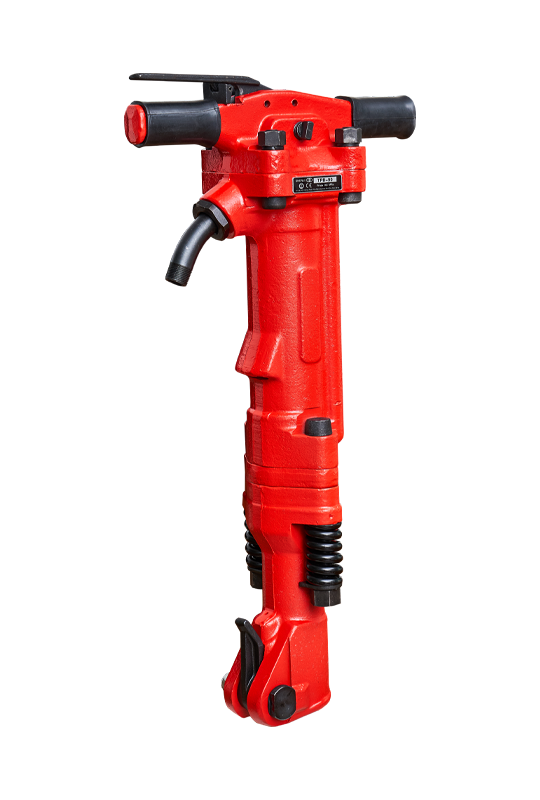

    pneumatic breakers tpb60 tpb90 tpb40 TCA7 tcd20 B87C B37 AIR PICK TPB90

    Main parameters of air pick products



    Parameter/name tca-7 tcd-20 rb777 tpb-40 tpb-60 tpb-90
    Piston diameter 35mm 42.85 57mm 44mm 57.15mm 66.67mm
    Piston stroke 120mm 60mm 189mm 146mm 100mm 152mm
    Percussive frequency 1250 B.P.M 2000 B.P.M 18.3 Hz 1050 B.P.M 1400 B.P.M 1400 B.P.M
    N.W 7.2kg 10kg 37kg 18kg 30kg 42kg
    Length 465MM 520MM 733MM 660MM 645MM 723MM
    Air consumption 1.0m³/min 1.1 m³/min 0.63Mpa 1.6 m³/min 2.0 m³/min 2.2 m³/min
    Tracheal diameter 19 19 19 19 19 19
    bit head size R26*80 R26*80 R32*152 R25*108 R32*152 R32*152

    FAMOUS BRANDS

    tpb90 air pick 1

    SOLD WORLDWIDE

    IDEAL CRUSHING TOOLS

    ROCK DRILL JACK HAMMER tca7 tpb60 tpb90 s250 TPB40 jack hammer drill

    TPB-90

    Key Features & Specifications:

    · High Impact Frequency: Ensures fast and efficient material breakup.
    · Robust Cylinder and Piston: Manufactured from hardened steel for extended durability.
    · Easy-Start Valve: Provides smooth operation and reduces starting resistance.
    · Low Vibration Design: Helps in minimizing operator strain.
    · Compatible with a Range of Tool Bits: Offers versatility for various applications, from clay spades to moil points.
    · Simple Lubrication System: Easy to maintain for consistent performance.



    ROCK DRILL JACK HAMMER tca7 TPB40 tpb60 tpb90 s250 B87C

    AIR PICK

    Durability is at the core of the TPB90. Constructed with high-grade materials and advanced heat treatment processes, its internal components are built to withstand intense, continuous operation. The simple and reliable internal structure minimizes downtime and simplifies maintenance, ensuring a long service life and low total cost of ownership.



    Operating on standard compressed air, the TPB90 is a versatile and powerful solution for professionals who require a tool that can keep pace with demanding work schedules. For breaking, cutting, or digging, the TPB90 Pneumatic Pick stands as a testament to power, resilience, and unwavering performance.



    pneumatic breakers tpb60 tpb90 tpb40 B87C jack hammer drill

    SHENLI

    The TPB90 Pneumatic Pick is a high-performance industrial tool engineered for maximum efficiency in the most challenging breaking and chiseling applications. It is the ideal choice for construction, mining, quarrying, and road maintenance projects where power and durability are non-negotiable.



    This robust tool is designed to deliver exceptional impact energy, allowing for rapid concrete breaking, trench digging, and asphalt removal. Its ergonomic design, featuring a comfortable grip and optimized weight distribution, ensures user comfort and reduces operator fatigue during extended use, thereby enhancing overall productivity.



    OUR ADVANTAGES

    Safe and reliable

    Shenli pay attention to the details of the user experience for the majority of customers to provide the most perfect quality assurance

    High quality material

    The products are forged with super hard steel, quality first, customer first. Innovation and quality oriented Strive to be the pioneer of the industry!

    One machine for multiple uses

    Especially suitable for oversized. Extra thick. It is an ideal tool for the construction of mining, bridge dyeing, road and municipal infrastructure projects.

    Easy inspection and repair

    Product horsepower, higher efficiency, longer life, easy access, universal accessories

    Powerful power

    Crushing tools powered by compressed air, can efficiently complete the crushing work of reinforced concrete, rock, etc.

    Factory direct sales

    The company introduces the technology of foreign production enterprises such as Epiroc and Furukawa of Japan. We have become a large scale and high reputation pneumatic mining machinery manufacturer in China.

    TPB-90 AIR PICK

    Breaking tools

    TPB-90 wind pick is a compressed air-powered crushing tool can effectively complete the crushing of reinforced concrete, rock, etc. Shenli machinery to create high-quality products



    NO.1>

    pneumatic breakers tpb60 tpb90 tpb40 TCA7
    ROCK DRILL JACK HAMMER tca7 TPB40 tpb60 tpb90 s250 B87C jack hammer drill

    TPB-90 AIR PICK

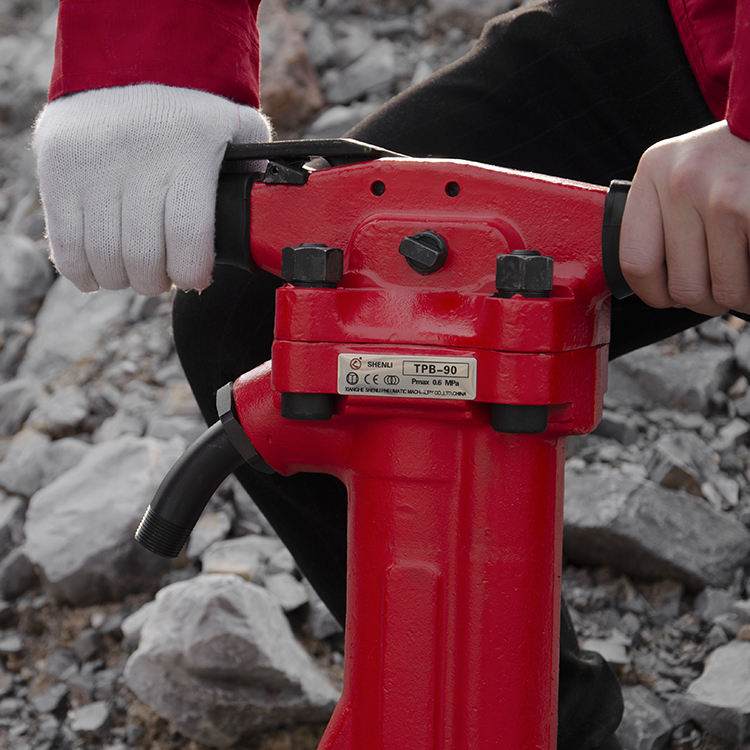

    Details show - Trigger

    There is a trigger switch below the press handle, push the trigger, press the handle, the crusher begins to work, the trigger greatly improves the product work safety factor



    <NO.2

    TPB-90 AIR PICK

    Details show-Air Connection Tube

    TPB-90 crusher has large air inlet, high crushing cavity, high hardness, large block size, and less stone powder in the product.



    NO.3>

    ROCK DRILL JACK HAMMER tca7 tpb60 tpb90 s250 TPB40 pneumatic air jack pick hammer jack hammer drill
    air hammer TPB90 TPB60 TPB40 TCA7 TCD20

    GUARANTEED SAFE & SECURE CHECKOUT

    未标题-2 拷贝

    · Tracking order traceability.

    · On-time delivery guarantee

    · 100% qroduct qualification rate

    Delivery for :

    Express delivery

    For the Goods' Value lower than USD1000 Like 1set or 2 set. We need send it to you by Express.Please tell us your city and postcode for the courier cost.



    Time

    Delivery by sea: After it was delivered to the seaport . We will tell you the shipping time and arrival time .

    Sea Freight

    For the Goods' Value more than USD 1000.Like ≥3 set. We could send it to you by sea. Please tell us your seaport for the Freight cost,In addition, we can also help you consult the shipping price

    Air Freight

    Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport . We will tell you the Express tracking number .

    Freight Forwarding

    If you have shipping agent in china. please let your agent contact us.



    Services

    Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number .

    FAQ：

    1. : Are you factory or trade company?
    A: We are factory. And we have ourselves trading company.
    2: Warranty terms of your machine?
    A: 3 months for the core components and technical support according to your needs.
    3: Will you provide some spare parts of the machines?
    A: Yes, we have most of the spare parts in stock.
    4: Which payment term can you accept?
    A: 30% T/T in advanced, 70% T/T before the delivery.
    5: Can you accept OEM orders?
    A: Yes, we have high specialized and rich experienced team, OEM orders are highly welcome.
    6: Which trade term can you accept?
    A: FOB, CIF, CFR, EXW, CPT, etc.
