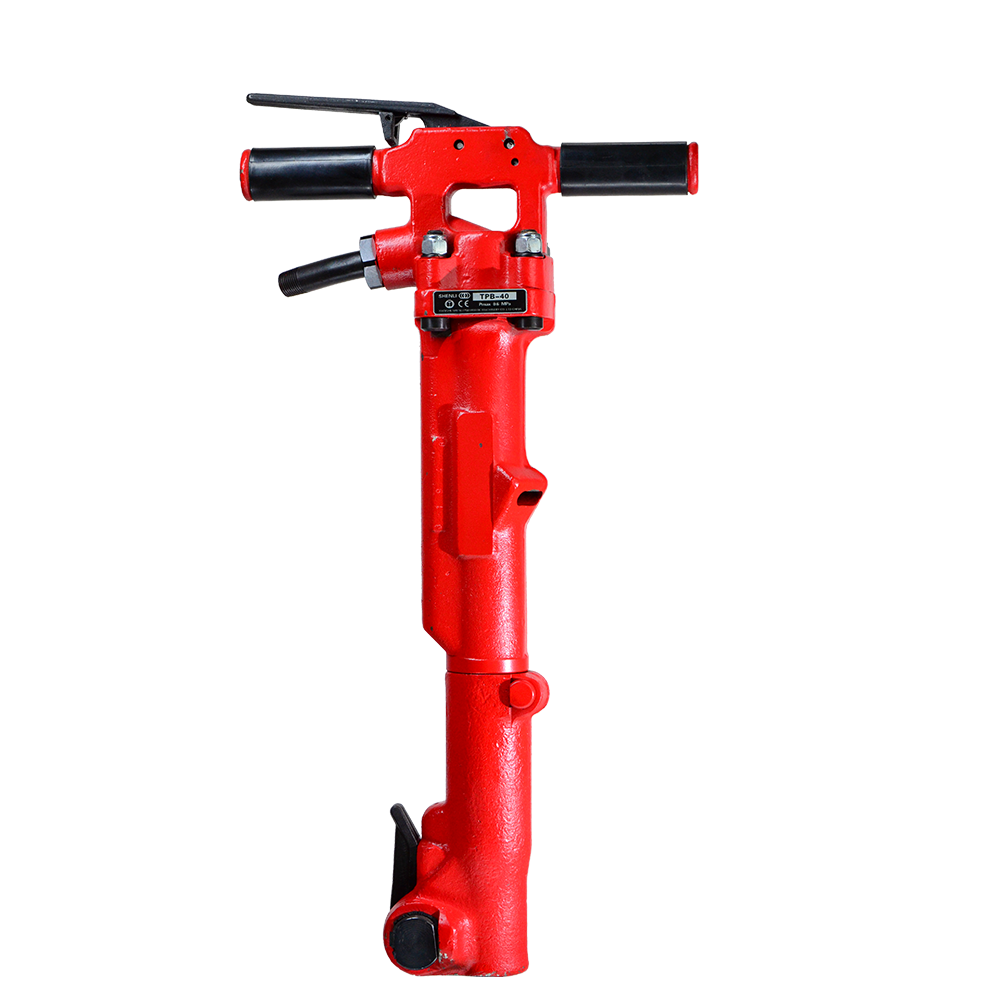

TPB40 Pneumatic Pick Rock Drill

Short Description:

TPB-40 pneumatic crushing pick is a tool powered by compressed air. The compressed air is distributed to both ends of the cylinder block in turn to make the hammer body reciprocate impact the end of the drill, chisel the drill into the concrete layer, make it split into blocks.


  • Model: TPB-40
  • Piston Diameter: 44mm
  • Piston Stroke: 146mm
  • Percussive Frequency: 1050 B.P.M
  • N.W.: 18kg
  • Length: 660mm
  • Air Consumption: 1.6 m³/min
  • Air Tube Size: 19mm
  • Bit Head Size: R25×108mm
  • Air Inlet Size: 3/4 P/T
    • Download as PDF

    Product Detail

    rock drill

    Product Tags

    TPB-40 AIR PICK

    TPB-40 pneumatic broken pick is a tool powered by compressed air
    1. All parts of machine are made of alloy steel, and have great durability.
    2. Back head is fixed by four bolts, and can endure the extremely hard condition
    3. Quick reblading-type gripper, easy changing chisel, Hex. Shank
    4. It is used to break or excavate the asphalt.

    The ideal tool for foundation construction

    TPB-40 Handheld Jack Hammer Rock Breaker Hammer

    More horsepower, higher efficiency and longer life

    Extra large. Extra thick. Crushing work of extra hard objects

    Your good helper

    LEARN MORE

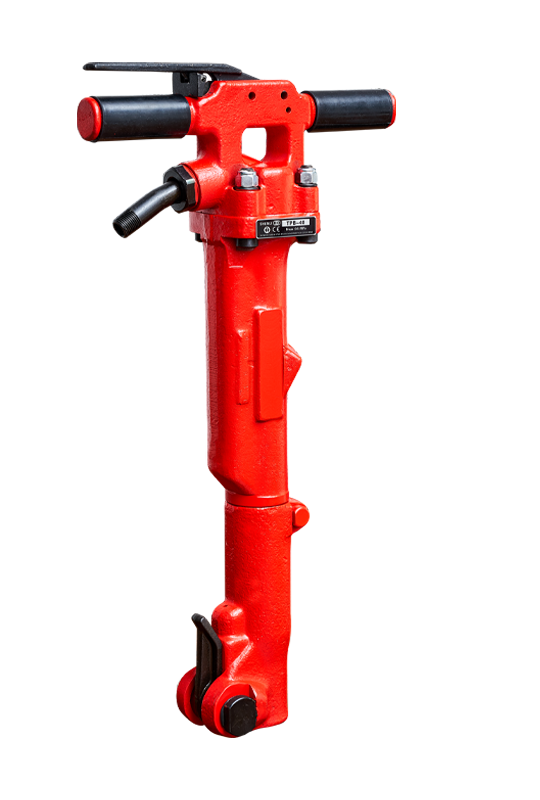

    pneumatic breakers tpb60 tpb90 tpb40 TCA7 tcd20 B87C B37 AIR PICK TPB40

    Main parameters of air pick products

    Parameter/name tca-7 tcd-20 rb777 tpb-40 tpb-60 tpb-90
    Piston diameter 35mm 42.85 57mm 44mm 57.15mm 66.67mm
    Piston stroke 120mm 60mm 189mm 146mm 100mm 152mm
    Percussive frequency 1250 B.P.M 2000 B.P.M 18.3 Hz 1050 B.P.M 1400 B.P.M 1400 B.P.M
    N.W 7.2kg 10kg 37kg 18kg 30kg 42kg
    Length 465MM 520MM 733MM 660MM 645MM 723MM
    Air consumption 1.0m³/min 1.1 m³/min 0.63Mpa 1.6 m³/min 2.0 m³/min 2.2 m³/min
    Tracheal diameter 19 19 19 19 19 19
    bit head size R26*80 R26*80 R32*152 R25*108 R32*152 R32*152

    FAMOUS BRANDS

    tpb40 air pick 1

    SOLD WORLDWIDE

    IDEAL CRUSHING TOOLS

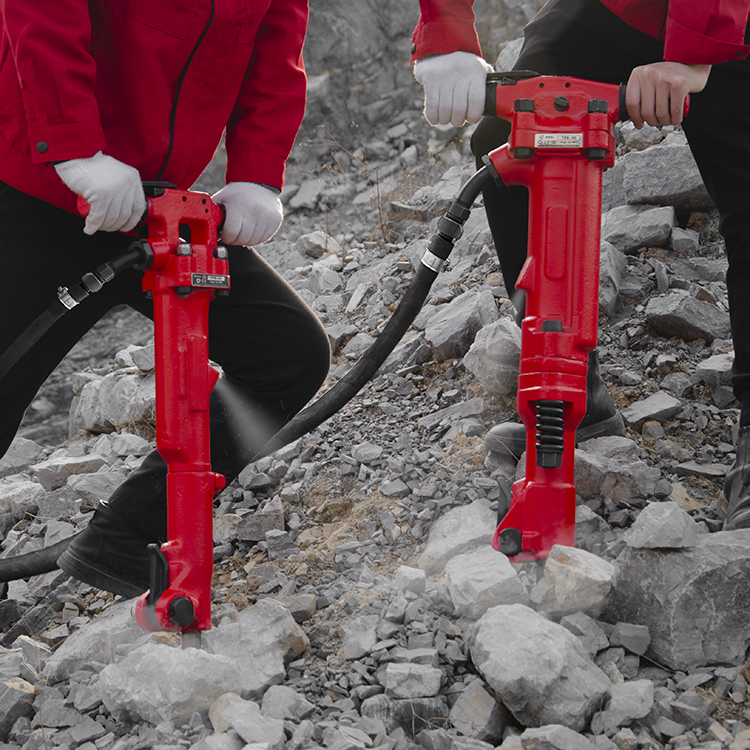

    ROCK DRILL JACK HAMMER tca7 TPB40 tpb60 tpb90 s250 B87C

    TPB-40

    Paving breaker uses the compressed air as a driving force. It can efficiently complete strengthen of concrete and the breaking of rocks and asphalt. The compressed air is distributed alternatively through the distributing valve into either end of the cylinder assembly so that the hammer inside is made to carry on a reciprocaql motion which impacts the shank of the steel chisel by the tappet drives the chisel into the concrate foundation and makes them split into huge pieces.And it is more high-powered, more efficient and has much longer life.

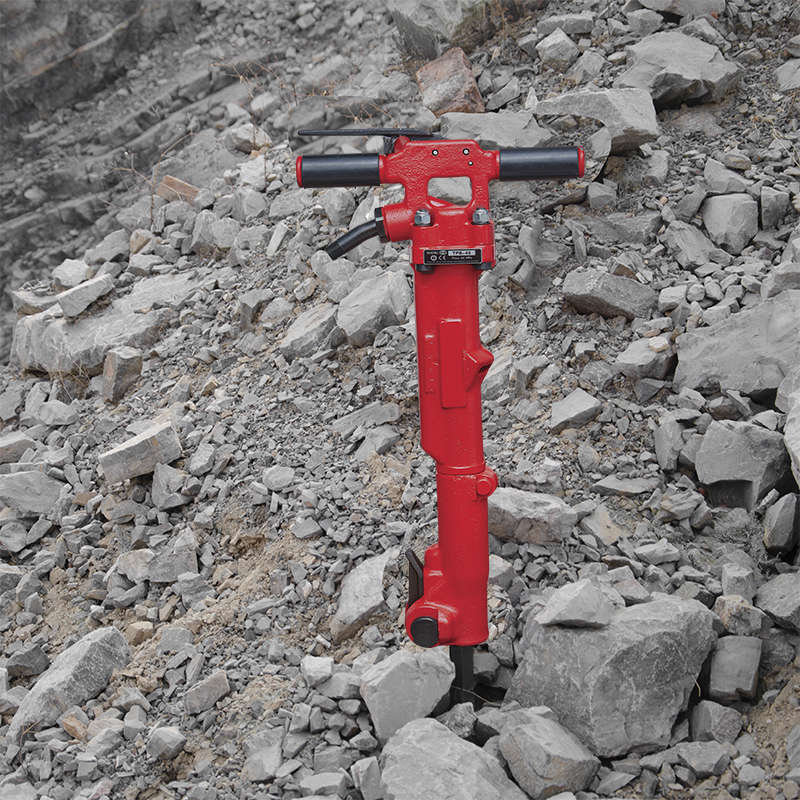

    ROCK DRILL JACK HAMMER tca7 tpb60 tpb90 s250 TPB40

    AIR PICK

    Especially, for the crushing of Large, thick, hard objects,it is the ideal tool to the foundation constructions, such as the Mines, bridges, roads, municipal construction, etc. * High technology to front head design provides excellent durability and low maintenance cost. * Alloy steel forgings provide maximum durability. * Four bolt back head design stands up in rugged us. * Latch type forged retainer for quick change. * Noise reduction muffler is optionally available.

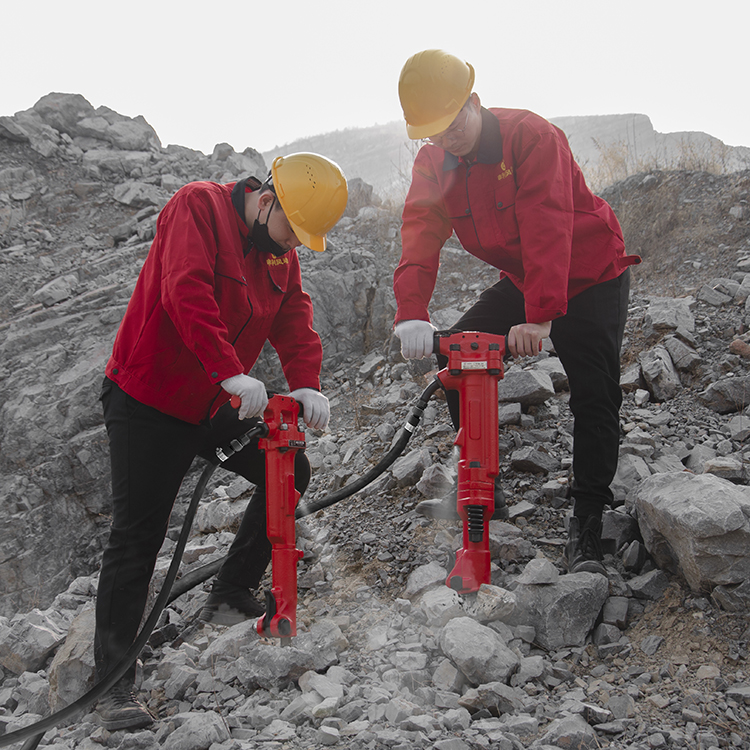

    ROCK DRILL JACK HAMMER tca7 TPB40 tpb60 tpb90 s250

    SHENLI

    TPB-40 breaker developed by East Japan Air (TOKU) group with the mature technology. 1. All parts of machine are made of alloy steel, and have great durability. 2. Back head is fixed by four bolts, and can endure the extremely hard condition 3. Quick reblading-type gripper, easy changing chisel, Hex. Shank 4. It is used to break or excavate the asphalt.

    OUR ADVANTAGES

    Safe and reliable

    Shenli pay attention to the details of the user experience for the majority of customers to provide the most perfect quality assurance

    High quality material

    The products are forged with super hard steel, quality first, customer first. Innovation and quality oriented Strive to be the pioneer of the industry!

    One machine for multiple uses

    Especially suitable for oversized. Extra thick. It is an ideal tool for the construction of mining, bridge dyeing, road and municipal infrastructure projects.

    Easy inspection and repair

    Product horsepower, higher efficiency, longer life, easy access, universal accessories

    Powerful power

    Crushing tools powered by compressed air, can efficiently complete the crushing work of reinforced concrete, rock, etc.

    Factory direct sales

    The company introduces the technology of foreign production enterprises such as Epiroc and Furukawa of Japan. We have become a large scale and high reputation pneumatic mining machinery manufacturer in China.

    TPB-40 AIR PICK

    Breaking tools

    TPB-40 wind pick is a kind of crushing tool powered by compressed air, compressed air is distributed to both ends of the street body by the felling wheel, so that the hammer body for reciprocating motion, Shenli machinery to build quality products



    NO.1>

    pneumatic breakers tpb60 tpb90 tpb40 TCA7

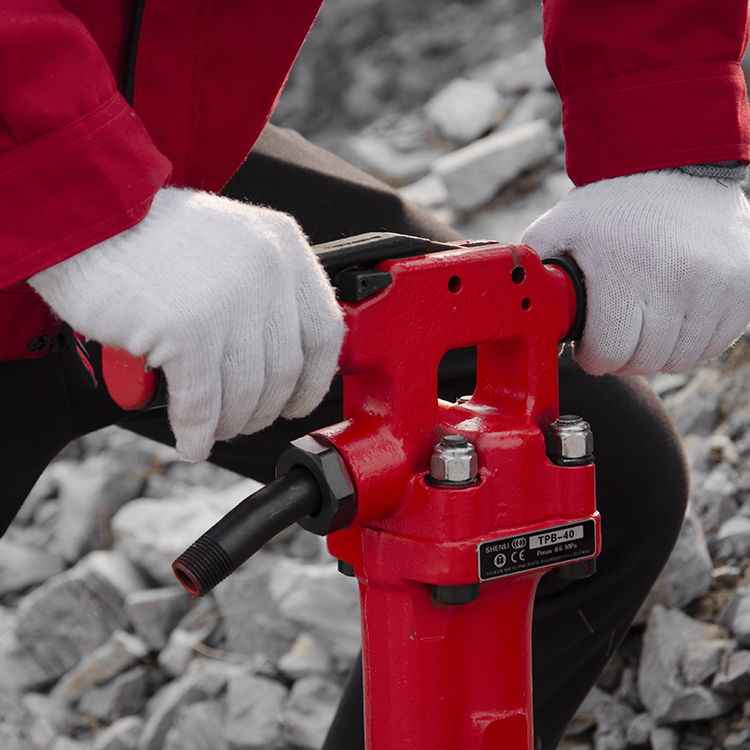

    ROCK DRILL JACK HAMMER tca7 tpb60 tpb90 s250 TPB40 pneumatic air jack

    TPB-40 AIR PICK

    Details show - Trigger

    There is a trigger switch below the press handle, push the trigger, press the handle, the crusher begins to work, the trigger greatly improves the product work safety factor



    <NO.2

    TPB-40 AIR PICK

    Details show-Air Connection Tube

    TPB-40 crusher with large air intake, impacting the end of the steel brazier, saving the steel needle into the concrete layer, making it split into pieces



    NO.3>

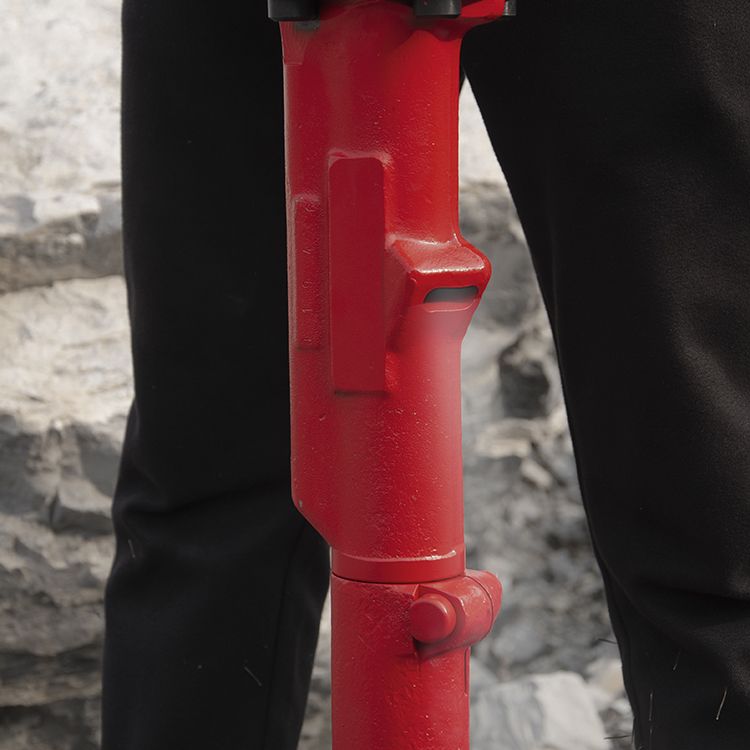

    ROCK DRILL JACK HAMMER tca7 tpb60 tpb90 s250 TPB40 pneumatic air jack pick hammer
    air hammer TPB90 TPB60 TPB40 TCA7 TCD20
