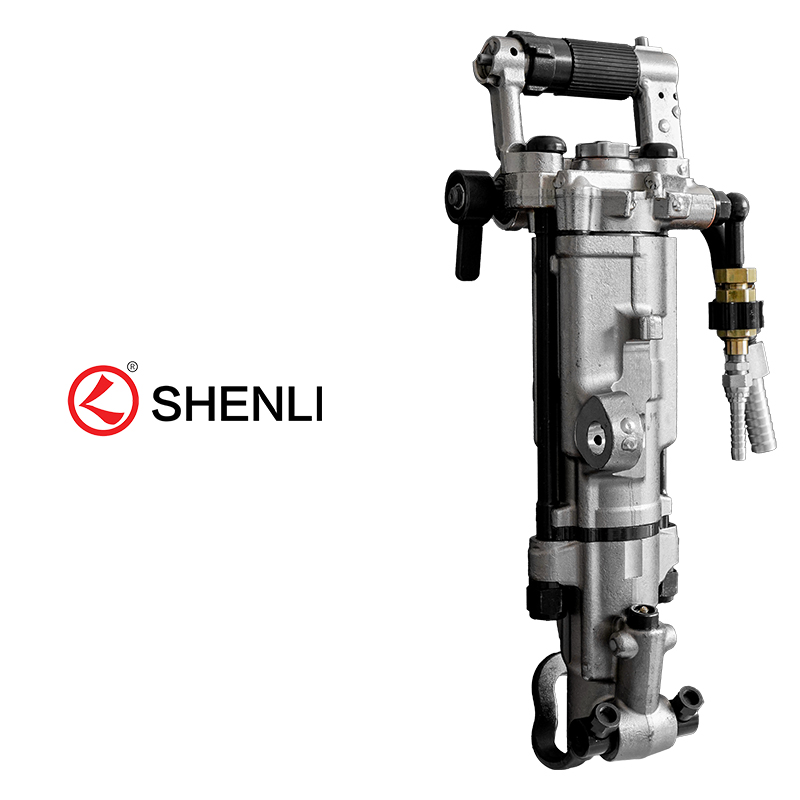

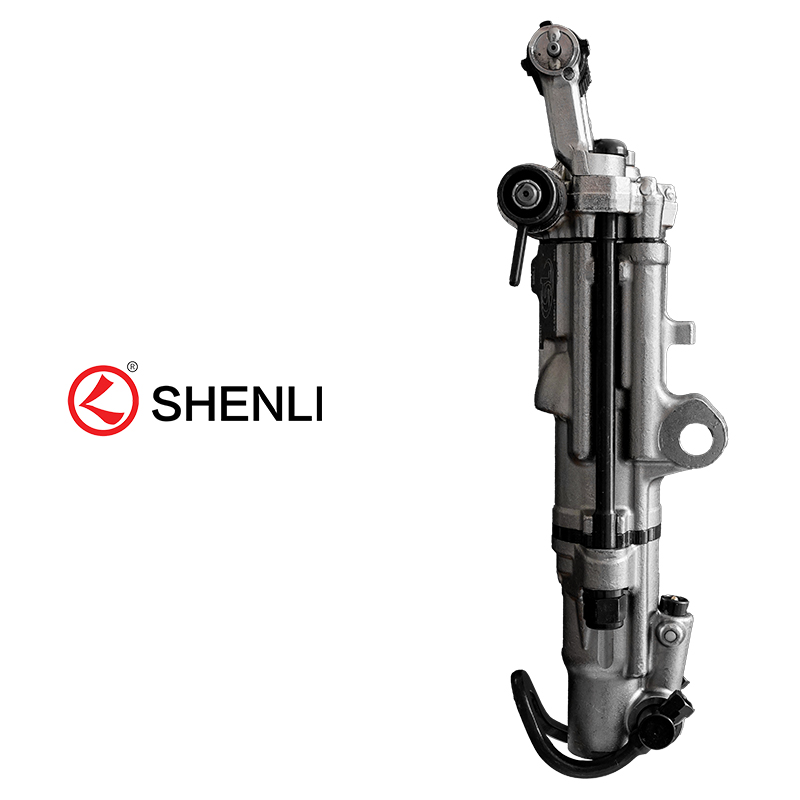

S83 Pneumatic Air Leg Rock Drill

Short Description:

The S83 Air Leg Rock Drill is a high-performance Chinese-made pneumatic drilling machine widely applied in mining, tunneling, quarrying, road construction and water conservancy projects. Powered by compressed air, this portable pneumatic rock drill features strong impact force, fast penetration speed and stable working performance, efficiently drilling blast holes, anchor holes and various rock holes for hard rock operation scenarios.
Adopting optimized valve structure and premium wear-resistant materials, the S83 pneumatic rock drill achieves low air consumption, flexible startup and minimal failure rate. Its integrated adjustable air leg supports multi-angle drilling, including vertical, horizontal and inclined holes, greatly improving construction flexibility. The lightweight and ergonomic design reduces operator fatigue and ensures long-duration continuous operation.
Rigorously tested for harsh working conditions, this heavy-duty air leg rock drill delivers outstanding durability, shock resistance and long service life with simple daily maintenance. As a cost-effective and reliable industrial drilling tool, the S83 rock drill is factory-supplied with stable quality, becoming the preferred equipment for outdoor engineering and rock breaking projects worldwide.


  • product number: S83
  • weight（kg）: 33.4
  • length（mm）: 688
  • bit head size（mm）: 22*108
  • air consumption（L/S）: ≤53.3
  • percussive frequency（Hz）: ≥41
  • borehols diameter（mm）: 34-45
  • piston diameter（mm）: 76.2
  • piston stroke（mm）: 118
  • working air pressure（Mpa）: 0.63
  • drilling depth（M）: 6
    • Download as PDF

    Product Detail

    rock drill

    Product Tags

    Air Leg Rock Drill

    rock drill bit China supplier

    S83 Air Leg Rock Drill

    Secoroc S83 adopts the mature technology of SHENLI，is an advanced air-leg pneumatic rock drill machine nowadays. Because of its higher efficiency, it is especially suitable to be used in the construction of railway, highway, and hydroelectricity. And it is also the best renewal generation products in the metallurgy, coal mining industries and the tunnel excavation.
    Quality
    %
    https://www.y-sld.com/rock-drilljack-drill/

    SPECIFICATIONS for S83 pneumatic rock drilling machine with air leg

    Product Model
    S83
    Weight(kg)
    33.4
    Length(mm)
    688
    Bit Head Size(mm)
    22*108
    Air Consumption(L/S)
    ≤53.3
    Percussive Frequency(Hz)
    ≥41
    Boreholes Diameter(mm)
    34-45
    Piston Stroke(mm)
    76.2
    Piston Stroke(mm)
    118
    Working Air Pressure(Mpa)
    0.63
    Drilling Depth(M)
    6
    Air Leg Rock Drill
    If you’re searching for a tough, high-output drilling tool for your job site, the S83 jackleg drill from Xianghe Shenli is exactly what you need. As a premium S83 pneumatic rock drill and reliable S83 air leg rock drill, this S83 rock drill (also simply named S83 drill) delivers steady, powerful impact force to drill through hard rock with ease. Unlike ordinary drilling tools on the market, this model is built for all-day heavy-duty use, delivering consistent drilling speed and stable performance, making it a top pick for mining, quarrying, tunneling and general construction projects worldwide.
    Perfect for underground operation, ourS83 jackleg rock drill for mining and S83 mining pneumatic drill acts as a professional S83 underground rock drilling machine. It handles daily underground mining, ore extraction, mine development and roadway drilling without frequent failures. For quarry field work, the S83 pneumatic drill for quarry works as a high-efficiency S83 quarry drilling machine, ideal for stone drilling, rock splitting and bulk rock breaking. For tunnel engineering, the S83 air leg drill for tunneling serves as a precision S83 tunnel boring rock drill, fully capable of tunnel excavation, roadway shaping and various underground infrastructure drilling tasks.
    https://www.y-sld.com/rock-drilljack-drill/

    Detailed introduction

    https://www.y-sld.com/pusher-leg-drill/

    S83 Air Leg Rock Drill



    Specially optimized for harsh working conditions, this S83 rock drill for hard rock adopts an upgraded pneumatic drive system, featuring stronger impact power, faster drilling penetration and more stable air pressure operation. It works perfectly as an S83 pneumatic leg drill, multifunctional S83 pneumatic breaker and high-efficiency S83 rock breaking drill, realizing multi-scene use with one single device. As a durable pneumatic jackleg drill and heavy-duty S83 industrial jackleg rock drill, it supports long-time continuous operation on complex sites, effectively reducing equipment maintenance frequency and cutting your overall project operating costs.



    S250
    https://www.y-sld.com/pusher-leg-drill/

    S83 Air Leg Rock Drill



    We designed this tool with field operators in mind. This S83 light weight rock drill is ultra-portable and labor-saving to operate. As a practical S83 portable air leg drill and easy-control S83 hand held jackleg drill, it moves freely in narrow tunnels, cramped mine passages and limited construction spaces. Operators can finish all S83 stone drilling jackleg drill tasks effortlessly with flexible steering. Additionally, it supports professional wet drilling function, working as a safe S83 wet type rock drill to control construction dust, comply with global site safety standards and create a healthier working environment.



    Advantages
    This versatile S83 mine drilling equipment and practicalS83 rock drilling tool covers almost all rock drilling scenarios. It works as a high-productivity S83 ore mining drill machine for ore mining and mineral extraction, a stable S83 air powered rock drill for general engineering projects, a reliable S83 construction rock drill for road rebuilding, foundation drilling and rock demolition, as well as an accurate S83 mine exploration drill for geological survey and resource exploration. With outstanding site adaptability, stable working performance and long service lifespan, it has become the most cost-effective pneumatic drilling equipment for global construction and mining contractors.

    DETAIL VIEW

    https://www.y-sld.com/pusher-leg-drill/
    https://www.y-sld.com/pusher-leg-drill/
    https://www.y-sld.com/pusher-leg-drill/
    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c Air-leg Oil feeder Drill stem Aiguille Bit head

    We have made hand-held rock drills

    and air-leg rock drills such as y19a, y26

    ty24C, yt27, yt28, yt29a, YT29S, S250, S83 etc.

    PERFECT QUALITY ASSURANCE
    https://www.y-sld.com/pusher-leg-drill/

    GUARANTEED SAFE & SECURE CHECKOUT

    未标题-2 拷贝

    · Tracking order traceability.

    · On-time delivery guarantee

    · 100% qroduct qualification rate

    Delivery for :

    Express delivery

    For the Goods' Value lower than USD1000 Like 1set or 2 set. We need send it to you by Express.Please tell us your city and postcode for the courier cost.



    Time

    Delivery by sea: After it was delivered to the seaport . We will tell you the shipping time and arrival time .

    Sea Freight

    For the Goods' Value more than USD 1000.Like ≥3 set. We could send it to you by sea. Please tell us your seaport for the Freight cost,In addition, we can also help you consult the shipping price

    Air Freight

    Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport . We will tell you the Express tracking number .

    Freight Forwarding

    If you have shipping agent in china. please let your agent contact us.



    Services

    Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number .

    FAQ：

    1. : Are you factory or trade company?
    A: We are factory. And we have ourselves trading company.
    2: Warranty terms of your machine?
    A: 3 months for the core components and technical support according to your needs.
    3: Will you provide some spare parts of the machines?
    A: Yes, we have most of the spare parts in stock.4: Which payment term can you accept?
    A: 30% T/T in advanced, 70% T/T before the delivery.
    5: Can you accept OEM orders?
    A: Yes, we have high specialized and rich experienced team, OEM orders are highly welcome.
    6: Which trade term can you accept?
    A: FOB, CIF, CFR, EXW, CPT, etc.
