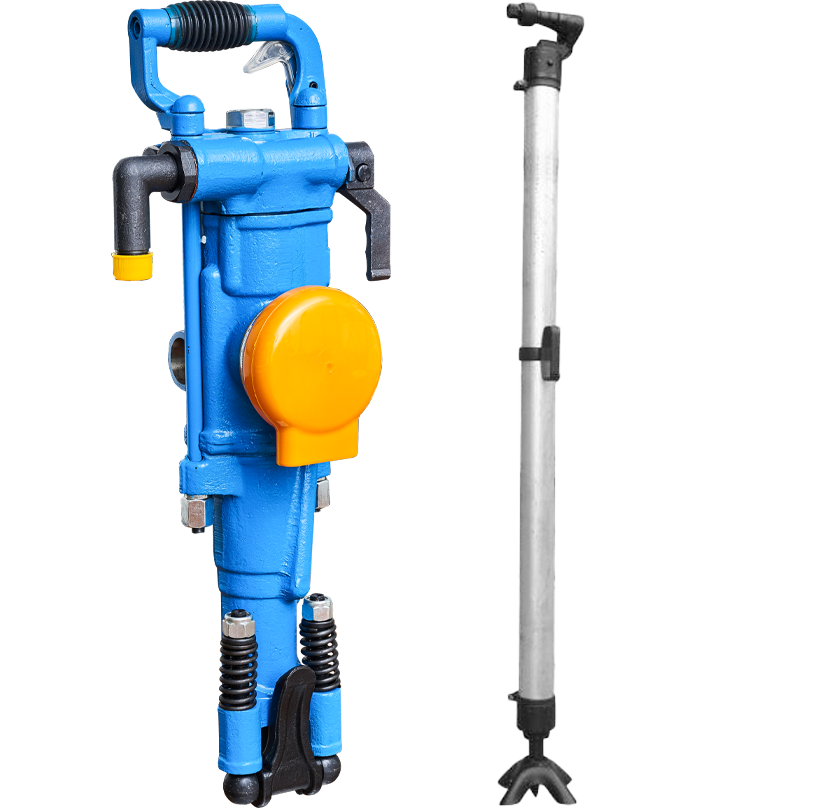

YT28 pusher leg rock drill

Short Description:

The YT28 pneumatic drill adopts the design technology of modern rock drill and compares with similar products it has high efficiency, low noise, light weight, good economic effect and fast speed advantages. The machine is most suitable for drilling in large and medium size mines and tunnels and has been well received by Chinese users.


  • Quick Details:
  • Type: Air-legged rock drills: Power Type: Air compressor
  • Place of Origin: Hebei, China: Brand Name: Shenli
  • Usage: Mining rock drills: Voltage: 0
  • Dimension(L*W*H): 710*280*210 mm: Weight: 27.8 KG
  • Warranty: 3 years: Marketing Type: Mining rock drills
  • Machinery Test Report: Provided: Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year: Core Components: Cylinder, Shank, Head
  • Drilling Diameter: 34-42mm: Key Selling Points: High quality Cheap price
  • Mobility: Portable: Drilling Depth: Max.6m
  • Impact frequency: ≥37 Hz: Air consumption: ≤81 L/S
  • Piston diameter: 80 mm: Drilling diameter: 34-42 mm
  • Working pressure: 0.63 mpa: Piston stroke: 60 mm
  • Condition: New: Working water pressure: 0.3mpa
  • N.W: 26 Kg: Total length: 661 mm
    • Download as PDF

    Product Detail

    rock drill

    Product Tags

    Air Leg Rock Drill

    rock drill bit China supplier

    YT28 Air Leg Rock Drill

    Powerful New Pneumatic Tools for Mining
    YT28 pneumatic rock drill/Air leg rock dill is the best sales both in China and abroad. Because of reasonable design and perfect performance. YT28 pneumatic rock drill also named: air leg rock drill, Air leg rock drill, feed leg rock drill, hand held rock drill. YT28 pneumatic rock drill/ Air leg rock drill is suitable for hard rock, concrete (f=8~18) drilling, blasting, breaking works
    Quality
    %
    compressor rock drill yt29a yt28 yt27 s250 y26 y19a ty24c s82
    SPECIFICATIONS for YT series pneumatic rock drilling machine with air leg
    Model
    YT28
    YT27
    YT29A
    YT24C
    TY24
    Weight
    26kgs
    27kgs
    26.5kgs
    24kgs
    24kgs
    Length
    661mm
    668mm
    659mm
    628mm
    678mm
    Air pressure
    0.4-0.63Mpa
    0.4-0.63Mpa
    0.4-0.63Mpa
    0.4-0.63Mpa
    0.4-0.63Mpa
    Impact frequency
    ≧37HZ
    ≧39HZ
    ≧39HZ
    ≧37HZ
    ≧31HZ
    Air consumption
    ≦81L/s
    ≦86L/s
    ≦88L/s
    ≦80L/s
    ≦67L/s
    Impact energy
    ≧70J
    ≧75J
    ≧78J
    ≧65J
    ≧65J
    Cylinder*stroke
    80mm*60mm
    80mm*60mm
    82mm*60mm
    76mm*60mm
    70mm*70mm
    Air pipe diameter
    25mm
    19mm
    25mm
    25mm
    19mm
    Shank dimension
    22*108mm
    22*108mm
    22*108mm
    22*108mm
    22*108mm
    Drilling depth
    5m
    5m
    5m
    5m
    5m
    Bit diameter
    34-42mm
    34-45mm
    34-45mm
    34-42mm
    34-42mm
    未标题-2 拷贝

    Usage Scenarios

    YT28 Air Leg Rock Drill Your good companion

    rock drill s82 yt29s yt29a yt28 yt27 s250 y26 y19a ty24c

    YT28

    Our YT Air-leg rock drill machines has so many different models, including YT24,YT27,YT28,YT28A and YT29A. They are applied for wet drilling and blastng in tunnel,road construction and mining

    yt29s s82 yt29a yt28 yt27 s250 y26 y19a ty24 pneumatic rock drill s82

    Air Leg Rock Drill

    It adoptsthe latest designing technology, combined with high quality forging spare parts and easy-handling air leg to win high reputation in the global market

    rock drill s82 yt29s yt29a yt28 yt27 s250 y26 y19a ty24c...

    Shenli Machinery

    With the superiority of its high speed, low failure rate, durable wearing parts, low noise and light weight,it has strong adaptability to different poor working conditions and reduce the customer loss for spare parts replacements.

    We have made hand-held rock drills

    and air-leg rock drills such as y19a, y26

    ty24C, yt27, yt28, yt29a, YT29S, S250, etc.

    PERFECT QUALITY ASSURANCE
    未标题-2 拷贝

    Detailed introduction

    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c yt29s s82

    YT28 Air Leg Rock Drill

    Centralized operating system, flexible startup, combination of pneumatic and water, convenient usage and maintenance.low noise, low vibration, energy-efficient, durable wearing-products, strong ability in washing blast-holes and high

    YT28
    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c yt29s s82..

    YT28 Air Leg Rock Drill

    Is suitable for drilling horizontal or tiptilted blast-hole in medium hard or solid hard rock (f=8~18). It is the indispensabletool in mining, railway, transportation, water conservancy construction and earthwork projects

    Advantages
    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c.....

    YT28 Air Leg Rock Drill

    Can be used with the air leg FT160BC, equipped with transparent shell type FY200B oil tank to observe oil level, adjust oilquantity and ensure fine lubrication.

    Oil feeder

    DETAIL VIEW

    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c.s82 yt29s s82
    yt29s s82 yt29a yt28 yt27 s250 y26 y19a ty24 pneumatic rock drill...s82
    yt29s s82 yt29a yt28 yt27 s250 y26 y19a ty24 s82cpneumatic rock drill
    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c Air-leg Oil feeder Drill stem Aiguille Bit head

    GUARANTEED SAFE & SECURE CHECKOUT

    未标题-2 拷贝

    · Tracking order traceability.

    · On-time delivery guarantee

    · 100% qroduct qualification rate

    Delivery for :

    Express delivery

    For the Goods' Value lower than USD1000 Like 1set or 2 set. We need send it to you by Express.Please tell us your city and postcode for the courier cost.



    Time

    Delivery by sea: After it was delivered to the seaport . We will tell you the shipping time and arrival time .

    Sea Freight

    For the Goods' Value more than USD 1000.Like ≥3 set. We could send it to you by sea. Please tell us your seaport for the Freight cost,In addition, we can also help you consult the shipping price

    Air Freight

    Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport . We will tell you the Express tracking number .

    Freight Forwarding

    If you have shipping agent in china. please let your agent contact us.



    Services

    Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number .

    FAQ：

    1. : Are you factory or trade company?
    A: We are factory. And we have ourselves trading company.
    2: Warranty terms of your machine?
    A: 3 months for the core components and technical support according to your needs.
    3: Will you provide some spare parts of the machines?
    A: Yes, we have most of the spare parts in stock.
    4: Which payment term can you accept?
    A: 30% T/T in advanced, 70% T/T before the delivery.
    5: Can you accept OEM orders?
    A: Yes, we have high specialized and rich experienced team, OEM orders are highly welcome.
    6: Which trade term can you accept?
    A: FOB, CIF, CFR, EXW, CPT, etc.
  • Previous:
  • Next:

    • We are one of the famous rock drilling jack hammer manufacturers in China, specializing in the production of rock drilling tools with exquisite workmanship and superior materials, manufactured in strict accordance with industrial quality standards and CE, ISO9001 quality management system certification. These drilling machines are easy to install, operate and maintain. The drilling machines are reasonably priced and easy to use. The rock drill is designed to be sturdy and durable, not easily damaged, with a full range of rock drill accessories
