Jack Hammer Manual Yt29A Hand Held Rock Drill

Short Description:

YT29A air-legged rock drills are heavy-duty push-leg (air-legged) rock drills with low energy consumption, which are more suitable for drilling horizontal or inclined holes in medium-hard and hard (f=8-18) rocks, as well as drilling anchor holes upwards or downwards. It can be used with FT160A (or FT160B, 160C) according to the size of the roadway section and operating conditions, and can also be used with the drill truck or drill frame for dry or wet rock drilling. In addition, our company provides all YT29A rock drill parts as follows: piston, rotating sleeve, spiral rod, brass nut, valve set, ratchet, tower spring, manipulation valve, shank body, cylinder body, main body, brazing sleeve, brazing card, brazing card bolt, oiler, water injection valve body, fastening pin, ratchet pawl, air pipe nut, air pipe elbow, water needle, etc.


  • product model: YT29A
  • weight（kg）: 26.5
  • length（mm）: 659
  • bit head size（mm）: R22*108
  • air consumption（L/S）: ≤65
  • percussive frequency（Hz）: ≥37
  • boreholes diameter（mm）: 34-45
  • piston diameter（mm）: 82
  • piston stroke（mm）: 60
  • working air pressure （Mpa）: 0.63
  • drilling depth（M）: 5
    • Download as PDF

    Product Detail

    rock drill

    Product Tags

    Air Leg Rock Drill

    rock drill bit China supplier

    YT29S/S82 Air Leg Rock Drill

    YT29S/S82 air-leg rock drill is a heavy-duty air-leg rock drill with the characteristics of high efficiency and low consumption. It is especially suitable for use in the construction of railways, highways, hydro power, etc., and is also used for mine tunneling and various rock drilling operations in metallurgy, coal, etc. Replacement products.

    Quality
    %
    compressor rock drill yt29a yt28 yt27 s250 y26 y19a ty24c s82 yt29s

    SPECIFICATIONS for S82/YT29S  pneumatic rock drilling machine with air leg

    Cylinder diameter
    82 mm
    Piston stroke
    60 mm
    Working pressure(mpa)
    0.4-0.63Mpa
    Impact energy
    ≥50-78 J
    Air consumption
    ≤52-88 L/S
    Percussive frequency
    ≥36-39Hz
    Air Leg Rock Drill

    Usage Scenarios

    YT29S/S82 Air Leg Rock Drill Your good companion

    yt29s s82 yt29a yt28 yt27 s250 y26 y19a ty24 pneumatic rock drill

    YT29AS/S82

    YT29S/S82 air-leg rock drill is suitable for drilling horizontal and inclined holes in soft rock to hard rock. The diameter of the blast hole is generally φ34-45 mm

    yt29s s82 yt29a yt28 yt27 s250 y26 y19a ty24cpneumatic rock drill

    Air Leg Rock Drill

    Strong gas control systemEnhanced sealing results in more powerful rock impact energy. After field testing, the footage efficiency is 10%-25% higher than YT28 under different rock conditions.

    yt29s s82 yt29a yt28 yt27 s250 y26 y19a ty24 pneumatic rock drill...

    Shenli Machinery

    And the effective and economical drilling depth is 5 meters, according to the size of the roadway section and operating conditions It can be matched with FT160A air leg, FT160C long air leg, FT160B air leg

    We have made hand-held rock drills

    and air-leg rock drills such as y19a, y26

    ty24C, yt27, yt28, yt29a, YT29S, S250, etc.

    PERFECT QUALITY ASSURANCE

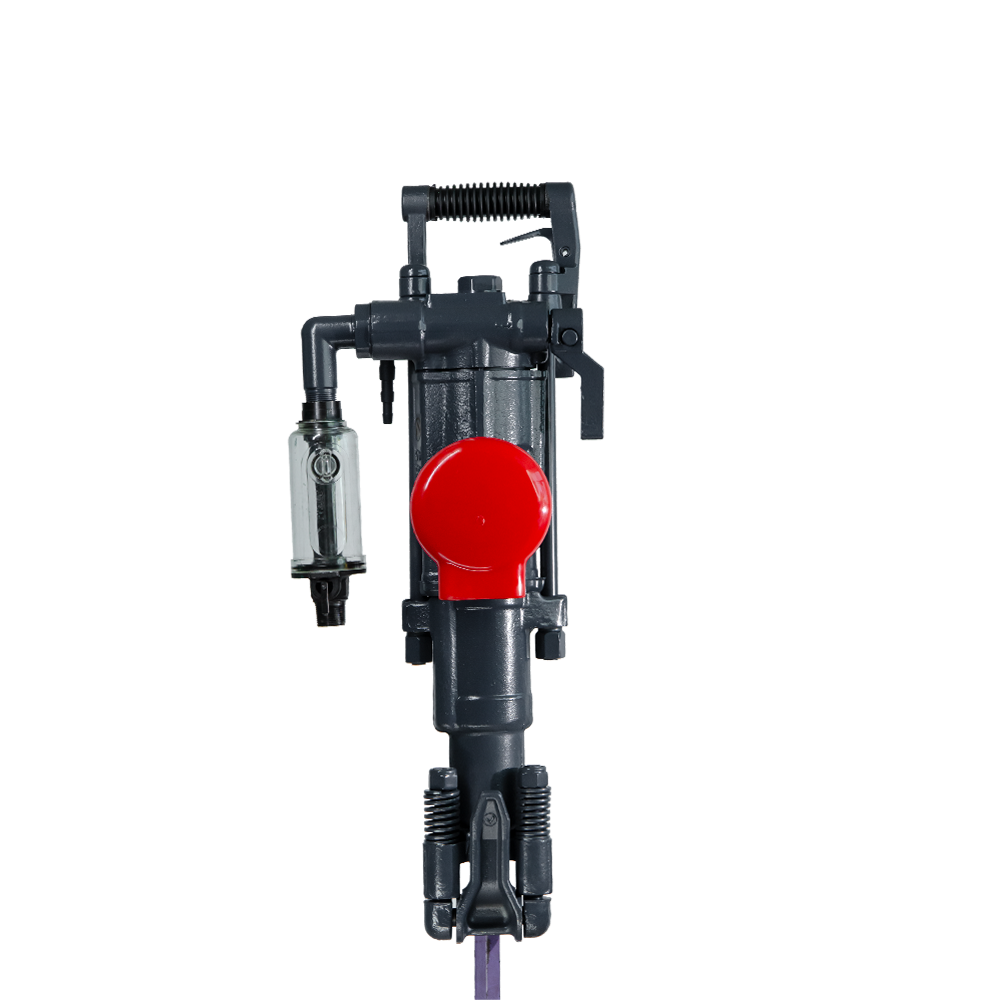

    s82 air leg rock drill 1

    Detailed introduction

    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c yt29s s82

    YT29S/S82 Air Leg Rock Drill

    YT29S/S82 Mine Drilling Rig The torque is increased by more than 10%, and the rock drilling is kept smooth at all times. Enhanced airtightness generates stronger impact energy The rock drilling speed is effectively increased by 10%-25%
    YT29S/S82
    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c yt29s s82..

    YT29S/S82 Air Leg Rock Drill

    Advanced rotary structure the torque is more than 10% higher than that of YT28. It can be used smoothly under various complicated rock conditions and exerts rapid rock drilling effect.

    Advantages
    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c.....

    YT29S/S82 Air Leg Rock Drill

    Two new cooling andlubricating structures are added to extend the life of accessories and drill rods and reduce costs. When the water pressure is higher than the wind pressure, the water injection valve automatically reduces pressure to prevent water from pouring into the body. The work efficiency is increased by 10%-25% compared with ordinary rock drills

    Oil feeder

    DETAIL VIEW

    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c.s82 yt29s
    ROCK DRILL JACK HAMMER yt29a yt28 yt27 s250 y26 y19a ty24c s82 yt29s
    JACK HAMMERS yt29a yt28 yt27 s250 y26 y19a ty24c s82 yt29s
    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c Air-leg Oil feeder Drill stem Aiguille Bit head

    GUARANTEED SAFE & SECURE CHECKOUT

    未标题-2 拷贝

    · Tracking order traceability.

    · On-time delivery guarantee

    · 100% qroduct qualification rate

    Delivery for :

    Express delivery

    For the Goods' Value lower than USD1000 Like 1set or 2 set. We need send it to you by Express.Please tell us your city and postcode for the courier cost.



    Time

    Delivery by sea: After it was delivered to the seaport . We will tell you the shipping time and arrival time .

    Sea Freight

    For the Goods' Value more than USD 1000.Like ≥3 set. We could send it to you by sea. Please tell us your seaport for the Freight cost,In addition, we can also help you consult the shipping price

    Air Freight

    Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport . We will tell you the Express tracking number .

    Freight Forwarding

    If you have shipping agent in china. please let your agent contact us.



    Services

    Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number .

    FAQ：

    1. : Are you factory or trade company?
    A: We are factory. And we have ourselves trading company.    2: Warranty terms of your machine?
    A: 3 months for the core components and technical support according to your needs.3: Will you provide some spare parts of the machines?
    A: Yes, we have most of the spare parts in stock.

    4: Which payment term can you accept?
    A: 30% T/T in advanced, 70% T/T before the delivery.

    5: Can you accept OEM orders?
    A: Yes, we have high specialized and rich experienced team, OEM orders are highly welcome.

    6: Which trade term can you accept?
    A: FOB, CIF, CFR, EXW, CPT, etc.
