G7(TCA-7)Pneumatic Pick: Powering Through Hard Rock with Ease Featured Image
  • G7(TCA-7)Pneumatic Pick: Powering Through Hard Rock with Ease
  • G7(TCA-7)Pneumatic Pick: Powering Through Hard Rock with Ease
  • G7(TCA-7)Pneumatic Pick: Powering Through Hard Rock with Ease
  • G7(TCA-7)Pneumatic Pick: Powering Through Hard Rock with Ease
  • G7(TCA-7)Pneumatic Pick: Powering Through Hard Rock with Ease

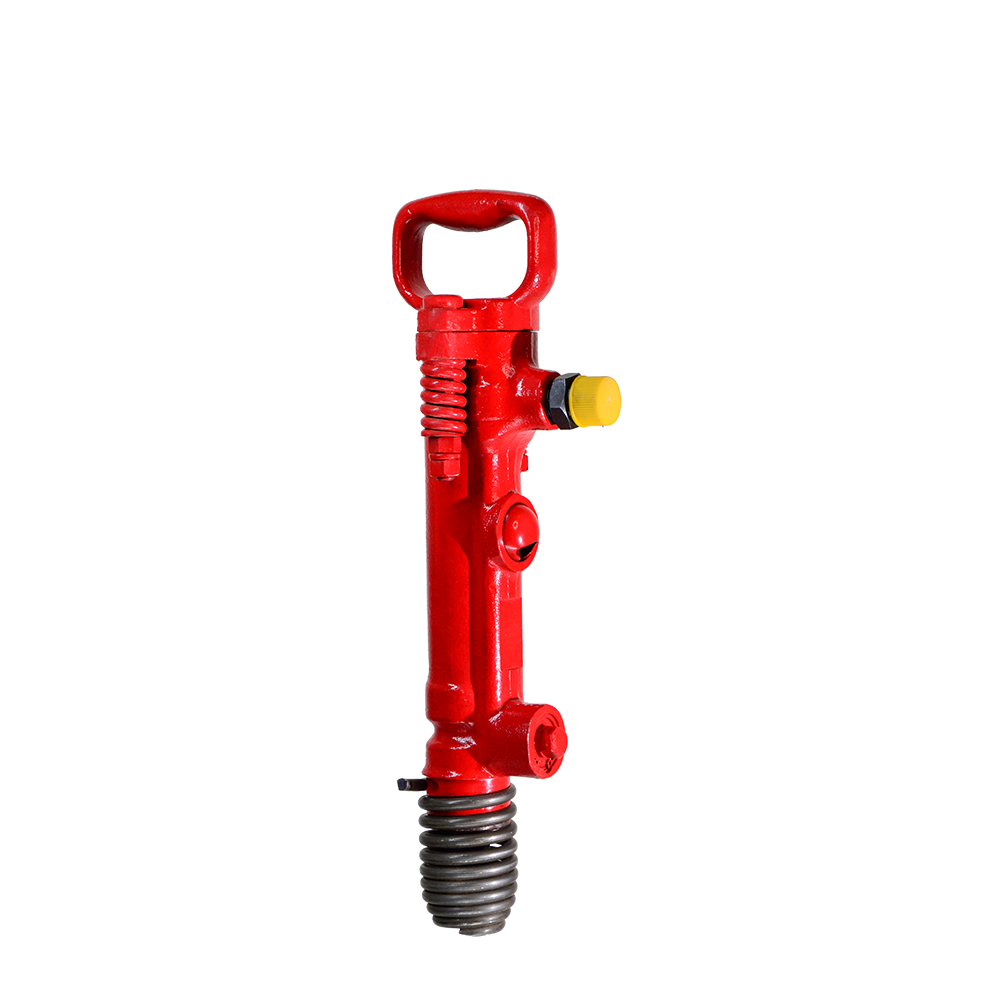

G7(TCA-7)Pneumatic Pick: Powering Through Hard Rock with Ease

Short Description:

TCA-7 Air Pick driven by compressed As a small breaking tool. it features light weight. easy operation. auto stop after object is broken.It is widely used in mining coal,soft rock,digging pits for post brackets,digging slots, braking concrete,frozen earth in construction and installation engineering,or construction operations in the foundry industry.


  • Product Model: G7(TCA-7)
  • Piston diameter (mm): 35
  • Piston stroke (mm): 120
  • Strike frequency (b.p.m.): 1250
  • Weight (kg): 7.2
  • Total length (mm): 465
  • Gas consumption (m ³/min): 1.0
  • Inner diameter of trachea (mm): 19
  • Drill tail specification (mm): R26*80
  • Inlet size (P/T): 3/4
    • Download as PDF

    Product Detail

    rock drill

    Product Tags

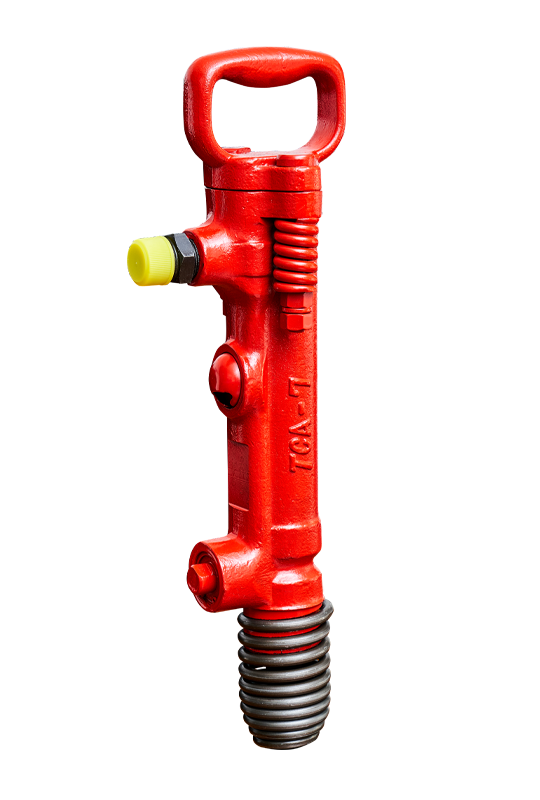

    TCA-7 AIR PICK

    TCA-7 air pick adopts the technology of Japan's Toko Air, and is a small breaking tool powered by compressed air.

    With light weight, easy to operate, and automatically stop working after breaking the workpiece The characteristics of work. Widely used in coal mining, mining soft rocks, creating column foot pits, opening ditches, and construction work in the building installation industry. It is widely used in coal mining, soft rock mining, pillar foot pit, ditch opening, construction work in crushing coagulation, freezing and rusting industries in construction and installation projects.

    The ideal tool for foundation construction

    TCA-7 Handheld Jack Hammer Rock Breaker Hammer

    More horsepower, higher efficiency and longer life

    Extra large. Extra thick. Crushing work of extra hard objects

    Your good helper

    LEARN MORE
    pneumatic breakers tpb60 tpb90 tpb40 TCA7 tcd20 B87C B37 AIR PICK TCA7

    Main parameters of air pick products

    Parameter/name tca-7 tcd-20 rb777 tpb-40 tpb-60 tpb-90
    Piston diameter 35mm 42.85 57mm 44mm 57.15mm 66.67mm
    Piston stroke 120mm 60mm 189mm 146mm 100mm 152mm
    Percussive frequency 1250 B.P.M 2000 B.P.M 18.3 Hz 1050 B.P.M 1400 B.P.M 1400 B.P.M
    N.W 7.2kg 10kg 37kg 18kg 30kg 42kg
    Length 465MM 520MM 733MM 660MM 645MM 723MM
    Air consumption 1.0m³/min 1.1 m³/min 0.63Mpa 1.6 m³/min 2.0 m³/min 2.2 m³/min
    Tracheal diameter 19 19 19 19 19 19
    bit head size R26*80 R26*80 R32*152 R25*108 R32*152 R32*152

    FAMOUS BRANDS

    https://shenlimachinery.en.made-in-china.com/product/OFwGQmubLKpd/China-2025-Top-Rated-Affordable-Hand-Held-Jack-Hammer-TCA7-G7-Concrete-Pneumatic-Breaker-for-Sale.html

    SOLD WORLDWIDE

    IDEAL CRUSHING TOOLS

    pneumatic air pick tca7 tpb60 tpb90 s250

    TCA-7

    G series pneumatic hammer splitter is powered by compressed air which is decentralized in turn to both ends of the cylinder by the tubular distributing valve.

    pneumatic air pick tca7 tcd20 tpb60 tpb90

    AIR PICK

    TCA-7 portable impact air pick/industrial pneumatic tools use Japan's East air technology, is compressed air-driven small crushing tools

    pneumatic air pick tca7 tpb60 tpb90 s250 tcd20

    SHENLI

    The impact hammer reciprocating motion strike onto the shank end of the point rod, which will be drilled into the rock, and break it into pieces.

    OUR ADVANTAGES

    Safe and reliable

    Shenli pay attention to the details of the user experience for the majority of customers to provide the most perfect quality assurance

    High quality material

    The products are forged with super hard steel, quality first, customer first. Innovation and quality oriented Strive to be the pioneer of the industry!

    One machine for multiple uses

    Especially suitable for oversized. Extra thick. It is an ideal tool for the construction of mining, bridge dyeing, road and municipal infrastructure projects.

    Easy inspection and repair

    Product horsepower, higher efficiency, longer life, easy access, universal accessories

    Powerful power

    Crushing tools powered by compressed air, can efficiently complete the crushing work of reinforced concrete, rock, etc.

    Factory direct sales

    The company introduces the technology of foreign production enterprises such as Epiroc and Furukawa of Japan. We have become a large scale and high reputation pneumatic mining machinery manufacturer in China.

    TCA-7 AIR PICK

    Breaking tools

    TCA-7 G7 jack hammer breakerair pick mini rock drill machine
    It’s light and easy to operate, crushing work automatically stop working after the characteristics. Widely used in coal
    mining, mining soft rock, planer foot pit, open ditch, construction and installation works broken concrete, frozen soil, casting
    industry construction operations

     NO.1>

    pneumatic breakers tpb60 tpb90 tpb40 TCA7
    pneumatic breakers tpb40 tpb60 tpb90

    TCA-7 AIR PICK

    Details show - Trigger

    After inserting the pickaxe braze there is a trigger switch in the braze tail part, press the machine trigger, the crusher starts to work, light weight, easy to operate, and automatically stop working after breaking the workpiece.

    <NO.2

    TCA-7 AIR PICK

    Details show-Air Connection Tube

    TCA-7 small crusher connected to the air compressor installed pickaxe braze press machine to work, with light weight and high efficiency, can quickly crush, is a good helper for you International common accessories, factory direct sales



    NO.3>

    pneumatic breakers tpb60 tpb90 tpb40
    air hammer TPB90 TPB60 TPB40 TCA7 TCD20

    GUARANTEED SAFE & SECURE CHECKOUT

    未标题-2 拷贝

    · Tracking order traceability.

    · On-time delivery guarantee

    · 100% qroduct qualification rate

    Delivery for :

    Express delivery

    For the Goods' Value lower than USD1000 Like 1set or 2 set. We need send it to you by Express.Please tell us your city and postcode for the courier cost.



    Time

    Delivery by sea: After it was delivered to the seaport . We will tell you the shipping time and arrival time .

    Sea Freight

    For the Goods' Value more than USD 1000.Like ≥3 set. We could send it to you by sea. Please tell us your seaport for the Freight cost,In addition, we can also help you consult the shipping price

    Air Freight

    Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport . We will tell you the Express tracking number .

    Freight Forwarding

    If you have shipping agent in china. please let your agent contact us.



    Services

    Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number .

    FAQ：

    1. : Are you factory or trade company?
    A: We are factory. And we have ourselves trading company.
    2: Warranty terms of your machine?
    A: 3 months for the core components and technical support according to your needs.
    3: Will you provide some spare parts of the machines?
    A: Yes, we have most of the spare parts in stock.
    4: Which payment term can you accept?
    A: 30% T/T in advanced, 70% T/T before the delivery.
    5: Can you accept OEM orders?
    A: Yes, we have high specialized and rich experienced team, OEM orders are highly welcome.
    6: Which trade term can you accept?
    A: FOB, CIF, CFR, EXW, CPT, etc.
