B47 pneumatic pick: The Perfect Blend of Power and Precision

Short Description:

B47 pneumatic pick is a tool powered by compressed air, which is distributed to both ends of the cylinder body by a cutting wheel. The hammer undergoes reciprocating motion and impacts the tail of the steel chisel through a cushion hammer, chiseling the steel chisel into the concrete layer and splitting it into blocks. It has significant characteristics such as low vibration, fast crushing speed, safe use, and flexible operation.


  • Product Model: B47
  • Piston diameter (mm): 47.6
  • Piston stroke (mm): 100
  • Strike frequency (b.p.m.): 1400
  • Weight (kg): 21.5
  • Length (mm): 550
  • Gas consumption (m ³/Min): 1.6
  • Tracheal inner diameter (R/Min): 19
  • Drill tail size (mm): 25*105
  • Inlet size (P/T): 3/4
    • Download as PDF

    Product Detail

    rock drill

    Product Tags

    B47 AIR PICK

    B47 air pick adopts the technology of Japan's Toko Air, and is a small breaking tool powered by compressed air.

    B47 pneumatic pick is a tool powered by compressed air. The compressed air is distributed to both ends of the cylinder by cutting wheel, so that the hammer body carries out reciprocating motion through the cushion hammer to impact the tail of the steel drill, and the steel drill is chiseled into the concrete layer, so that it is split into blocks. With small vibration, fast crushing speed, safe use, flexible operation and other remarkable characteristics. B47 pneumatic pick working principle

    The ideal tool for foundation construction

    B47 Handheld Jack Hammer Rock Breaker Hammer

    More horsepower, higher efficiency and longer life

    Extra large. Extra thick. Crushing work of extra hard objects

    Your good helper

    LEARN MORE
    pneumatic breakers tpb60 tpb90 tpb40 TCA7 tcd20 B87C B37 AIR PICK B47

    Main parameters of air pick products

    Product name
    B47
    Application
    Construction Crushing
    Piston Diameter
    47.6 mm
    Piston Stroke
    100 mm
    Percussive Frequency
    1400 B.P.M
    Weight
    21.5kg
    Length
    550mm
    Air Tube Size
    19mm
    Shank Size
    R25*105mm
    After-sales Service Provided
    Online support

    FAMOUS BRANDS

    未标题-2 拷贝

    SOLD WORLDWIDE

    IDEAL CRUSHING TOOLS

    V

    S

    TPB-60 Air pick Before crushing vs after crushing

    ROCK DRILL HAMMER

    BEFORE BREAKLNG

       TPB-60

    Compressed air-powered crushing tools can efficiently complete the crushing work of reinforced concrete, rock, etc.

    other pneumatic tools

    BROKEN IN PIECES

    AIR PICK

    Is the mine, bridge dyeing, road, municipal construction The ideal tool for the construction of base boron projects

    pneumatic hammers

    AFTER BREAKAGE

    SHENLI

    Especially suitable for for extra large. Extra thick. Crushing of extra hard objects

    OUR ADVANTAGES

    Safe and reliable

    Shenli pay attention to the details of the user experience for the majority of customers to provide the most perfect quality assurance

    High quality material

    The products are forged with super hard steel, quality first, customer first. Innovation and quality oriented Strive to be the pioneer of the industry!

    One machine for multiple uses

    Especially suitable for oversized. Extra thick. It is an ideal tool for the construction of mining, bridge dyeing, road and municipal infrastructure projects.

    Easy inspection and repair

    Product horsepower, higher efficiency, longer life, easy access, universal accessories

    Powerful power

    Crushing tools powered by compressed air, can efficiently complete the crushing work of reinforced concrete, rock, etc.

    Factory direct sales

    The company introduces the technology of foreign production enterprises such as Epiroc and Furukawa of Japan. We have become a large scale and high reputation pneumatic mining machinery manufacturer in China.

    pneumatic breakers tpb40 tpb60 tpb90 B37..AIR PICK B47

    B47 AIR PICK

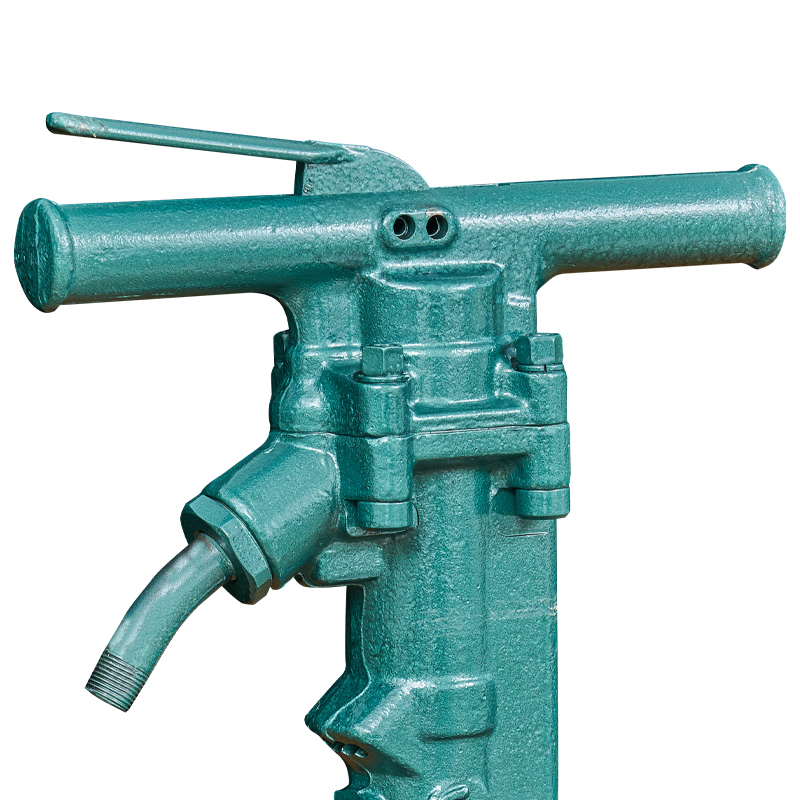

    Details show - Trigger

    B47 AIR PICK

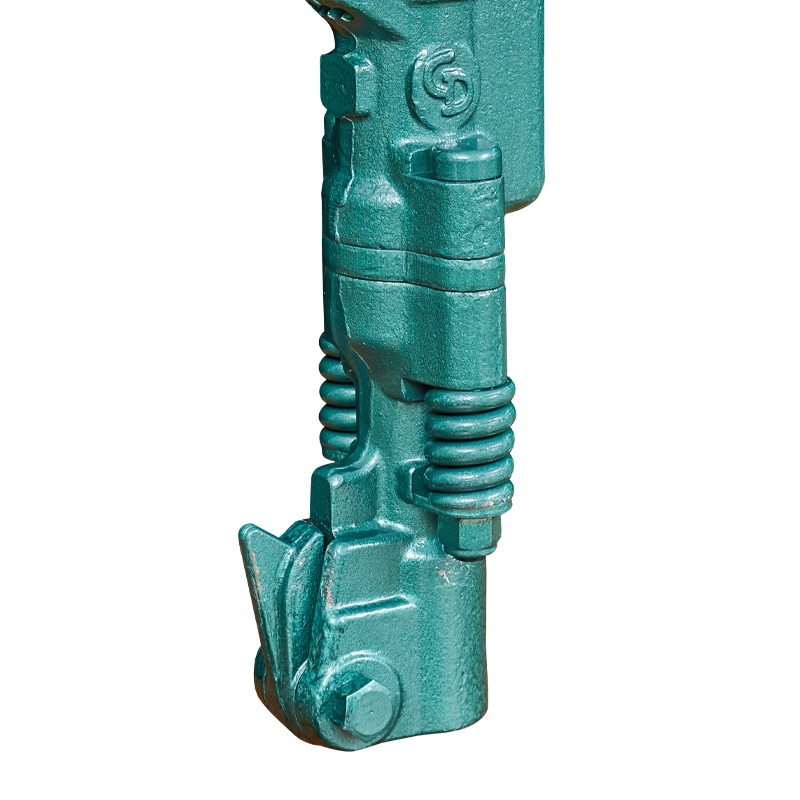

    Details show-Cylinder

    AIR PICK pneumatic breakers tpb40 tpb60 tpb90 B37....B47
    AIR PICK pneumatic breakers tpb40 tpb60 tpb90 B37...B47

    B47 AIR PICK

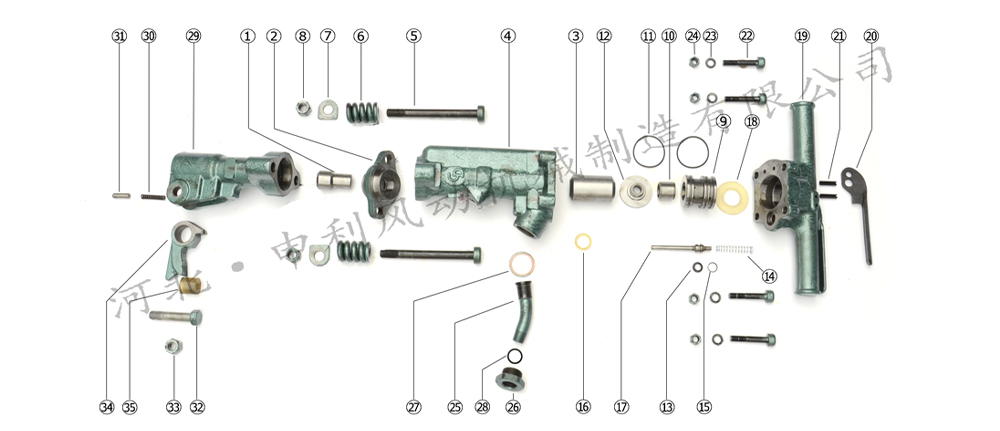

    Details show - Spray painting assembly

    B47 AIR PICK

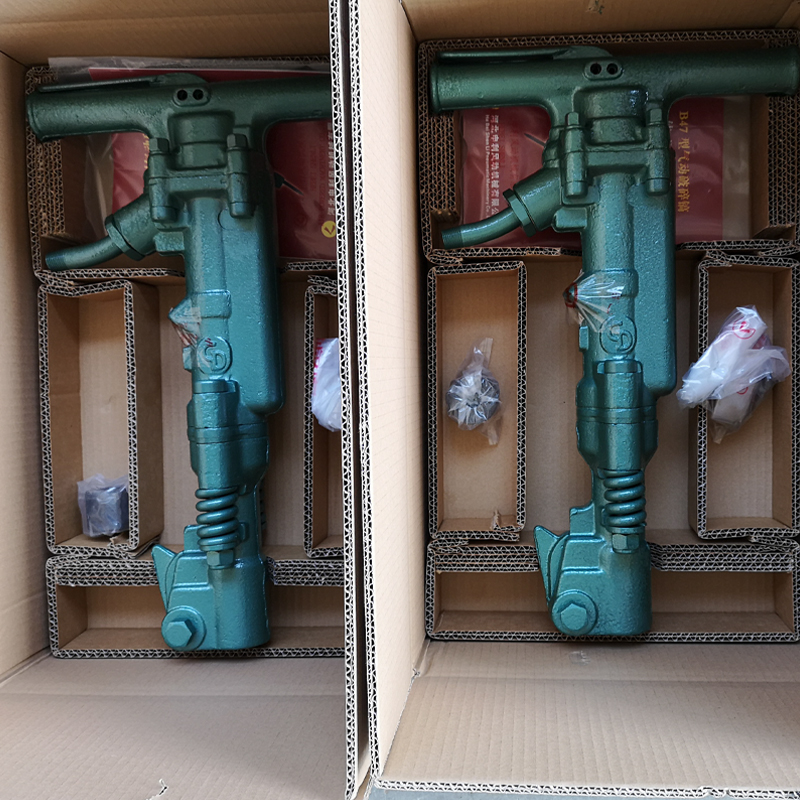

    Details show -Packaging

    AIR PICK pneumatic breakers tpb40 tpb60 tpb90 B37 B47
    AIR PICK pneumatic breakers tpb40 tpb60 tpb90 B37..B47
