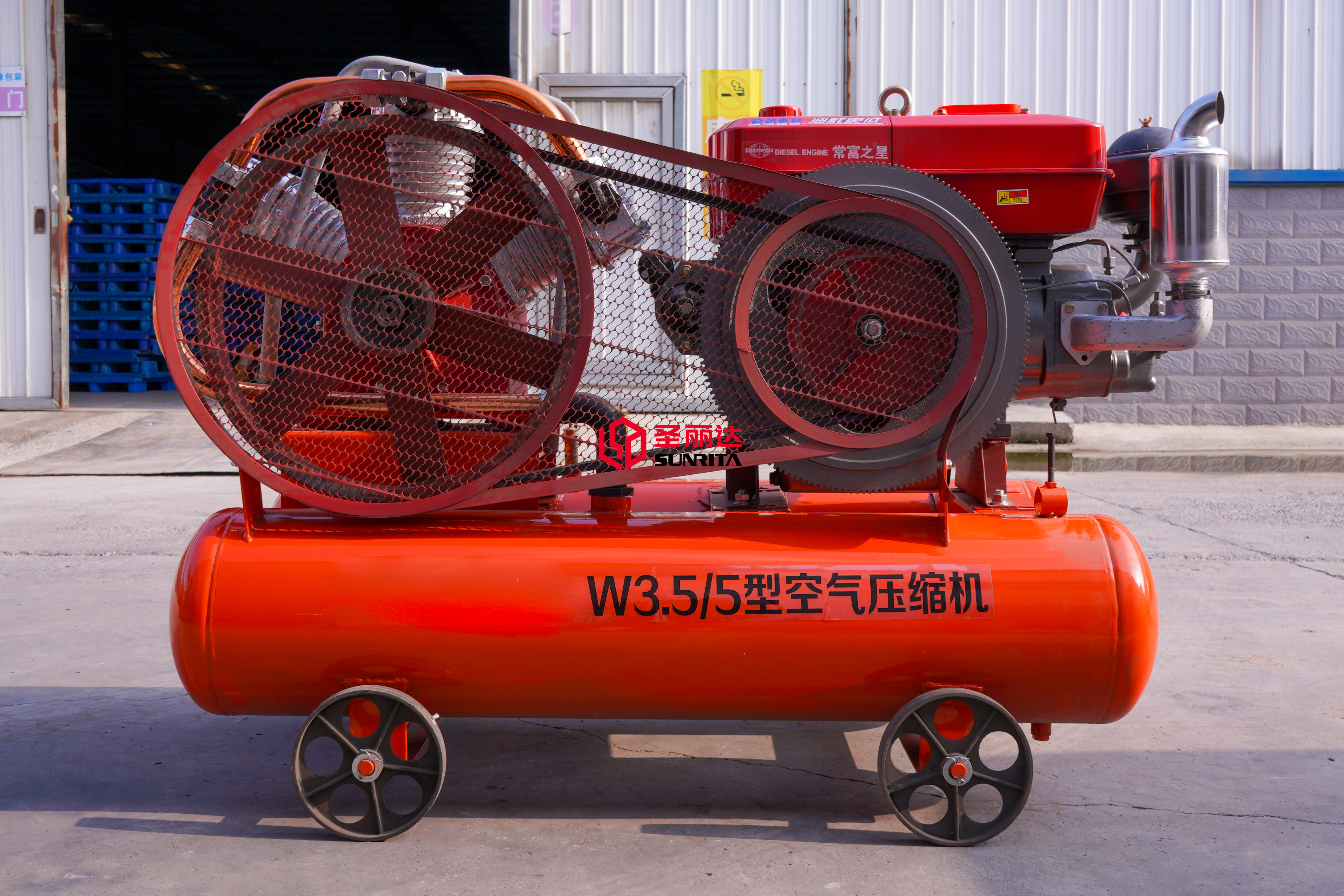

W3.5‑5 Air Compressor

Short Description:

The W3.5‑5 air compressor is a heavy‑duty mobile compression unit widely deployed on remote job‑sites, mine yards, infrastructure demolition zones and tunnel construction sites. It serves as a core air compressor for rock drill and jackhammer. This diesel‑driven model delivers continuous compressed air under high‑load outdoor conditions and can feed multiple rock‑drilling and breaking pneumatic tools running simultaneously.

Send email to us Download as PDF

Product Detail

rock drill

Product Tags

W3.5-5 AIR COMPRESSORS

rock drill bit China supplier

W3.5-5 AIR COMPRESSORS

Calibrated according to real‑world operating requirements of pneumatic equipment, this air compressor for rock drill and jackhammer achieves a measured free air delivery of 3.5 m³/min at rated working pressure of 5 bar. As a 5 bar construction air compressor, it provides fast response and steady airflow without obvious pressure drop during extended full‑load cycles. On off‑grid remote sites, it handles heavy‑duty rock drilling and breaking tasks reliably.

Main Technical Specifications

All technical indicators are validated through onsite field tests to satisfy practical pneumatic construction demands.

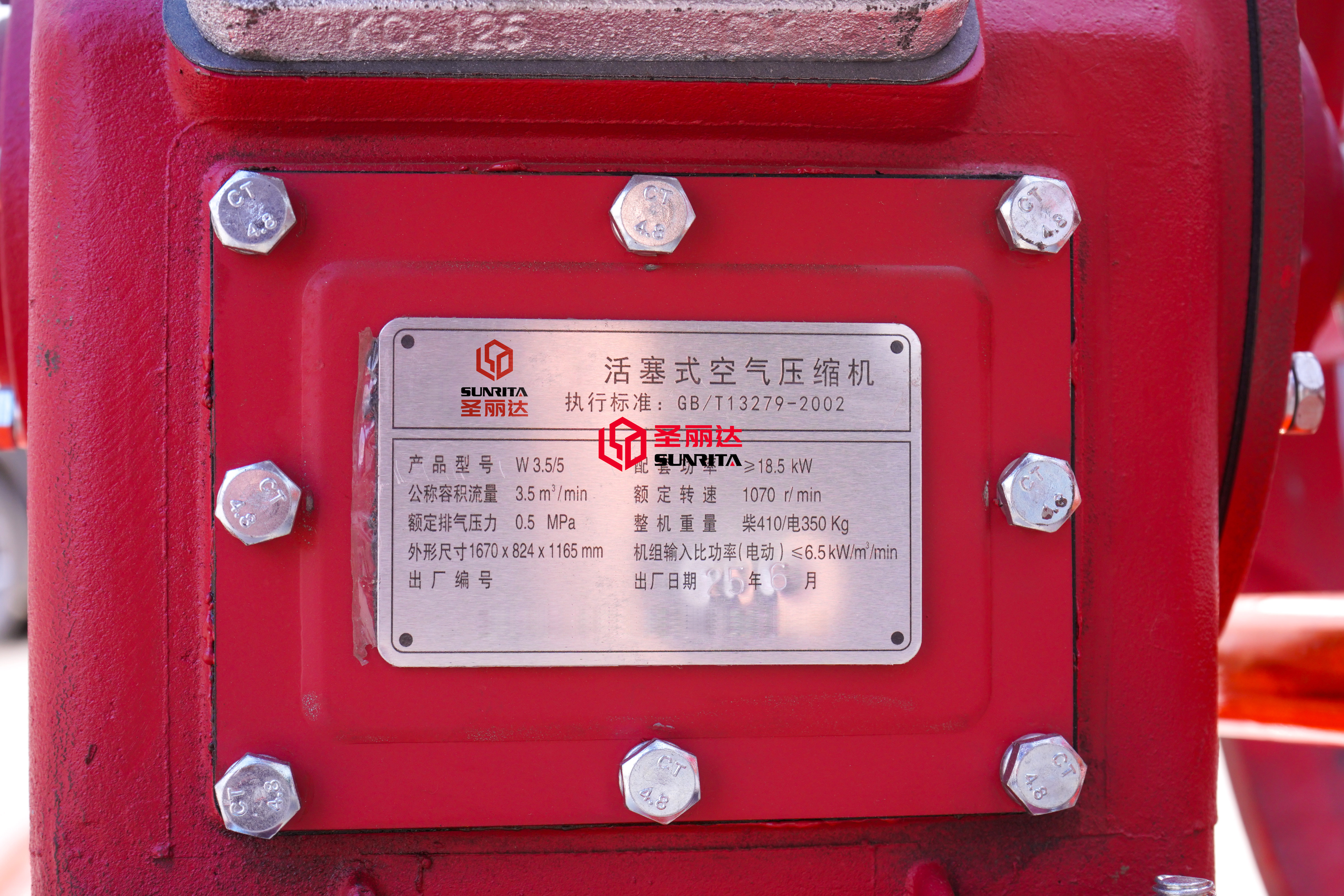

Model: W3.5‑5 Air Compressor
Free Air Delivery: 3.5 m³/min
Rated Working Pressure: 5 bar
Compatible Tools: rock drill, jackhammer, breaker hammer, pneumatic drill, down‑the‑hole drill, pneumatic wrench and other construction‑grade pneumatic implements
Power Type: diesel‑powered mobile air compressor
Working Sites: mine yards, large‑and‑medium‑scale infrastructure sites, municipal construction zones, mountainous off‑grid areas, industrial and mining locations

Quality

Structure & Configuration

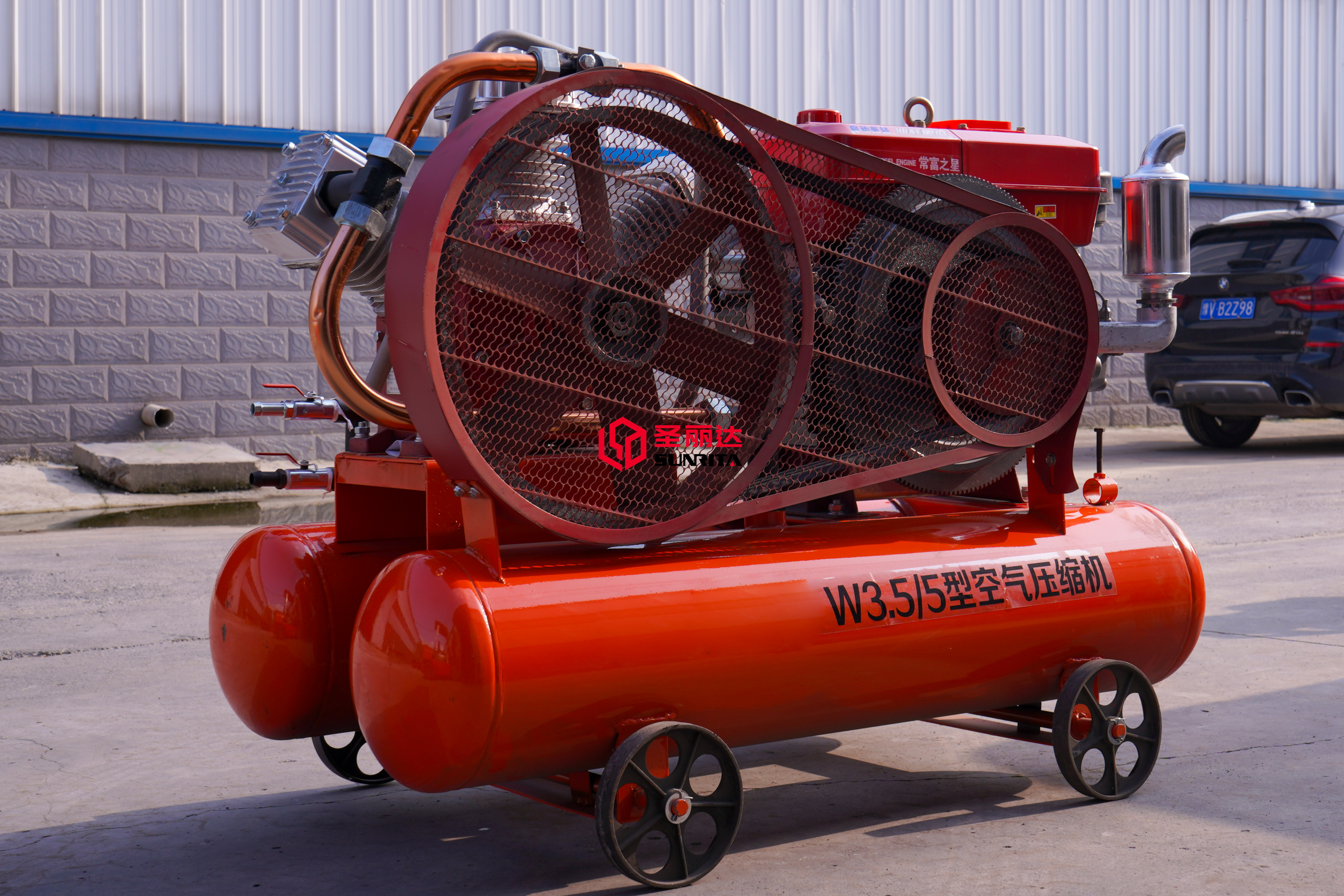

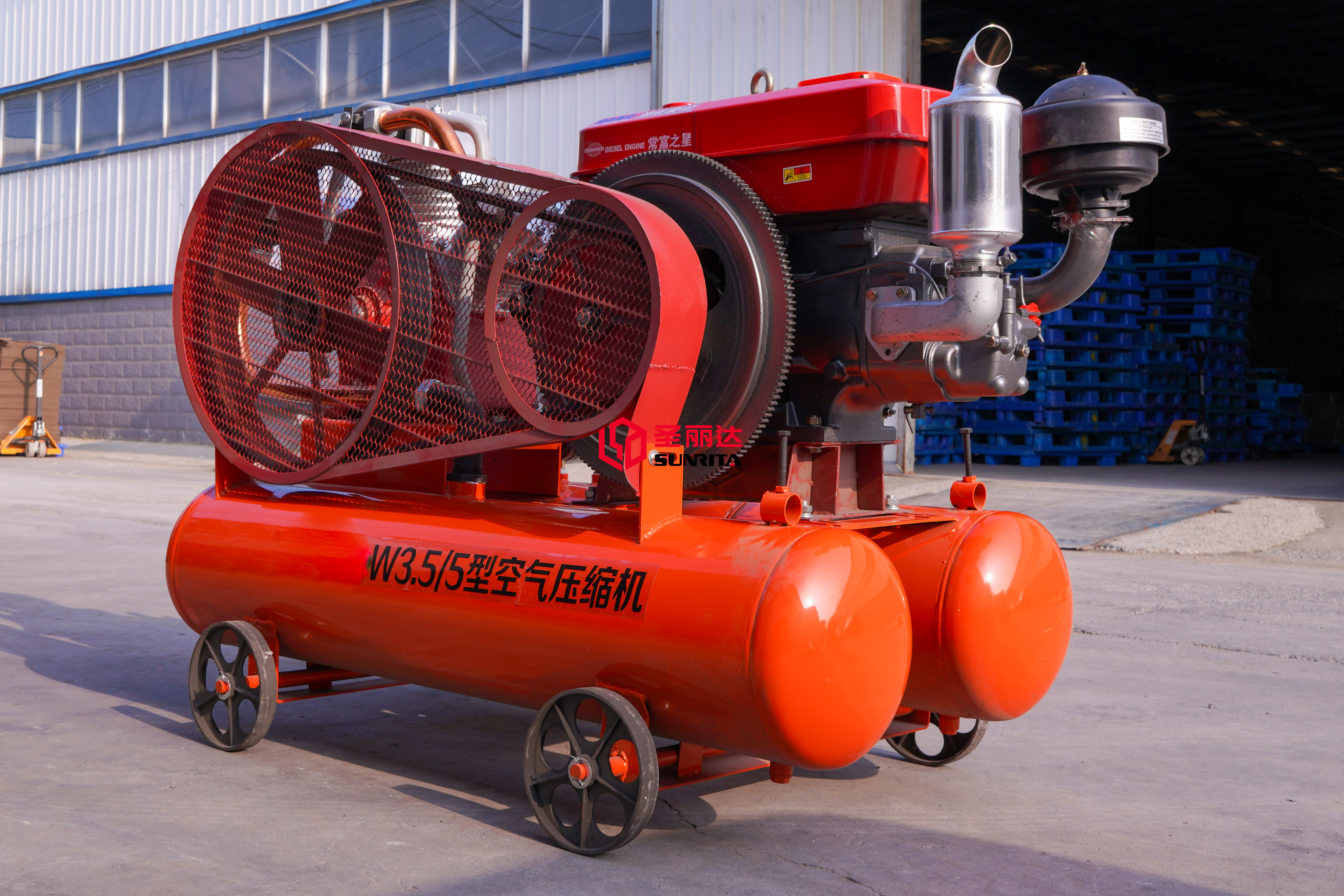

Functioning as a mine rock drill air compressor, the W3.5‑5 air compressor adopts an enhanced integrated mobile base frame fitted with reinforced travelling wheels and towing assemblies for easy relocation across construction zones, mining areas and uneven mountain terrain. The thickened frame resists impact and bumping and supports prolonged continuous operation in dusty, muddy open‑air surroundings.

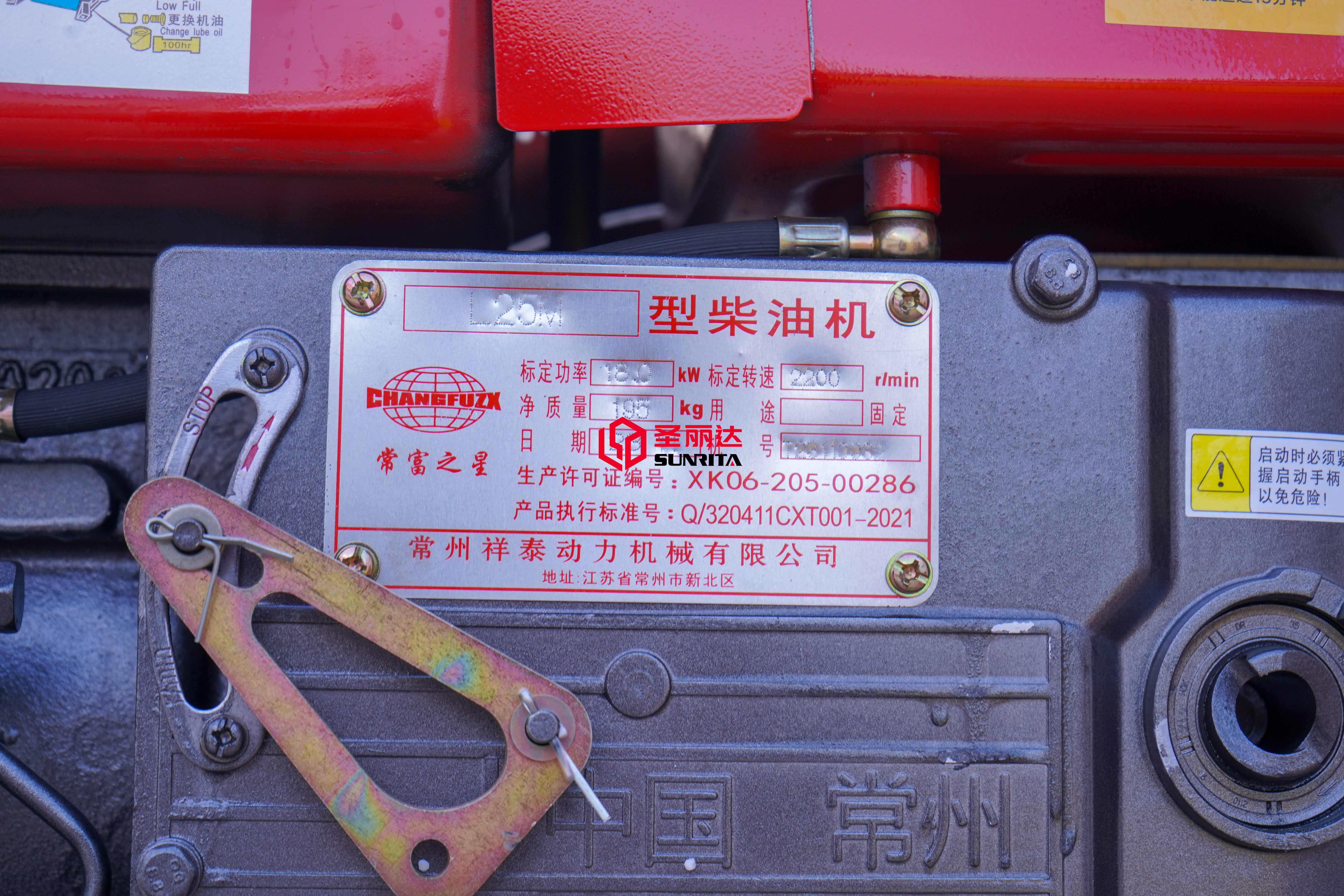

Fitted with an industrial diesel power unit, the compressor operates independent of mains electricity. The compression host and power assembly are fine‑tuned together to maintain stable air output and support parallel operation of several rock drills and jackhammers. As a reliable jackhammer supporting air compressor, it holds sufficient air reserve to meet high‑consumption demands from multiple‑tool joint work.

The control panel is simplified, integrating start‑stop control, pressure readout and multi‑level safety protection modules for straightforward onsite operation. Built‑in dust‑proof, water‑proof, overload and over‑heat protection structures reduce failure risks under harsh site conditions, making it a practical rock drill dedicated air compressor.

Item	Unit	W1.8/5	W2.85/5	W3.0/5	W3.5/5	W3.2/7	2V4.0/5	SF4.0/5
Free Air Delivery (FAD)	m³/min	1.8	2.8	3	3.5	3.2	4	4
Working Pressure	MPa	0.5	0.5	0.5	0.5	0.7	0.5	0.5
Crankshaft Speed	r/min	1180	1070	1070	1070	970	970	970
Cylinder Quantity × Bore	Z×mm	3×100	3×115	3×120	3×125	3×125	4×120	4×120
Piston Stroke	mm	80	100	100	100	110	100	100
Matched Power	-	S1100 Diesel Engine or 11kW 2-Pole Electric Motor	S1100 Diesel Engine or 15kW 2-Pole Electric Motor	S1115 Diesel Engine or 18.5kW 2-Pole Electric Motor	S1125 Diesel Engine or 18.5kW 2-Pole Electric Motor	S1125 Diesel Engine or 18.5kW 2-Pole Electric Motor	L32 Diesel Engine or 18.5kW 2-Pole Electric Motor	L32 Diesel Engine or 18.5kW 2-Pole Electric Motor
Pressure Control Mode	-	Automatic Exhaust	Automatic Exhaust	Automatic Exhaust	Automatic Exhaust	Automatic Exhaust	Intake Shut-Off	Intake Shut-Off
Lubrication Method	-	Splash Lubrication	Splash Lubrication	Splash Lubrication	Splash Lubrication	Splash Lubrication	Splash Lubrication	Splash Lubrication
Cooling Method	-	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling
Transmission Mode	-	Clutch + V-Belt	Clutch + V-Belt	Clutch + V-Belt	Clutch + V-Belt	Clutch + V-Belt	Clutch + V-Belt	Clutch + V-Belt
Overall Dimension (L×W×H)	mm	1630×750×1150	1750×940×1290	1750×940×1290	1750×940×1290	1920×690×1350	1900×1070×1260	1900×930×1235
Net Weight (Without Power Unit)	kg	150	215	215	220	285	340	265

Performance Features

Stable Air Output for Rock Drilling & Breaking Operations

This air compressor for rock drill and jackhammer features well‑matched displacement and working pressure. It delivers steady compressed air to rock drills, jackhammers and pneumatic drills and mitigates efficiency losses triggered by pressure fluctuation. Capable of enduring long cyclic heavy‑load duties, it acts as a dependable construction pneumatic air compressor.

Good Mobility for Variable Field Conditions

As a 3.5m³/min mobile air compressor, its mobile frame together with towing wheels enables flexible repositioning across work yards, mine slopes and road surfaces, ideal for projects with unfixed operating spots.

Strong Environmental Tolerance

Protective casing stands up to heavy dust accumulation, mud, moisture and high onsite temperature. It lowers component wear caused by foreign debris and works as a qualified mining air compressor under demanding mine‑site circumstances.

Low Operation Threshold

Start‑up, pressure stabilization and shutdown follow simple logic. Site personnel can operate rock drilling pneumatic equipment, mining pneumatic tools and construction breaking tools without extensive specialized training.

Application Areas

Application Scenarios

This air compressor for rock drill and jackhammer adapts to diverse field conditions:
Mining: open‑pit rock drilling, ore breaking, air supply for medium‑sized tunnel heading
Infrastructure: highway and railway subgrade breaking, large‑scale road reconstruction, slope anchor drilling
Municipal engineering: wide‑range pavement removal, mass concrete breaking, trench excavation, old‑town renovation
Off‑grid projects: mountain‑zone construction, slope stabilization, pneumatic tool air supply for power‑free locations
Industrial‑mining sites: factory foundation retrofitting, deep foundation pit breaking, bulk rock clearance, sustained rock‑drilling assignments

Compatible Pneumatic Tools

The W3.5‑5 air compressor supports various construction‑oriented pneumatic equipment:

rock drill, jackhammer, breaker hammer, pneumatic drill, down‑the‑hole drill, pneumatic wrench, rock drilling pneumatic equipment, mining pneumatic tools, construction breaking tools

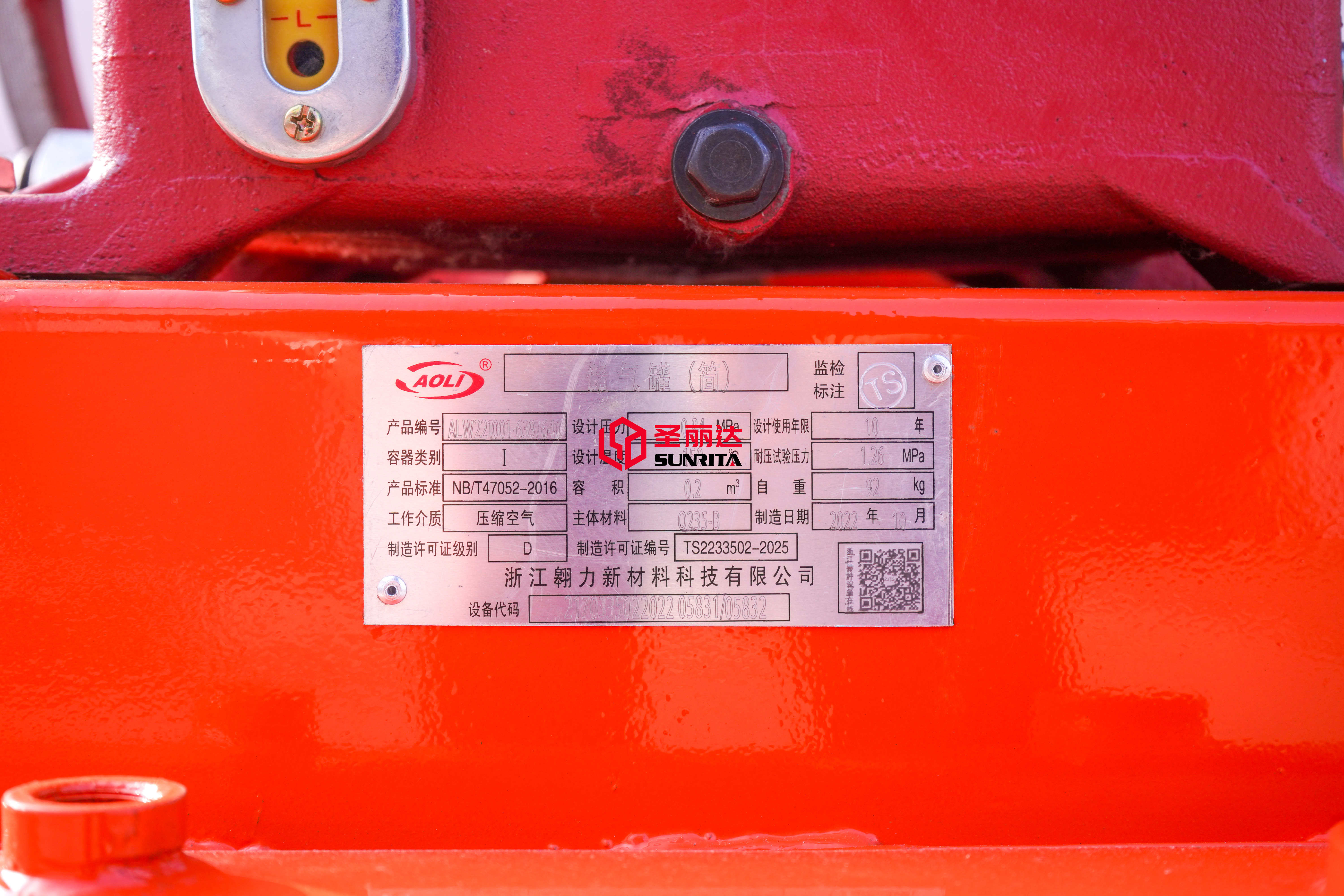

Product Detail Images

Core Structure & Operational Stability

The heavy-duty piston air compressor adopts a professional reciprocating piston structure, featuring an integrated crankshaft and high-precision cylinder assembly for stable air compression performance. Designed as a positive displacement air compressor, it efficiently completes air intake, compression, and exhaust cycles with low operation vibration and stable air output. The whole machine adopts thickened cast iron materials, with wear-resistant piston rings and durable valve plates that greatly extend the service life. This robust structural design enables the industrial piston air compressor to maintain continuous and stable operation in long-hour working scenarios, effectively avoiding pressure fluctuation and ensuring consistent pneumatic power supply for various pneumatic tools.

Harsh Environment Adaptability & Mining Application Performance

Built for tough industrial and mining scenarios, this reciprocating air compressor boasts excellent environmental adaptability, perfectly suited for mining, rock drilling, quarrying, and outdoor construction work. Equipped with an efficient air cooling system and professional dustproof structure, the piston air compressor resists dust, high temperature, and variable outdoor weather conditions. It can steadily drive jackhammers, rock drills, and pneumatic breakers in dusty mine sites and remote construction areas. With reliable low-failure performance, this mining air compressor supports intermittent and long-time continuous operation, fully meeting the high-intensity air supply demands of field engineering operations.

Energy Saving & Low Maintenance Advantages

This industrial piston air compressor is optimized with energy-saving compression technology, realizing high air displacement with low energy consumption, bringing excellent cost performance for industrial users. Different from complex screw compressors, the reciprocating air compressor features a simple and mature mechanical structure with fewer vulnerable parts and a highly accessible maintenance design. Daily maintenance such as oil replacement and parts inspection can be completed quickly without professional skills. The durable configuration reduces long-term operating costs and downtime. It is an ideal cost-effective air compressor for small and medium factories, mining sites, and construction engineering projects worldwide.

Portable Design & Wide Application Versatility

Designed with a flexible mobile structure, the portable piston air compressor is equipped with sturdy walking wheels and a stable frame, enabling convenient movement and on-site layout in complex working environments. It supports customized pressure and air volume configurations, covering multiple working demands from mining rock breaking to municipal construction and mechanical equipment pneumatic supply. Whether for off-grid field operations or fixed workshop air supply, this reciprocating piston air compressor delivers stable and efficient compressed air output. Its strong versatility, easy operation, and high safety make it a mainstream pneumatic equipment widely recognized in the global industrial and mining industry.
