S250 Air Compressor Rock Drill For Mine

Short Description:

The Secoroc 250 is a highly efficient pusher leg rock drill. It is mainly used in either rock drilling work such as mining and tun-neling, or in railway, water conservancy construction projects and stone work. It is suitable for wet drilling on hard medium hard rock, or for drilling horizontal or inclined blast holes. Secoroc250 can be equipped with pusher leg Secoroc250JL.


  • Quick Details:
  • Type: S250 Air Leg Rock Drill, Core Drilling Rig: Power Type: Air Compression
  • Place of Origin: Hebei, China: Brand Name: Shenli
  • Usage: Mining rock drills: Voltage: 0
  • Dimension(L*W*H): 84*48*22(cm): Weight: 45 KG
  • Warranty: 1 Year: Marketing Type: New Product
  • Machinery Test Report: Provided: Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year: Core Components: Machine head, cylinder, handle
  • Drilling Diameter: 50mm, 32-56mm: Key Selling Points: High Productivity
  • Mobility: Portable air picks: Drilling Depth: 6m
  • Feature: High Drilling Efficiency: Certification: ISO9002
  • Bore(mm): 79.4: Application: Mining,Coal
  • Air ConsumptionM³/bar: 3.7/5.0: Stroke(mm): 73.25
  • Condition: New: Water Connection(mm): 12
    • Download as PDF

    Product Detail

    rock drill

    Product Tags

    Air Leg Rock Drill

    rock drill bit China supplier

    S250 Air Leg Rock Drill

    Secoroc S250 adopts the mature technology of Epiroc，is an advanced air-leg pneumatic rock drill machine nowadays. Because of its higher efficiency, it is especially suitable to be used in the construction of railway, highway, and hydroelectricity. And it is also the best renewal generation products in the metallurgy, coal mining industries and the tunnel excavation.
    Quality
    %

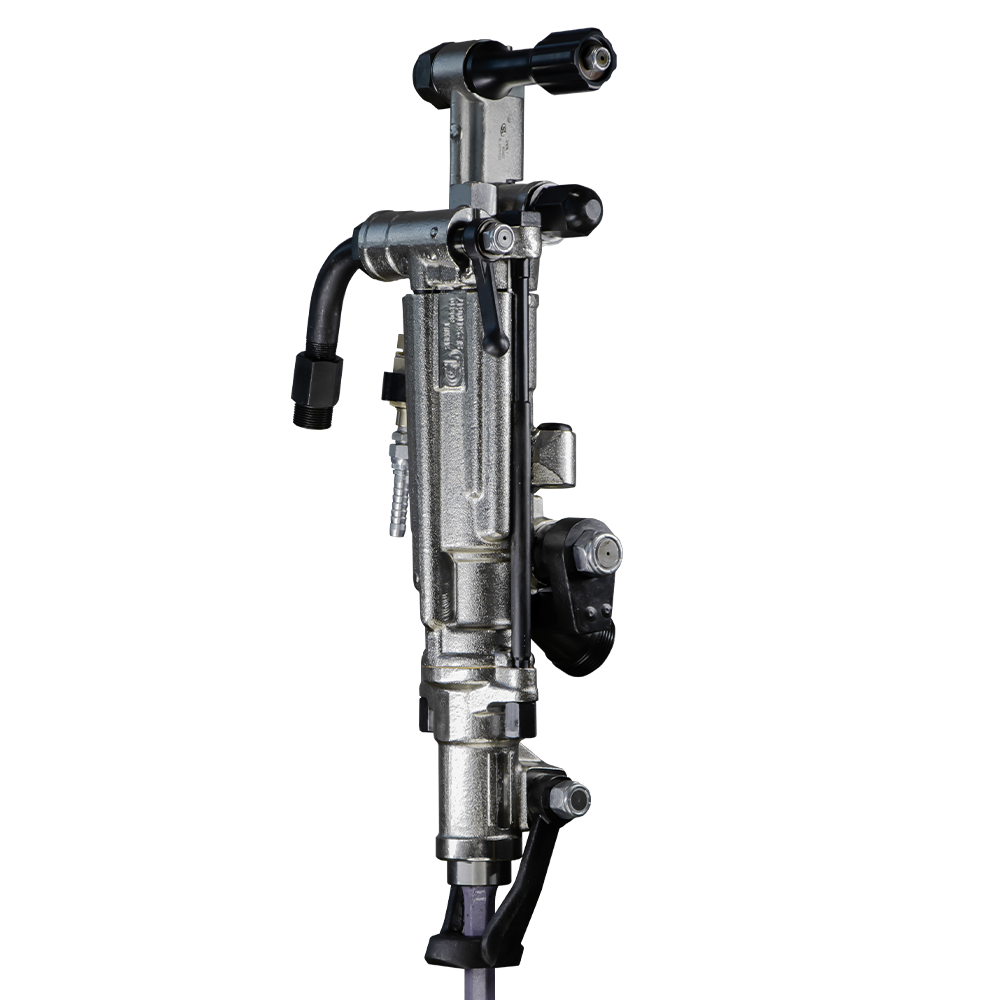

    s250 air leg rock drill 4

    SPECIFICATIONS for S250 pneumatic rock drilling machine with air leg

    Air consumption
    3.7m³/5.0 bar
    Air Connection
    25 mm
    Water Connection
    12 mm
    Piston diameter
    79.4 mm
    Piston stroke
    73.25 mm
    Blows
    2050@5.0 /Min Bar
    Total length
    710 mm
    N.W.
    35Kg
    Air Leg Rock Drill

    The Secoroc 250 is a highly efficient pusher leg rock drill. It is mainly used in either rock drilling work such as mining and tun-neling, or in railway, water conservancy construction projects and stone work. It is suitable for wet drilling on hard medium hard rock, or for drilling horizontal or inclined blast holes. Secoroc250 can be equipped with pusher leg Secoroc250JL.

    (S250 jackleg Drill) has been the preferred choice of miners who demand high performance, superior control and lasting reliability. the S250 jackleg allows operators to drill in confined spaces with challenging drilling directions while providing high drilling speeds and strong torque even at low air pressures. Push leg controls are integrated into the rear end of the rig to maximize safety and comfort. jackleg has a large contact area between the main cylinder components to reduce impact pressure and increase product life.

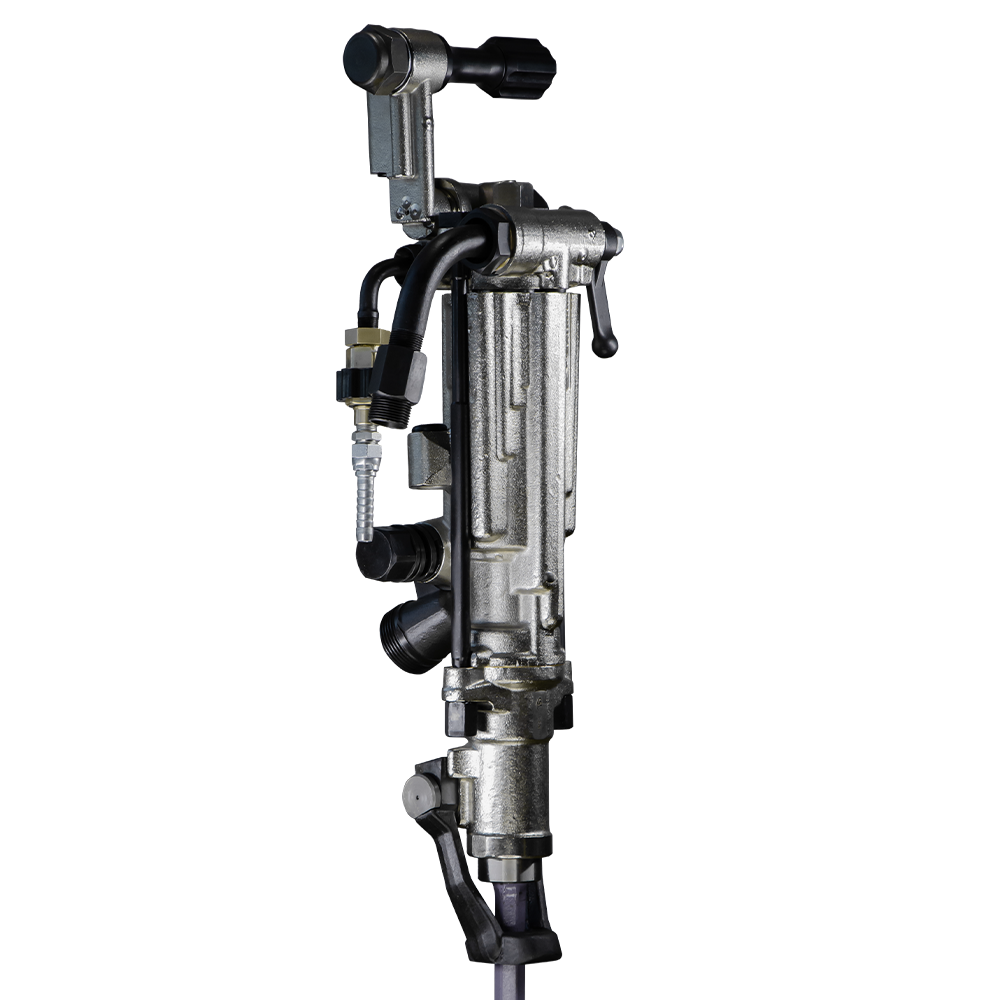

    s250 air leg rock drill 3

    Detailed introduction

    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c yt29s s82

    S250 Air Leg Rock Drill

    S250 Rock Drill is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions.

    S250
    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c yt29s s82..

    S250 Air Leg Rock Drill

    It is suitable for drilling and blasting under various of rocks at any direction angles.This machine could match with short air leg or long air leg.

    Advantages

    DETAIL VIEW

    compressor rock drill yt29a yt28 yt27 s250 y26 y19a ty24c..
    JACK HAMMERS yt29a yt28 yt27 s250 y26 y19a ty24c s82 yt29s
    ROCK DRILL JACK HAMMER yt29a yt28 yt27 s250 y26 y19a ty24c s82 yt29s
    rock drill yt29a yt28 yt27 s250 y26 y19a ty24c Air-leg Oil feeder Drill stem Aiguille Bit head

    We have made hand-held rock drills

    and air-leg rock drills such as y19a, y26

    ty24C, yt27, yt28, yt29a, YT29S, S250, etc.

    PERFECT QUALITY ASSURANCE

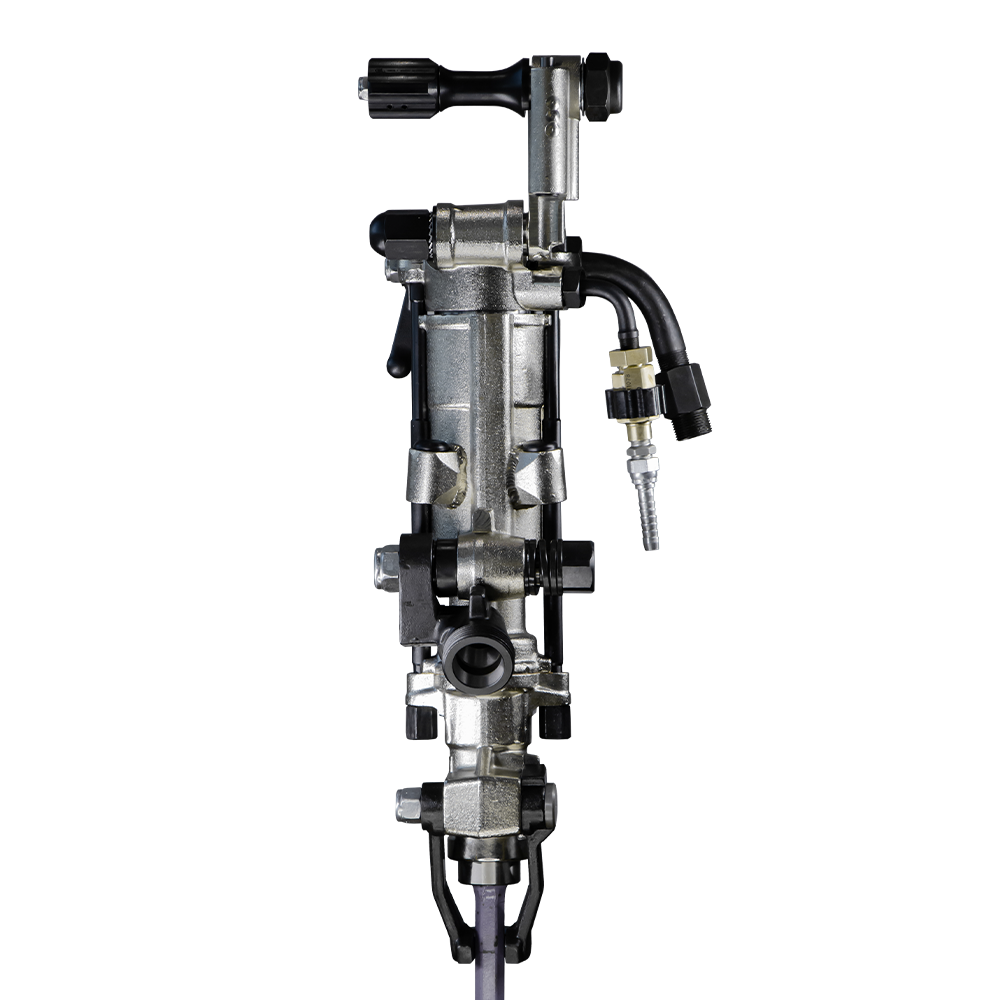

    s250 air leg rock drill 1
