LUY050-7 Altasko Kubota 180cfm 7Bar Handheld Drill Diesel Air Compressor

Short Description:

LUY050-7 diesel mobile screw air compressor (commonly known as 185). LUY050-7 is a classic 5m ³/min, 7bar diesel mobile screw machine launched by LIUTECH (LIUTECH, Atlas Copco Group) for small projects, mines and municipal administration. It focuses on reliable, fuel saving, portable, low-noise pneumatic tools and small rock drilling operations that are suitable for non grid scenarios.


  • Model: LUY050-7
  • Working pressure，bar（psi）: 7（100）
  • Flow, I/s|cfm|m3/min: 83|177|5
  • Noise sound level (at 7m distance, dBA): 70±3
  • Fuel tank capacity,I: 67
  • Compressor oil capacity, I: 8
  • Outlet valves, qty x size: 3xG3/4
  • Engine maker: Kubota
  • Engine model: V1505 T
  • Engine power, Kw: 33
  • Norminal engine speed, rpm: 2950
  • Unloading engine speed, rpm: 1950
  • Engine inspiration: turbo charger
  • Length,mm: 1940
  • Width, mm: 1200
  • Height, mm: 1240
  • Weight, kg: 650
  • Length, mm: 2960
  • Width, mm: 1350
  • Height, mm: 1420
  • Weight, kg: 750
    • Download as PDF

    Product Detail

    rock drill

    Product Tags

    Liutech LUY050-7

    rock drill bit China supplier

    Liutech LUY050-7

    The Liutech LUY050-7 is a portable, oil-injected screw air compressor designed for heavy-duty, off-road, and construction applications. It is powered by a 191kW diesel engine (often utilizing Kubota), offering a free air delivery of 5 cbm/min (180-185 cfm) at 7 bar (100 psi). It features a robust design suitable for mining, road repair, and jackhammer operations.

    For the demolition for building and road maintenance, compressed air is essential on the job site to power the tools. Liutech offers compressor in a wide size of range to fit air flow and pressure requirements of the job — all designed to be robust and reliable to meet the needs of tough, demandingconstruction environments.APPLICATIONS: On construction sites, Liutech portable air compressors are typically used to power hand-held pneumatic breakers, jack hammers, air guns, shotcrete equipment, pneumatic wrenches, nut runners and more. They are commonly used in applications such as building sites, road maintenance, bridges, tunnels, concrete pumping and shotcreting.Dimension stone quarries, stabilization projects and foundation excavation demand equipment that can stand up to hot, dusty working conditions. Liutech compressors are designed to do just that. High-performance engines deliver the power margin to work in tough environments. Large fuel tanks allow uninterrupted operation for a full work shift. Plus, an oversized cooler pack helps ensure reliable performance in high ambient temperatures. The compressor controller, plus electrotonic engine, makes the user experience more easier, more convenient and faster. Improving working efficiency.

    Quality
    %
    柳富达185 5
    Model Name LUY050-7 LUY120-14
    Working pressure, bar(psi) 7 (100) 14 (205)
    Flow, l/s|cfm|m3/min 83|177|5 200|424|12
    Noise sound level (at 7m distance, dBA ) 70±3 83±3
    Fuel tank capacity, l 67 180
    Compressor oil capacity, l 8 23
    Outlet valves, qty x size 3xG3/4 1*G2 1*G3/4
    Engine exhuast emission / Tier 3
    Engine maker Kubota Yuchai
    Engine model V1505T YC6J175-H301
    Engine power, Kw 33 129
    Norminal engine speed, rpm 2950 2300
    Unloading engine speed, rpm 1950 1400
    Engine inspiration torbue charger torbue
    Length, mm 2960 4322
    Width, mm 1350 1950
    Height, mm 1420 1980
    Weight, kg 750 2250

    Main Features:
    High reliability: more than 90% of the spare parts of the whole machine are from Atlas Copco, which can adapt to the harsh outdoor construction environment.
    Easy to maintain: The design is intuitive, easy to maintain on a daily basis, and can significantly reduce downtime and operating costs.
    Strong maneuverability: Adopting a single axle suspension trailer design, it is convenient for rapid movement and deployment between construction sites.
    Low fuel consumption: Equipped with a stepless automatic adjustment system, the engine speed is automatically adjusted according to the actual gas consumption, saving fuel.

    Common application scenarios:
    This model is typically recommended for the following tasks:
    Drive handheld pneumatic crushers, air shovels, and pneumatic wrenches.
    Small sandblasting operations and pipeline rust removal.
    Water well drilling and small down the hole drilling rig matching.
    Application Areas
    微信图片_20260228165950_241_9

    APPLICATIONS: Liutech compressors provide portable power for pneumatic rock drills, block cutters, dewatering pumps and hand-held pneumatic breakers. They are suited for stabilization projects on roads and building sites, as well as basement and foundation excavation for apartment blocks and other buildings.The most advanced nose technology、Efficient air filtration system、Excellent cooling capacity、Advanced electronic fuel injection engine、Multiple fuel filters、Non-polar speed regulation、Efficient and reliable post-processing system.
    Optional: Air pre filtration device/Cold start package/Aftercooler/Dual pressure switching/EKON easy control system/GPS remote control
    Easy to transport: Built in flexible shock absorbers+well-designed walking system

    Product Detail Images

    DSC00271

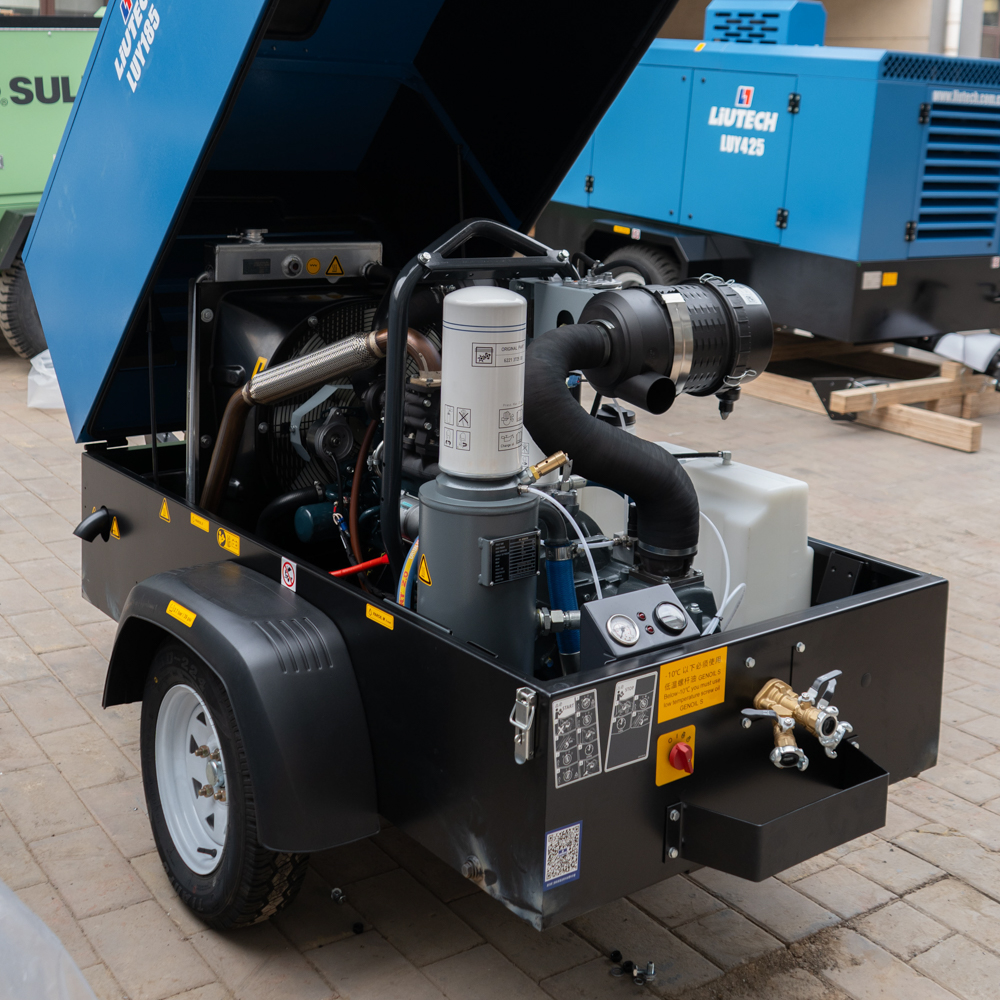

    Advanced Engine System





    When you need portable power for jobsite, you can count on Liutech compressors. Every model in the line shares the same dependable design and smart features to enhance your productivity. These units are an excellent partner for pneumatic tools, including rock drills, breakers, air guns, wrenches, dewatering pumps, pneumatic hammer drills and abrasive blasting
    equipment. They can also provide backup power on the job site in the event of power outages and electrical failures.Each model is equipped with a powerful engine and is placed under a sturdy casing. The engine adopts an advanced electronic injection system, which has better performance, higher power output, and more environmentally friendly characteristics.

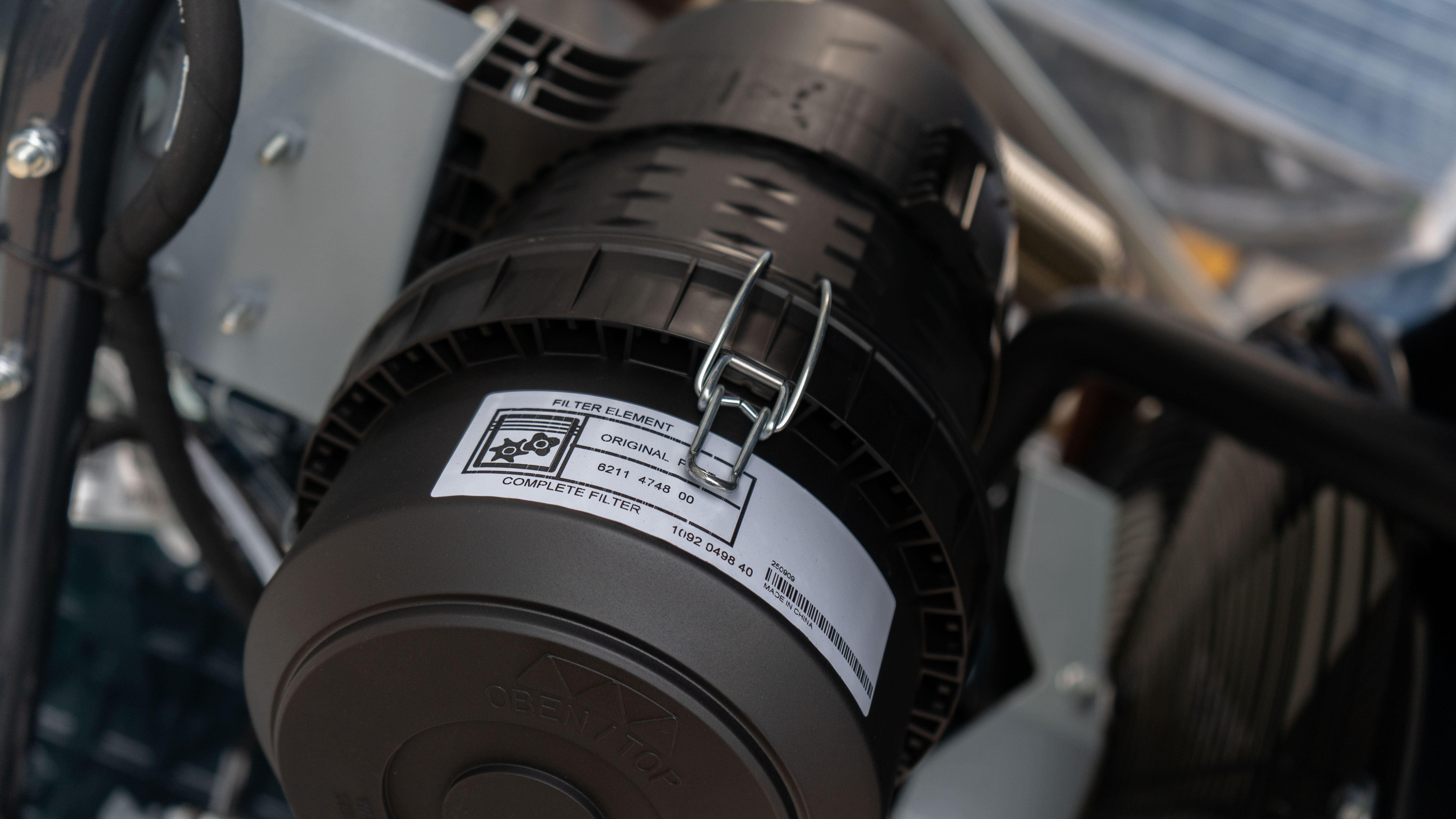

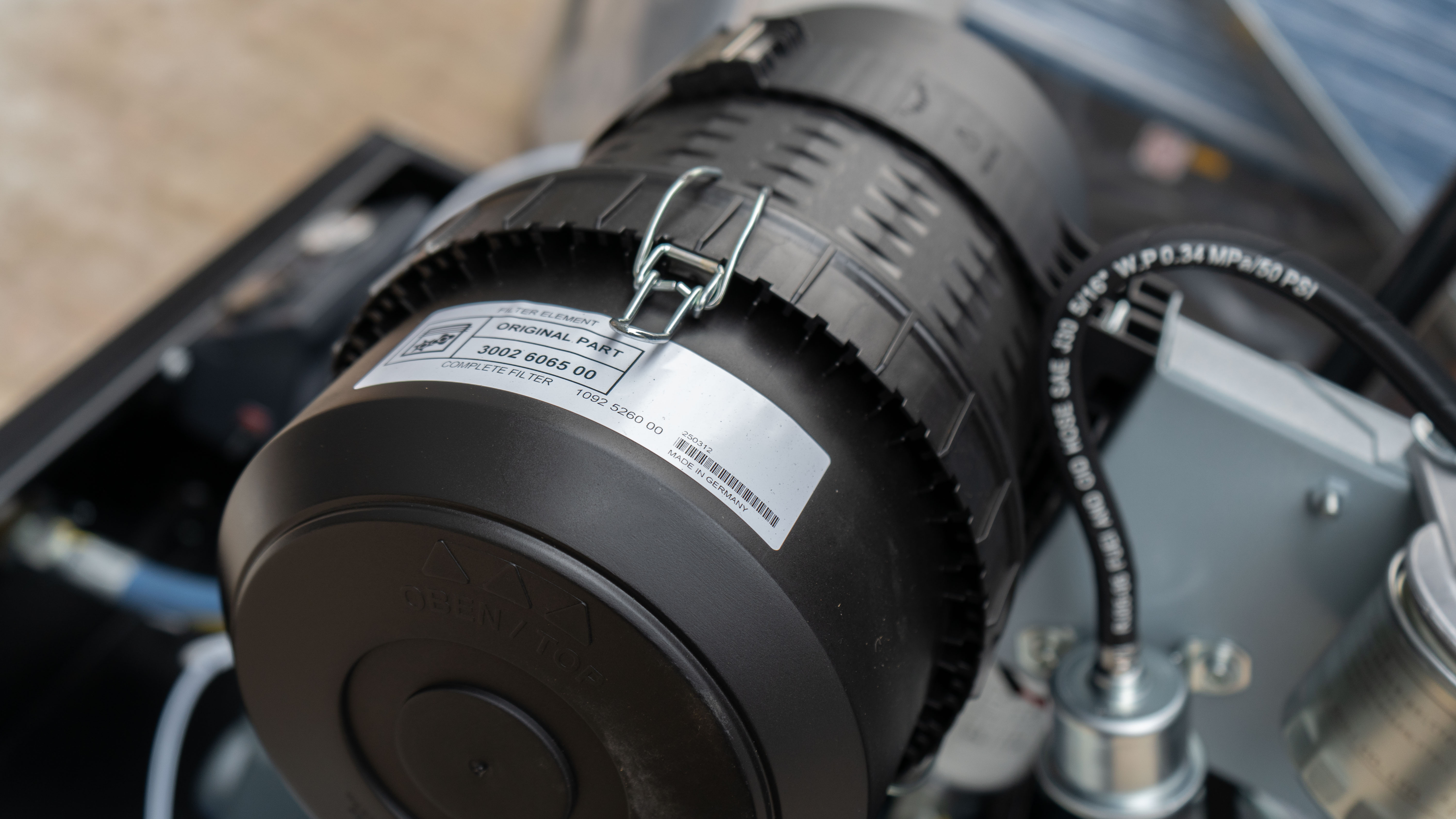

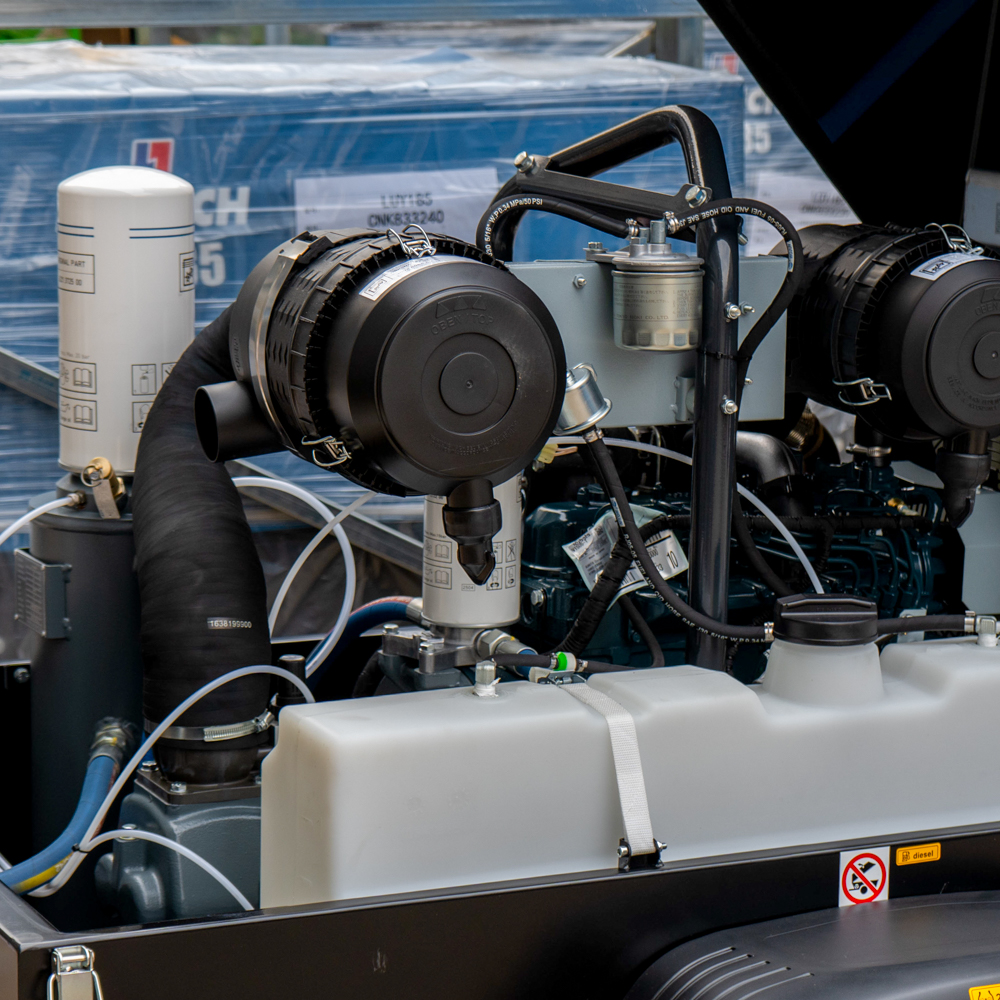

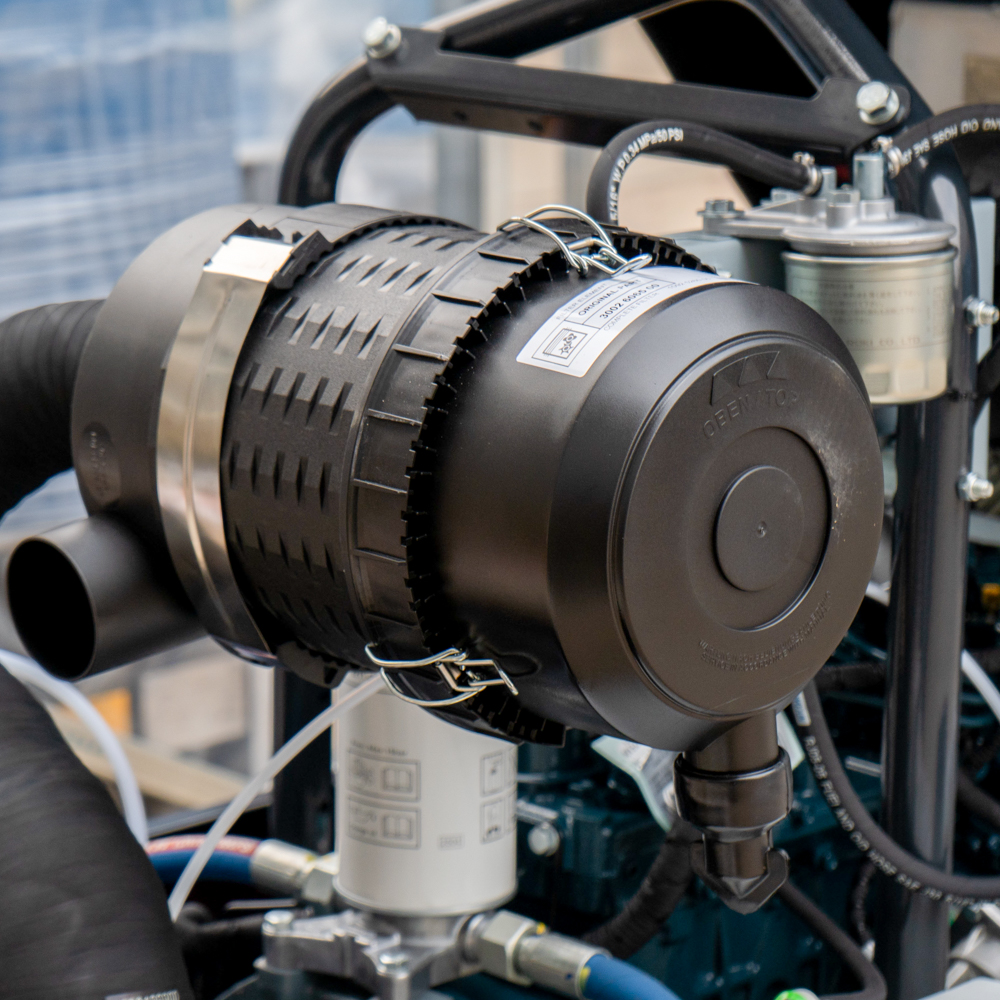

    Efficient Air Filtration System





    This high-performance, three-stage filtering air filter can effectively prevent dust and particles from entering the nose and engine, ensuring that the power core operates in a good environment. The indicator light on the air filter will automatically remind you when you need to replace the filter element, saving you the maintenance steps.

    DSC00247
    DSC00245

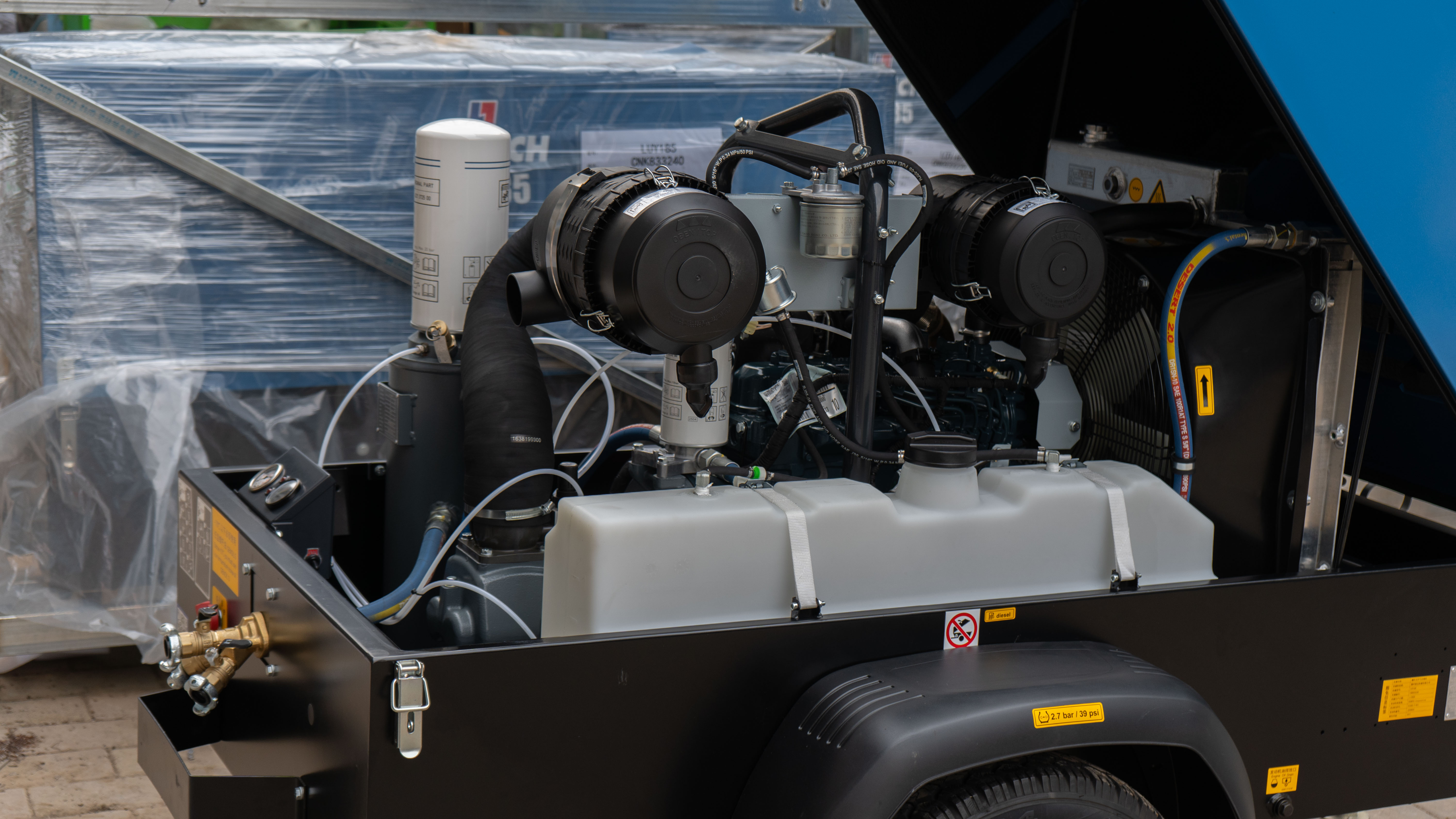

    Excellent Cooling Capacity And Infinite Speed Regulation Capability







    This device can operate normally in a high temperature environment of+50 degrees Celsius. The fixed controller and air valve will infinitely adjust the engine speed according to the actual needs of the customer to achieve the lowest fuel consumption of the equipment. Excellent user feedback with low energy consumption, low operating costs, and low noise. Built in wrap around shock absorber and well-designed walking system, making it easy to move and transport equipment on site.

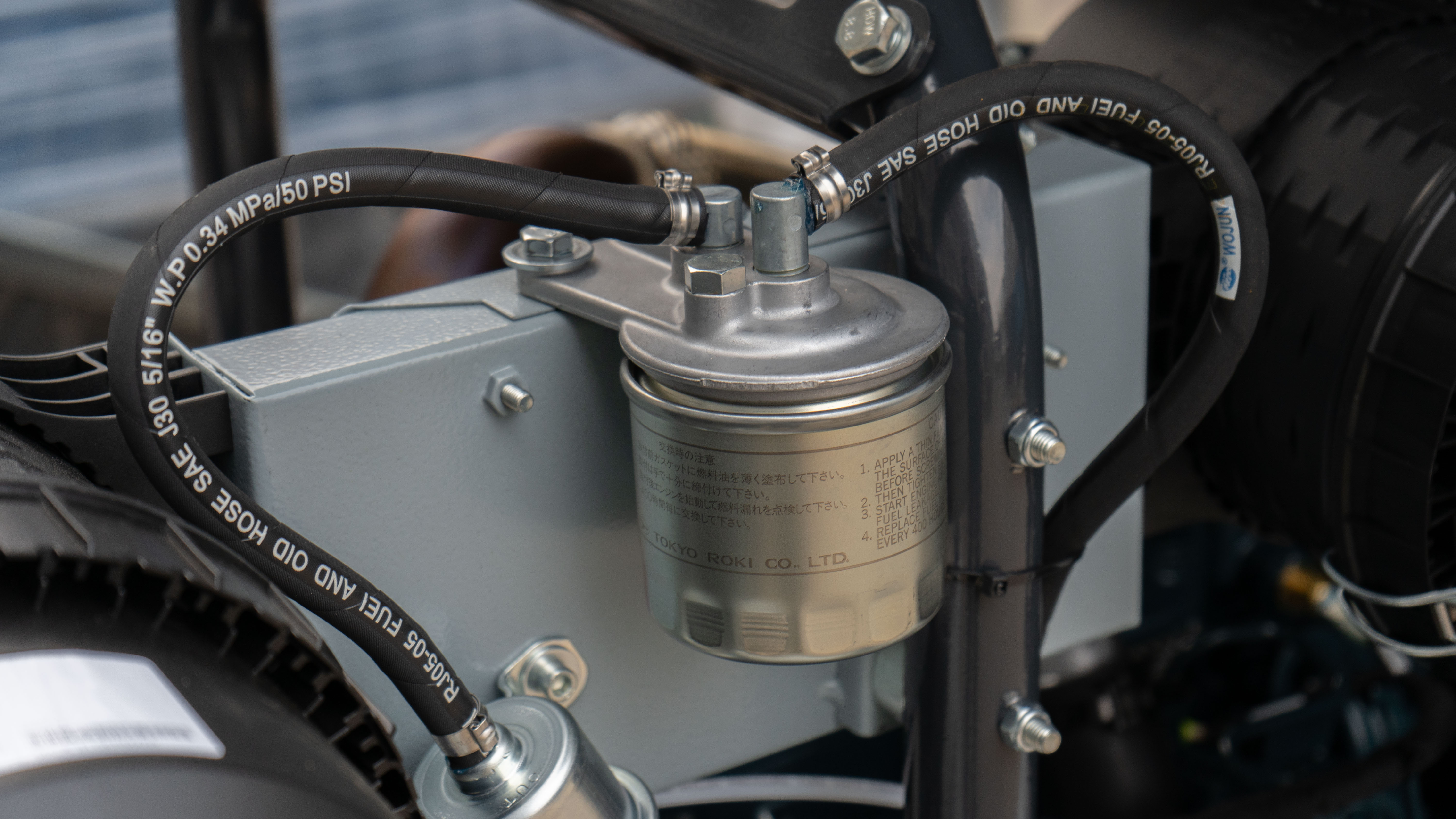

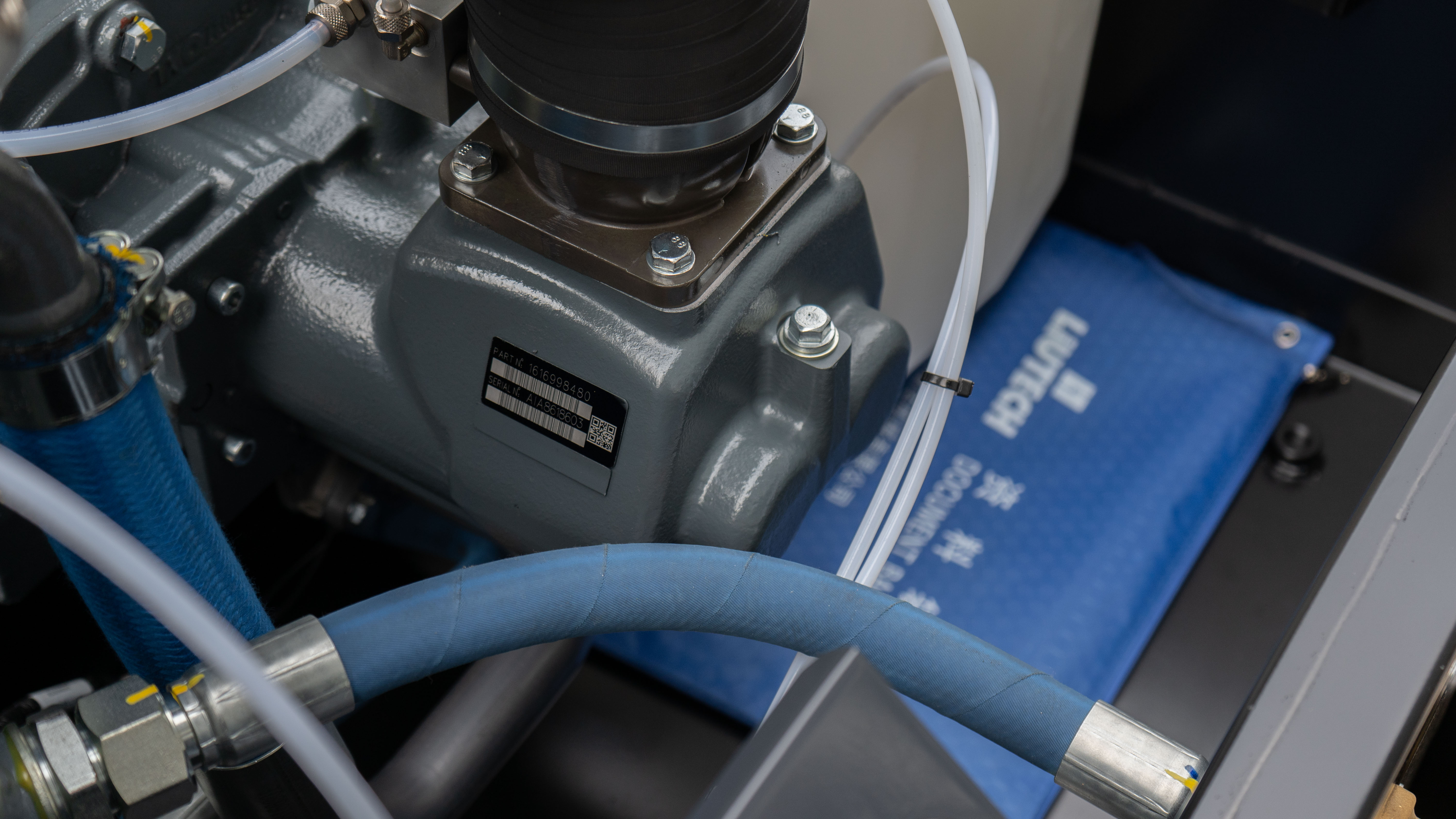

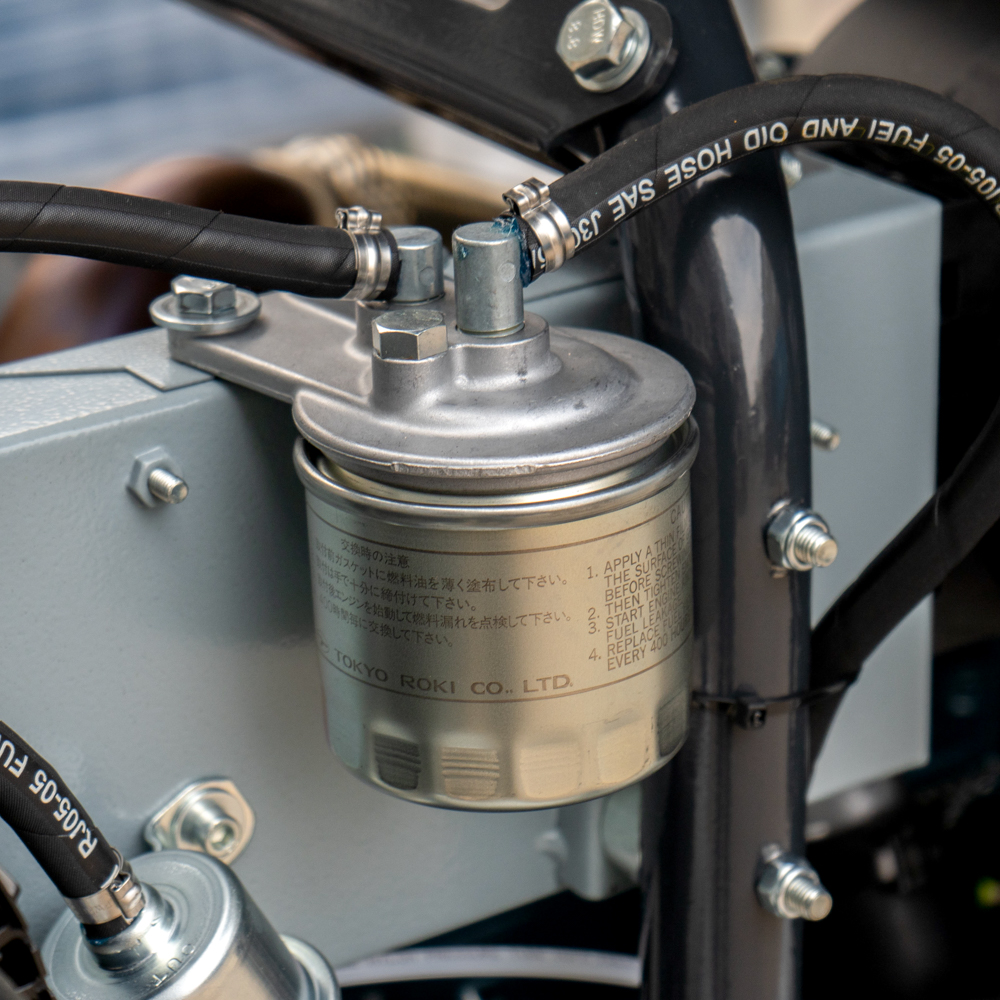

    Cutting Edge Cylinder Dead Manufacturing Technology And Multiple Fuel Filters







    The rotor and streamlined components can minimize component wear while ensuring high compression efficiency, thereby extending the service life of the machine head. Efficient, multi-stage fuel filters and moisture separators can effectively prevent magazines and moisture from entering the engine, extending its service life.

    DSC00249

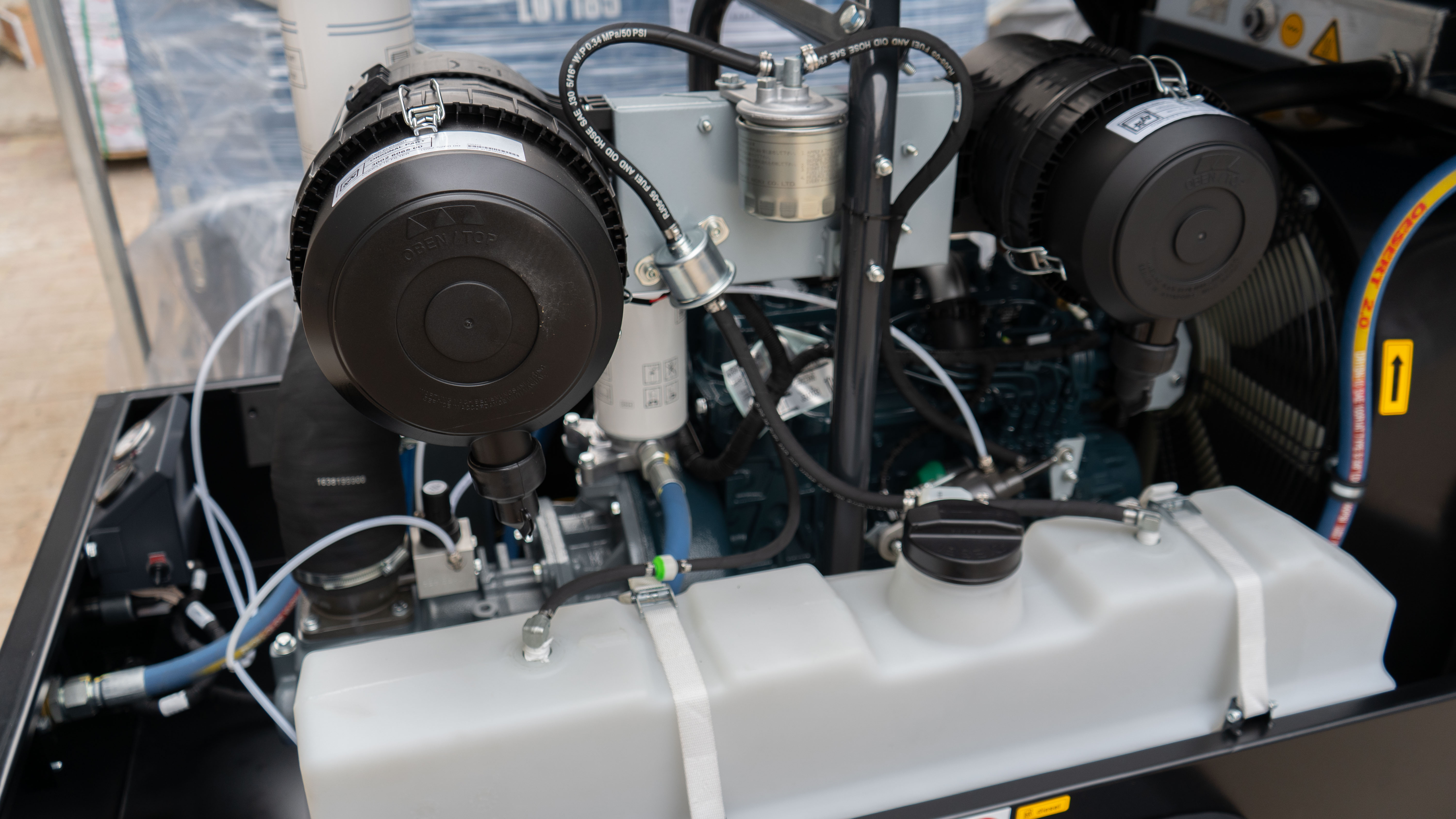

    DETAIL VIEW

    DSC00245
    DSC00249
    DSC00253
    DSC00264
    DSC00265
    DSC00260
    DSC00249
    DSC00261
