Y20LY
High quality Y20LY Hand held Rock Drills, powered by pneumatic drive from air compressor, and used for small-hole drilling such as granite, marble, limestone quarrying. And for small size construction, and demolition work, hole size scope 30mm-40mm, match Tapered Drill Rods, Tapered Drill Bits, or Integral Drill Rods together for a drilling use. Y20LY hand jack hammer is a light-duty drilling tools with stronger and stable drilling performance, and easy to use, simple repair, price is very competitive, so still popular in stone quarry market for most of following countries such as India, Africa, even Saudi Arabia.
Y20LY hand-held pneumatic leg dual drill is a kind of light rock machinery, which can be used in secondary blasting in mines and quarries as well as in stone work. FT100 pneumatic leg can also be used as pneumatic leg drill to drill horizontal or inclined holes in small holes. Y20LY rock drill is an ideal light rock drill because of its small gas consumption, light weight, large torque and simple structure. It can be used with a small air compressor and is easy to operate and maintain.
Features:
1. It has the characteristics of low air consumption, light weight, high torque, and simple structure.
2. Mainly used for drilling, secondary blasting and other work in small-scale mines, mountainous road construction, railways, water conservancy and other projects.
3. Use with air compressors of 1.5 cubic meters or more.
Y20LY hand-held rock drill is a kind of light and practical rock drilling machinery.
Capable of being performed both dry and wet drilling under the medium and hard rocks (f=8-18)；
Can drill downwards with hand towards horizontal or inclined；
Can be matched with FT100 air leg and FY200B oil feeder to do drilling works in various mines, quarries, capital construction of farmland, blasting for construction roads in mountain areas or other projects.

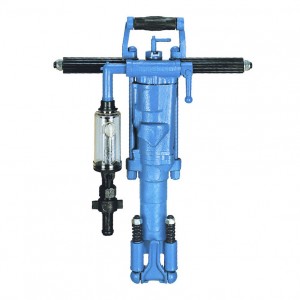

Y20LY Hand held rock drill
|
Y20LY |
|
|
Product Model |
Y20LY |
|
Weight(kgs) |
18 |
|
Length(mm) |
609 |
|
Size Of Drill Shank(mm) |
H22X108±1 |
|
Rocking Diameter(mm) |
34-40 |
|
Piston Stroke(mm) |
50 |
|
Working Air Pressure(MPa) |
0.4 |
|
Impact Frequency(HZ) |
30 |
|
Air consumption(L/S) |
≤21.5 |
|
Trachea Inner Diameter(mm) |
16 |
|
Water Pipes Inner Diameter(mm) |
8 |
| Product Name: | Y20LY forging air drifter power jack hammer portable rock drill | ||||||
| Description: | The series of pneumatic rock drills are mainly used in mine, railway, water irrigation works and quarrying works to drill holes. | ||||||
| It's suitable for wet or dry drilling in all kinds of rocks. | |||||||
| Drilling direction: | Hand held type for perpendicular; Air leg type for titling direction | ||||||
| Advantage: | Light weight & convenient operation, | ||||||
| Low consumption & long life parts, | |||||||
| High efficiency & fast drilling velcocity. | |||||||
| Spare parts | Integral drill rod, Plug hole drill rods, Tapered/threaded drill rods, | ||||||
| Tapered/threaded drill bits (button bits, chisel bits, cross bits) | |||||||
Detailed introduction
Y20LY Hand held rock drill
Advantage: save energy and high efficiency strong impact energy low vibration easy handling low noise wet drilling easy cleaning air /water holes spare parts easily purchasing
Y20LY Hand held rock drill Tapered drill rod
Tapered drill rod,another name called taper rod, tapered drill steels, This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end. Tapered steel lengths available from 0.6 mto 3.6 m in length—are measured from the collar to the bit end
