As a professional manufacturer, we are willing to provide you with high-quality G7 TCA-7 portable pneumatic crushers. SHENLI, we will provide you with the best after-sales service and fast delivery.

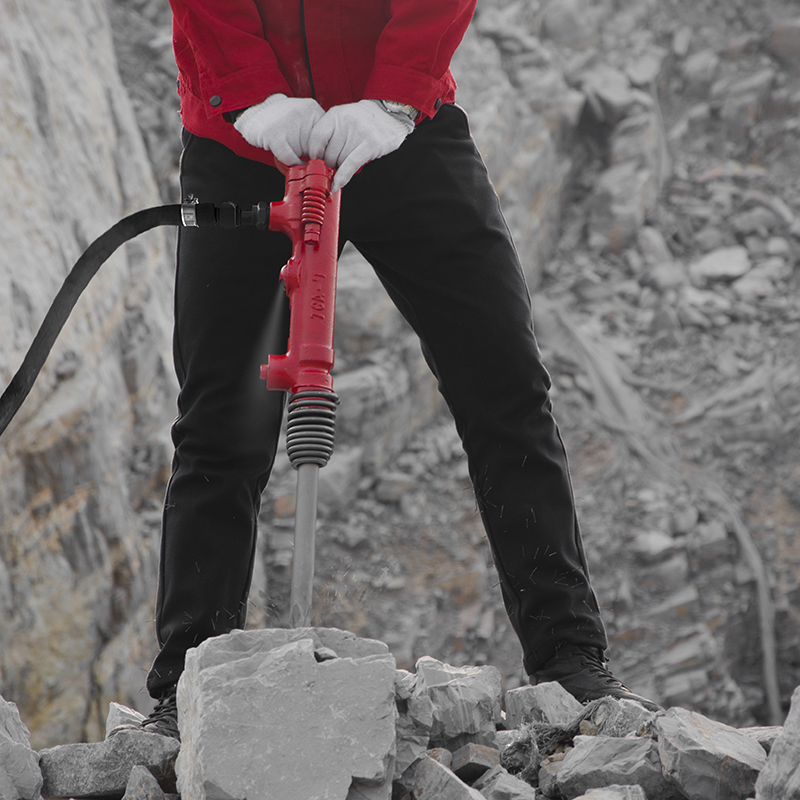

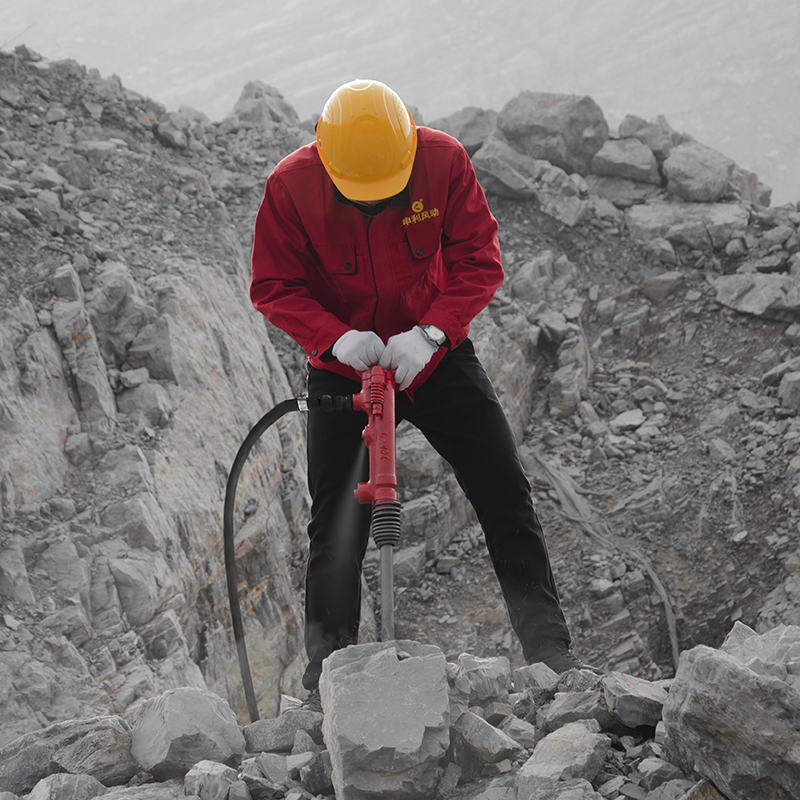

The G7 TCA-7 portable pneumatic crusher is a small crushing tool developed based on the use and absorption of Japanese TOKU technology, powered by compressed air. It has the characteristics of light weight, easy use, and automatic start stop (contact start, compression stop) during operation. In coal mining, excavation of soft rock, excavation of column base pits, and opening of drainage pits; Broken concrete and frozen soil in construction and installation technology, as well as construction operations in the molding industry; Impact motion is widely used in mechanical equipment engineering, such as crankshaft installation.
| Parameter/name | tca-7 | tcd-20 | rb777 | tpb-40 | tpb-60 | tpb-90 |
| Piston diameter | 35mm | 42.85 | 57mm | 44mm | 57.15mm | 66.67mm |
| Piston stroke | 120mm | 60mm | 189mm | 146mm | 100mm | 152mm |
| Percussive frequency | 1250 B.P.M | 2000 B.P.M | 18.3 Hz | 1050 B.P.M | 1400 B.P.M | 1400 B.P.M |
| N.W | 7.2kg | 10kg | 37kg | 18kg | 30kg | 42kg |
| Length | 465MM | 520MM | 733MM | 660MM | 645MM | 723MM |
| Air consumption | 1.0m³/min | 1.1 m³/min | 0.63Mpa | 1.6 m³/min | 2.0 m³/min | 2.2 m³/min |
| Tracheal diameter | 19 | 19 | 19 | 19 | 19 | 19 |
| bit head size | R26*80 | R26*80 | R32*152 | R25*108 | R32*152 | R32*152 |
TCA-7
G series pneumatic hammer splitter is powered by compressed air which is decentralized in turn to both ends of the cylinder by the tubular distributing valve.
AIR PICK
TCA-7 portable impact air pick/industrial pneumatic tools use Japan's East air technology, is compressed air-driven small crushing tools
SHENLI
The impact hammer reciprocating motion strike onto the shank end of the point rod, which will be drilled into the rock, and break it into pieces.
TCA-7 AIR PICK
Breaking tools
TCA-7 G7 jack hammer breakerair pick mini rock drill machine
It’s light and easy to operate, crushing work automatically stop working after the characteristics. Widely used in coal
mining, mining soft rock, planer foot pit, open ditch, construction and installation works broken concrete, frozen soil, casting
industry construction operations
NO.1>
TCA-7 AIR PICK

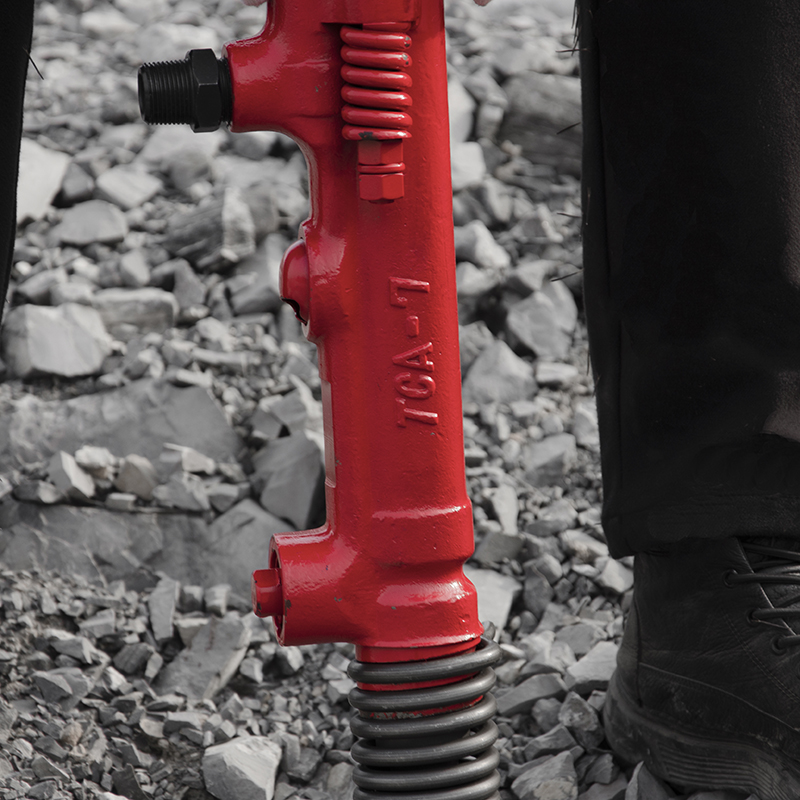

Details show - Trigger
After inserting the pickaxe braze there is a trigger switch in the braze tail part, press the machine trigger, the crusher starts to work, light weight, easy to operate, and automatically stop working after breaking the workpiece.
<NO.2
TCA-7 AIR PICK
Details show-Air Connection Tube
TCA-7 small crusher connected to the air compressor installed pickaxe braze press machine to work, with light weight and high efficiency, can quickly crush, is a good helper for you International common accessories, factory direct sales
NO.3>
